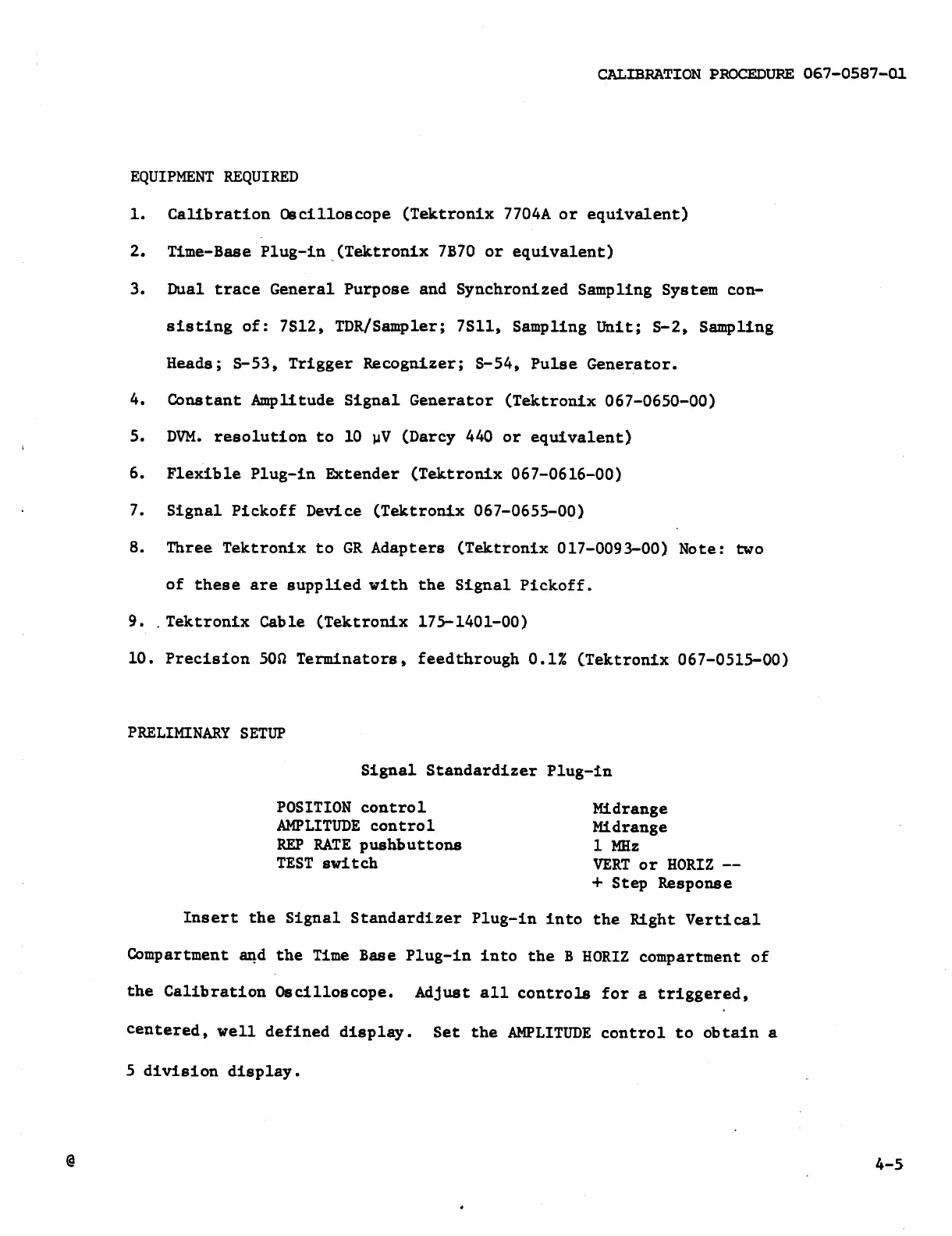

CALIBRATION PROCEDURE 067-0587-01
EQUIPMENT REQUIRED
1.
2.
3.
10.
Calibration Oscilloscope (Tektronix 7704A or equivalent)
Time-Base Plug-in (Tektronix 7B70 or equivalent)
Dual trace General Purpose and Synchronized Sampling System con-
sisting of: 7812, TDR/Sampler; 7511, Sampling Unit; S-2, Sampling
Heads; S-53, Trigger Recognizer; S-54, Pulse Generator.
Constant Amplitude Signal Generator (Tektronix 067-0650-00)
DVM. resolution to 10 ywV (Darcy 440 or equivalent)
Flexible Plug-in Extender (Tektronix 067-0616-00)
Signal Pickoff Device (Tektronix 067-0655-00)
Three Tektronix to GR Adapters (Tektronix 017-0093-00) Note: two
of these are supplied with the Signal Pickoff.
. . Tektronix Cable (Tektronix 175-1401-00)
Precision 502 Terminators, feedthrough 0.1% (Tektronix 067-0515-00)
PRELIMINARY SETUP
Signal Standardizer Plug-in
POSITION control Midrange
AMPLITUDE control Midrange
REP RATE pushbuttons 1 MHz
TEST switch VERT or HORIZ --
+ Step Response
Insert the Signal Standardizer Plug-in into the Right Vertical
Compartment and the Time Base Plug-in into the B HORIZ compartment of
the Calibration Oscilloscope. Adjust all controls for a triggered,
centered,
well
defined
display.
Set
the
AMPLITUDE
control
to
obtain
a
5 division display.
4-5
