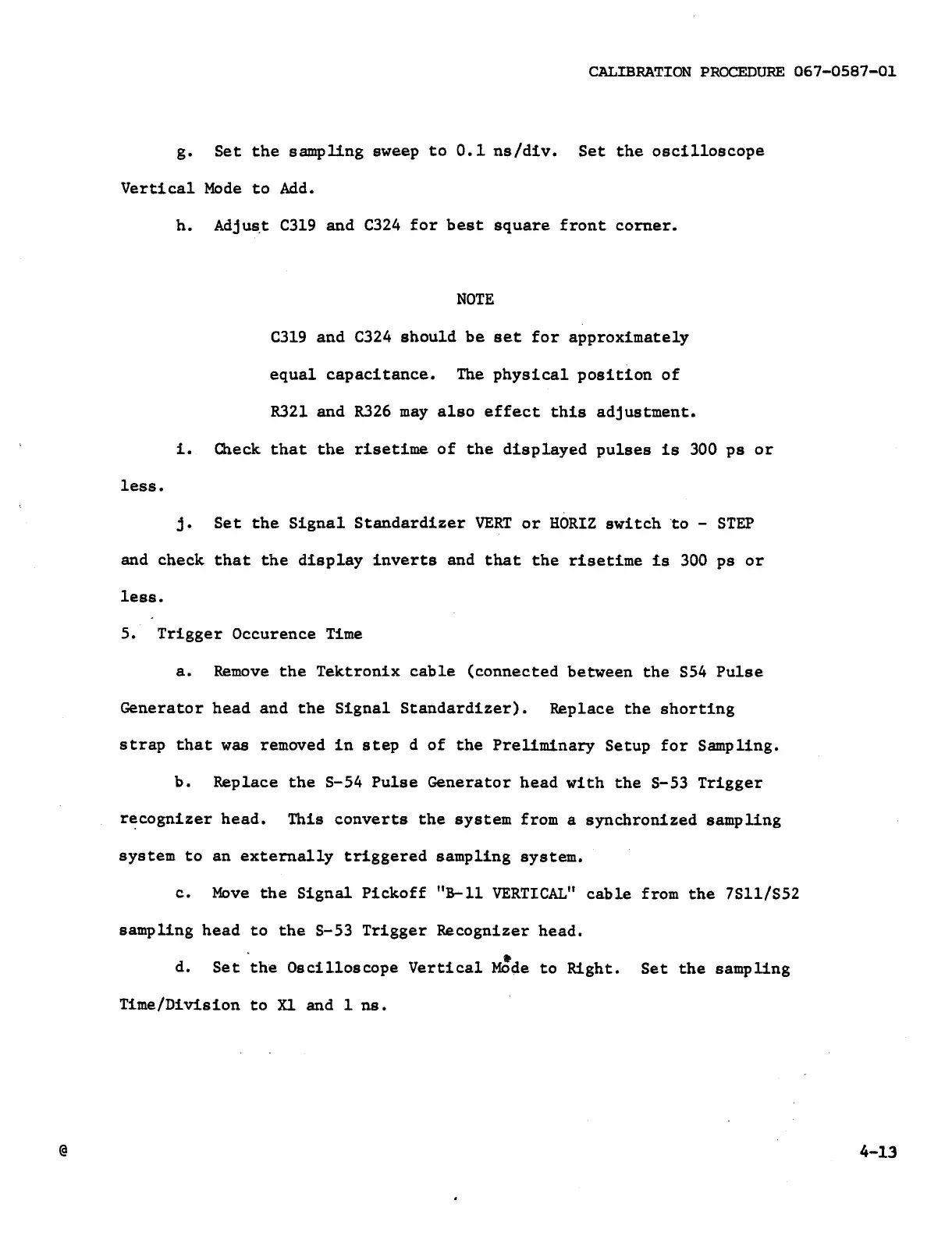

CALIBRATION PROCEDURE 067-0587-01
g. Set the sampling sweep to 0.1 ns/div. Set the oscilloscope
Vertical Mode to Add.
h. Adjust C319 and C324 for best square front cormer.
NOTE
C319 and C324 should be set for approximately
equal capacitance. The physical position of
R321 and R326 may also effect this adjustment.
i. Check that the risetime of the displayed pulses is 300 ps or
less.
3. Set the Signal Standardizer VERT or HORIZ switch to - STEP
and check that the display inverts and that the risetime is 300 ps or
less.
5. Trigger Occurence Time
a. Remove the Tektronix cable (connected between the S54 Pulse
Generator head and the Signal Standardizer). Replace the shorting
strap that was removed in step d of the Preliminary Setup for Sampling.
b. Replace the S-54 Pulse Generator head with the S-53 Trigger
recognizer head. This converts the system from a synchronized sampling
system to an externally triggered sampling system.
c. Move the Signal Pickoff "B-11 VERTICAL" cable from the 7S11/852
sampling head to the $-53 Trigger Recognizer head.
d. Set the Oscilloscope Vertical Mode to Right. Set the sampling
Time/Division to Xl and 1 ns.
4-13
