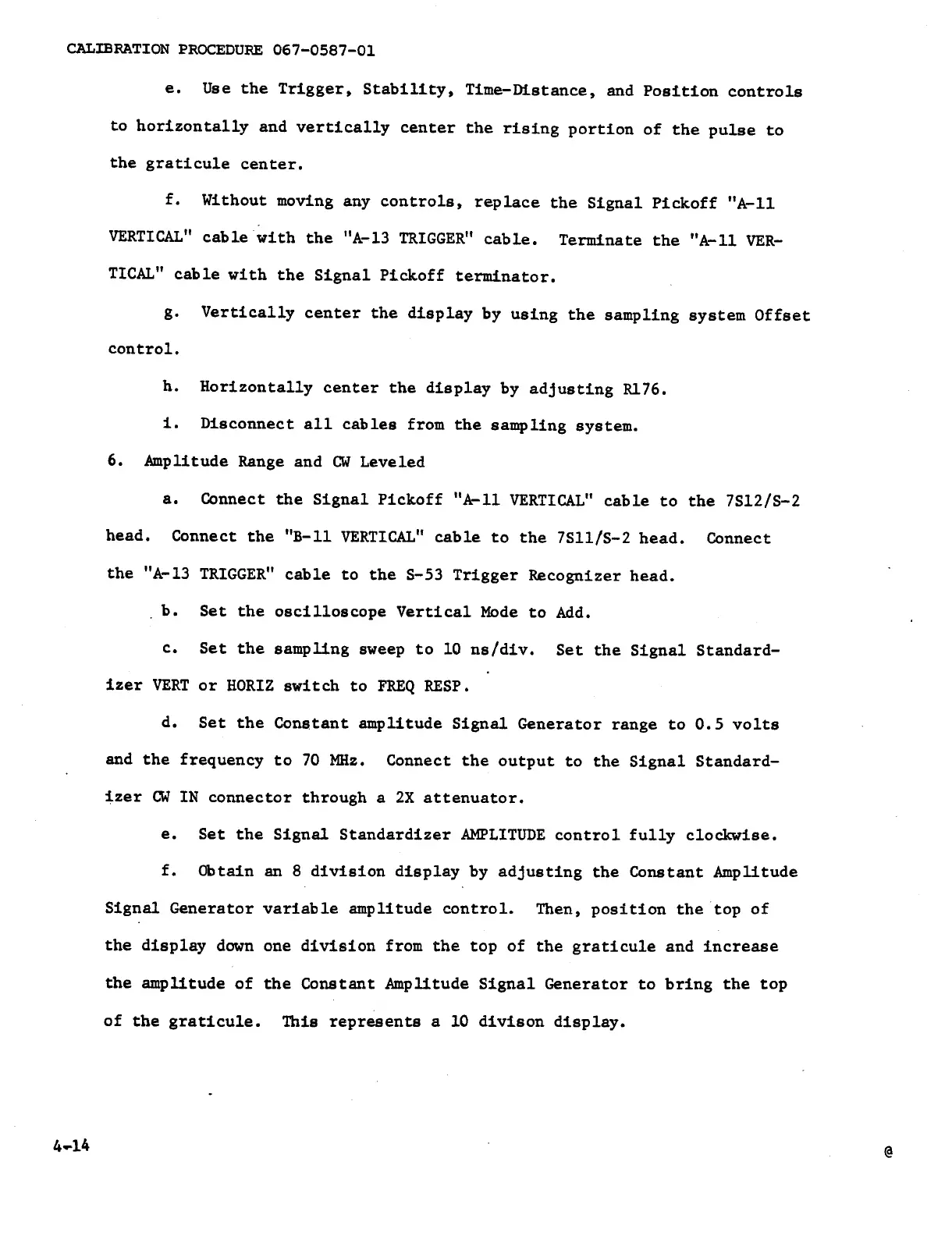

CALIBRATION PROCEDURE 067-0587-01
helA
e.
Use
the
Trigger,
Stability,
Time-Distance,
and
Position
controls
to
horizontally
and
vertically
center
the
rising
portion
of
the
pulse
to
the
graticule
center.
f.
Without
moving
any
controls,
replace
the
Signal
Pickoff
"A-11
VERTICAL"
cable
with
the
"A-13
TRIGGER"
cable.
Terminate
the
"A-11
VER-
TICAL"
cable
with
the
Signal
Pickoff
terminator.
g.
Vertically
center
the
display
by
using
the
sampling
system
Offset
control.
h.
Horizontally
center
the
display
by
adjusting
R176.
1.
Disconnect
all
cables
from
the
sampling
system.
6.
Amplitude
Range
and
CW
Leveled
a.
Connect
the
Signal
Pickoff
"A-11
VERTICAL"
cable
to
the
7812/S-2
head.
Connect
the
'"B-11
VERTICAL"
cable
to
the
7811/S-2
head.
Connect
the
"A-13
TRIGGER"
cable
to
the
S-53
Trigger
Recognizer
head.
_b.
Set
the
oscilloscope
Vertical
Mode
to
Add.
c.
Set
the
sampling
sweep
to
10
ns/div.
Set
the
Signal
Standard-
izer
VERT
or
HORIZ
switch
to
FREQ
RESP.
d.
Set
the
Constant
amplitude
Signal
Generator
range
to
0.5
volts
and
the
frequency
to
70
MHz.
Connect
the
output
to
the
Signal
Standard-
izer
CW
IN
connector
through
a
2X
attenuator.
e.
Set
the
Signal
Standardizer
AMPLITUDE
control
fully
clockwise.
f.
Obtain
an
8
division
display
by
adjusting
the
Constant
Amplitude
Signal
Generator
variable
amplitude
control.
Then,
position
the
top
of
the
display
down
one
division
from
the
top
of
the
graticule
and
increase
the
amplitude
of
the
Constant
Amplitude
Signal
Generator
to
bring
the
top
of the graticule. This represents a 10 divison display.
