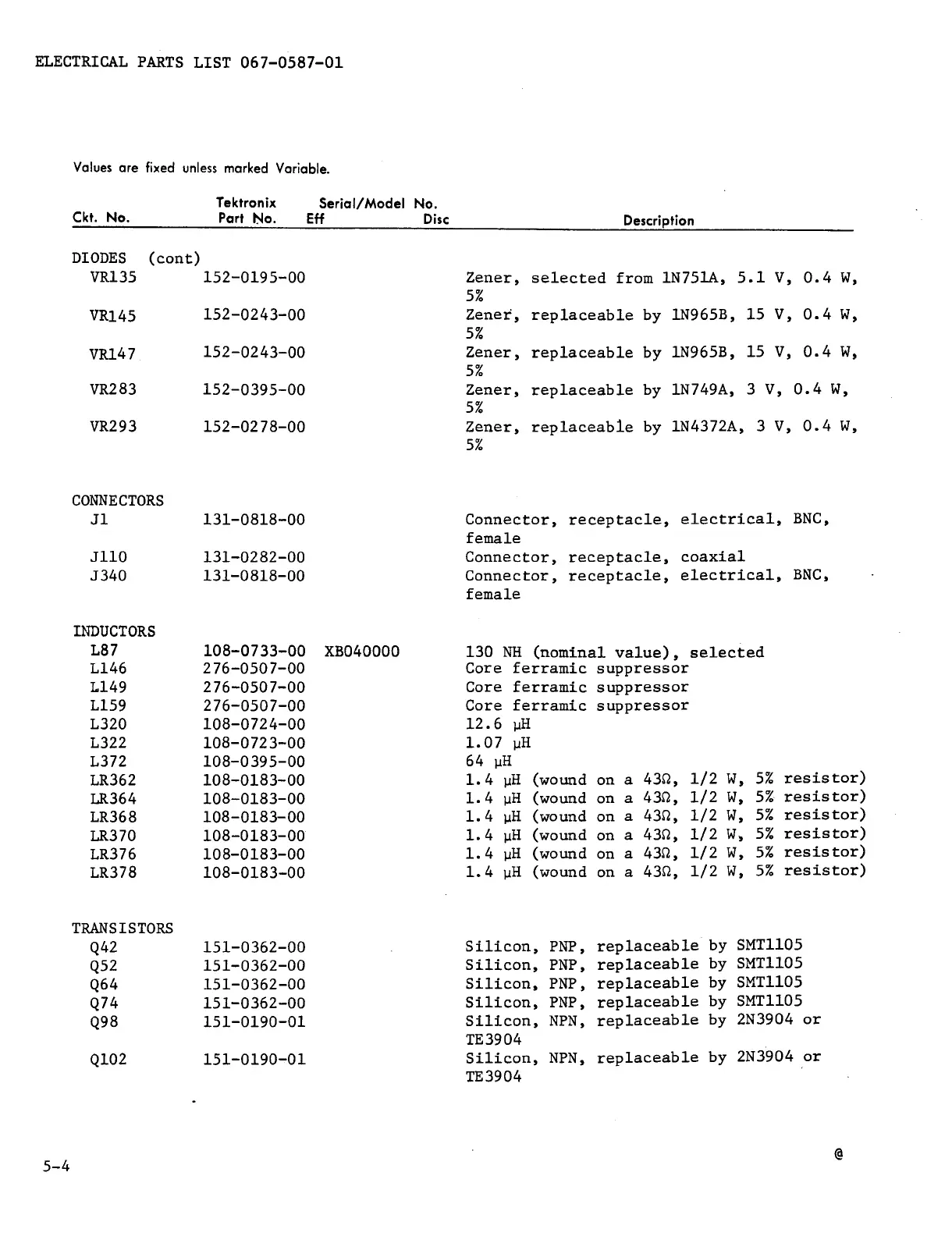

ELECTRICAL PARTS LIST 067-0587-01
5-4
Values are fixed unless marked Variable.
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Dise Description
DIODES (cont)
VR1L35 152-0195-00 Zener, selected from 1N751A, 5.1 V, 0.4 W,
54
VR145 152-0243-00 Zener, replaceable by 1N965B, 15 V, 0.4 W,
54%
VR147 152-0243-00 Zener, replaceable by 1N965B, 15 V, 0.4 W,
5%
VR283 152-0395-00 Zener, replaceable by 1N749A, 3 V, 0.4 W,
5%
VR293 152-0278-00 zener, replaceable by 1N4372A, 3 V, 0.4 W,
5%
CONNECTORS
J1 131-0818-00 Connector, receptacle, electrical, BNC,
female
J110 131-0282-00 Connector, receptacle, coaxial
J340 131-0818-00 Connector, receptacle, electrical, BNC,
female
INDUCTORS .
L87 108-0733-00 XBO40000 130 NH (nominal value), selected
L146 276-0507-00 Core ferramic suppressor
L149 276-0507-00 Core ferramic suppressor
L159 276-0507-00 Core ferramic suppressor
L320 108-0724-00 12.6 HH
L322 108-0723-00 1.07 uH
L372 108-0395-00 64 wH
LR362 108-0183-00 1.4 pH (wound on a 432, 1/2 W, 5% resistor)
LR364 108-0183-00 1.4 pH (wound on a 432, 1/2 W, 5% resistor)
LR368 108-0183-00 1.4 pH (wound on a 432, 1/2 W, 5% resistor)
LR370
108-0183-00
1.4
pH
(wound
on
a
432,
1/2
W,
5%
resistor)
LR376 108-0183-00 1.4 vpH (wound on a 432, 1/2 W, 5% resistor)
LR378 108-0183-00 1.4 upH (wound on a 432, 1/2 W, 54% resistor)
TRANSISTORS
Q42 151-0362-00 Silicon, PNP, replaceable by SMT1105
Q52
151-0362-00
Silicon,
PNP,
replaceable
by
SMT1105
Q64 151-0362-00 Silicon, PNP, replaceable by SMT1105
Q74 151-0362-00 Silicon, PNP, replaceable by SMT1105
Q98
151-0190-01
Silicon,
NPN,
replaceable
by
2N3904
or
TE3904 .
Q102
151-0190-01
Silicon,
NPN,
replaceable
by
2N3904
or
TE3904
@
