Values are fixed unless marked Variable.

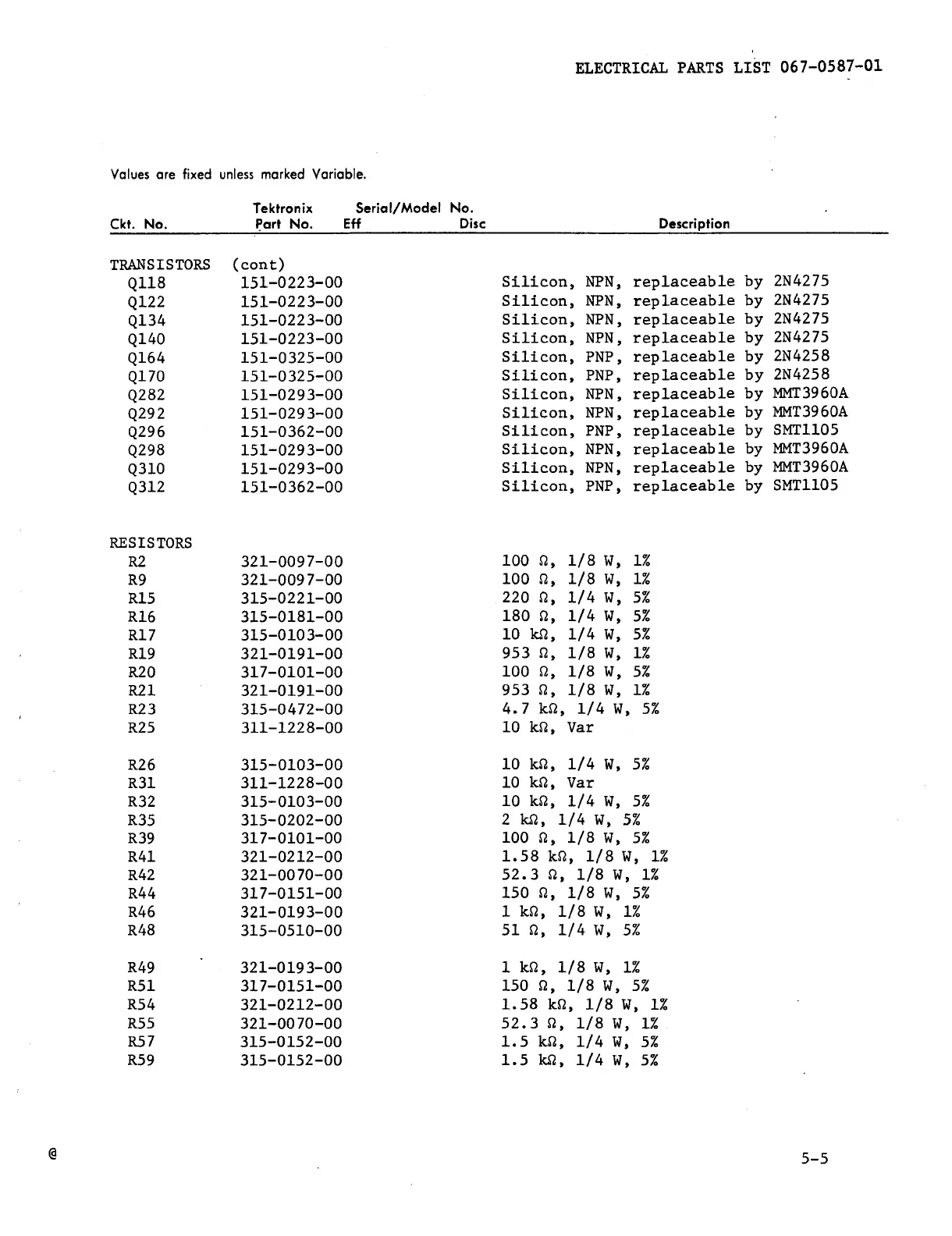

ELECTRICAL PARTS LIST 067-0587-01
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
TRANSISTORS (cont)
Qi18 151-0223-00 Silicon, NPN, replaceable by 2N4275
Q122 151-0223-00 Silicon, NPN, replaceable by 2N4275
Q134 151-0223-00 Silicon, NPN, replaceable by 2N4275
Q140 151-0223-00 Silicon, NPN, replaceable by 2N4275
Q164 151-0325-00 Silicon, PNP, replaceable by 2N4258
Q170 151-0325-00 Silicon, PNP, replaceable by 2N4258
Q282 151-0293-00 Silicon, NPN, replaceable by MMT3960A
Q292 151-0293-00 Silicon, NPN, replaceable by MMT3960A
Q296 151-0362-00 Silicon, PNP, replaceable by SMT1105
Q298 151-0293-00 Silicon, NPN, replaceable by MMT3960A
Q310 151-0293-00 Silicon, NPN, replaceable by MMT3960A
Q312 151-0362-00 Silicon, PNP, replaceable by SMT1105
RESISTORS
R2 321-0097-00 100 2, 1/8 W, 12
RO 321-009 7-00 100 2, 1/8 W, 12%
R15 315-0221-00 220 2, 1/4 W, 52%
R16 315-0181-00 180 2, 1/4 W, 52
R17 315-0103-00 10 kn, 1/4 W, 5%
R19 321-0191-00 953 2, 1/8 W, 1%
R20 317-0101-00 100 2, 1/8 W, 52
R21 321-0191-00 953 2, 1/8 W, 1%
R23 315-0472-00 4.7 kQ, 1/4 W, 5%
R25 311-1228-00 10 kf, Var
R26 315-0103-00 10 kf, 1/4 W, 5%
R31 311-1228-00 10 kQ, Var
R32 315-0103-00 10 k2, 1/4 W, 52%
R35 315-0202-00 2 kQ, 1/4 W, 5%
R39 317-0101-00 100 2, 1/8 W, 52
R41 321-0212-00 1.58 kf, 1/8 W, 1%
R42 321-0070-00 52.3 2, 1/8 W, 1%
R44 317-0151-00 150 2, 1/8 W, 5%
R46 321-0193-00 1 kg, 1/8 W, 1%
R48 315-0510-00 512, 1/4 W, 5%
R49 321-0193-00 1 kf, 1/8 W, 12%
R51 317-0151-00 150 2, 1/8 W, 5%
R54 321-0212-00 1.58 kQ, 1/8 W, 12%
R55 321-00 70-00 52.3 2, 1/8 W, 1%
R57 315-0152-00 1.5 kQ, 1/4 W, 5%
R59 315-0152-00 1.5 kQ, 1/4 W, 5%
