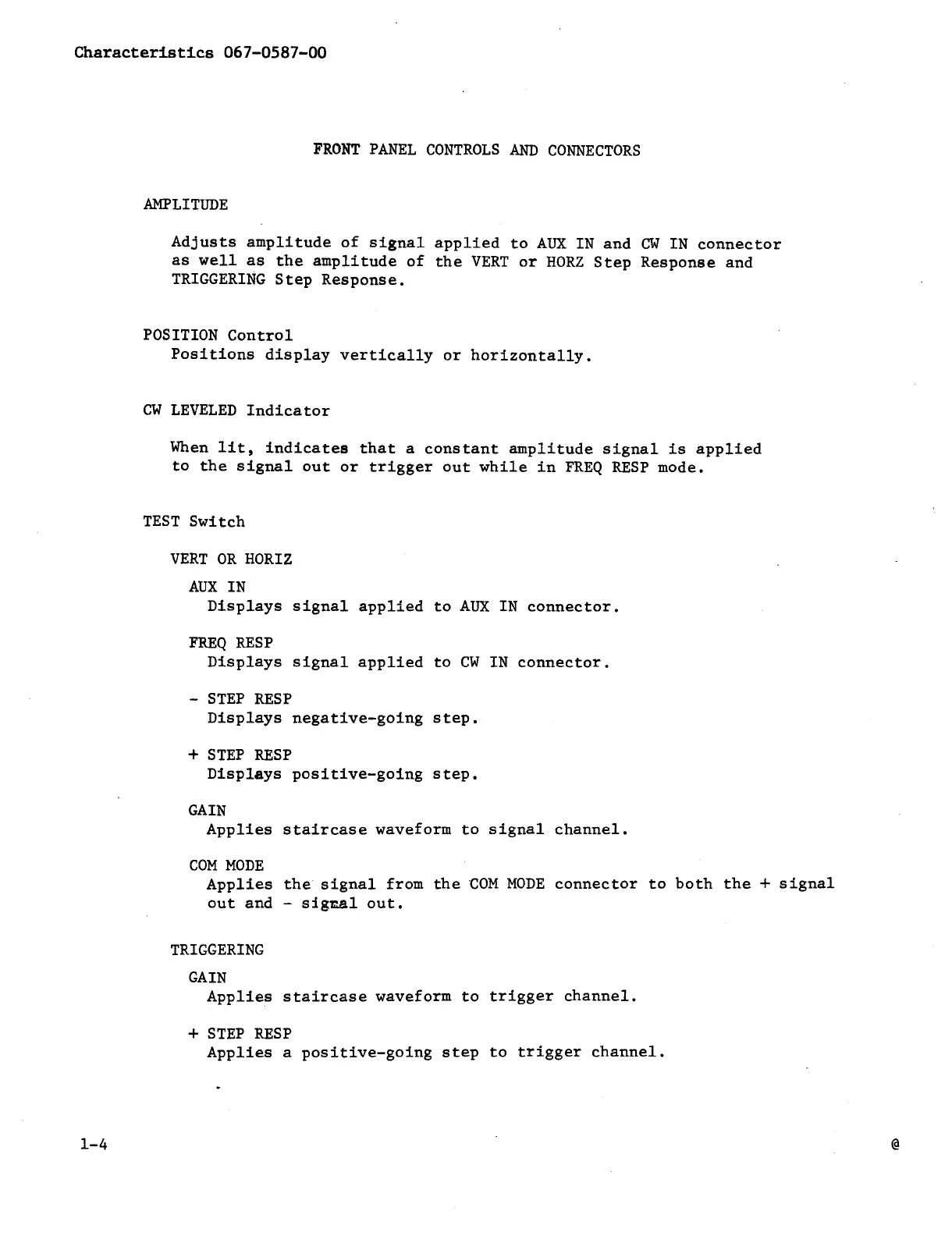

Characteristics 067-0587-00
FRONT PANEL CONTROLS AND CONNECTORS
AMPLITUDE
Adjusts amplitude of signal applied to AUX IN and CW IN connector
as well as the amplitude of the VERT or HORZ Step Response and
TRIGGERING Step Response.
POSITION Control
Positions display vertically or horizontally.
CW LEVELED Indicator
When lit, indicates that a constant amplitude signal is applied
to the signal out or trigger out while in FREQ RESP mode.
TEST Switch
VERT OR HORIZ
AUX IN
Displays signal applied to AUX IN connector.
FREQ RESP
Displays signal applied to CW IN connector.
- STEP RESP
Displays negative-going step.
+ STEP RESP
Displays positive-going step.
GAIN
Applies staircase waveform to signal channel.
COM MODE
Applies the signal from the COM MODE connector to both the + signal
out and —- signal out.
TRIGGERING
GAIN
Applies staircase waveform to trigger channel.
+ STEP RESP
Applies a positive-going step to trigger channel.
1-4
