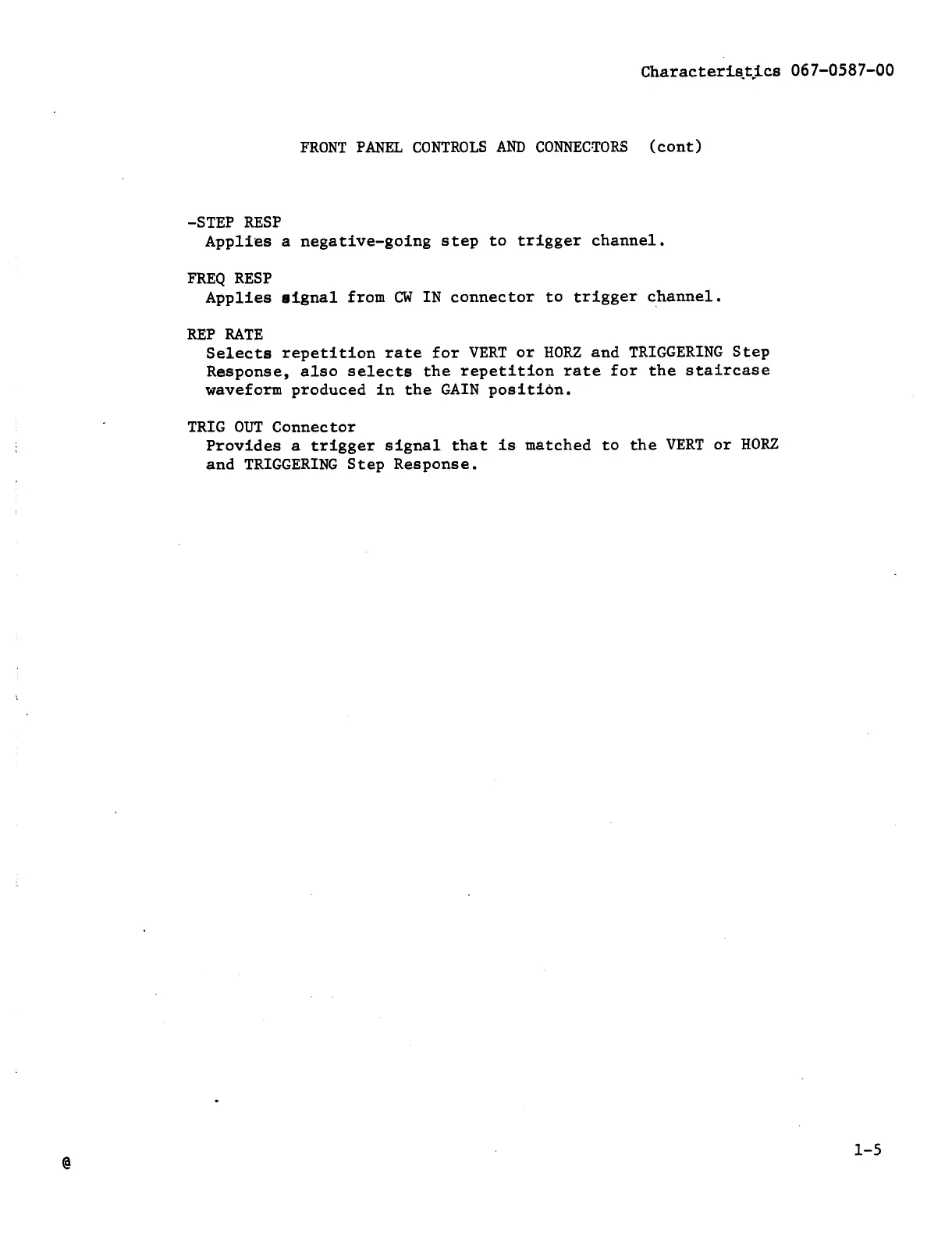

Characteristics
067-0587-00
FRONT
PANEL
CONTROLS
AND
CONNECTORS
(cont)
-STEP
RESP
Applies
a
negative-going
step
to
trigger
channel.
FREQ
RESP
Applies
signal
from
CW IN
connector
to
trigger
channel.
REP
RATE
Selects
repetition
rate
for
VERT
or
HORZ
and
TRIGGERING
Step
Response,
also
selects
the
repetition
rate
for
the
staircase
waveform
produced
in
the
GAIN
position.
TRIG
OUT
Connector
Provides
a
trigger
signal
that
is
matched
to
the
VERT
or
HORZ
and
TRIGGERING
Step
Response.
