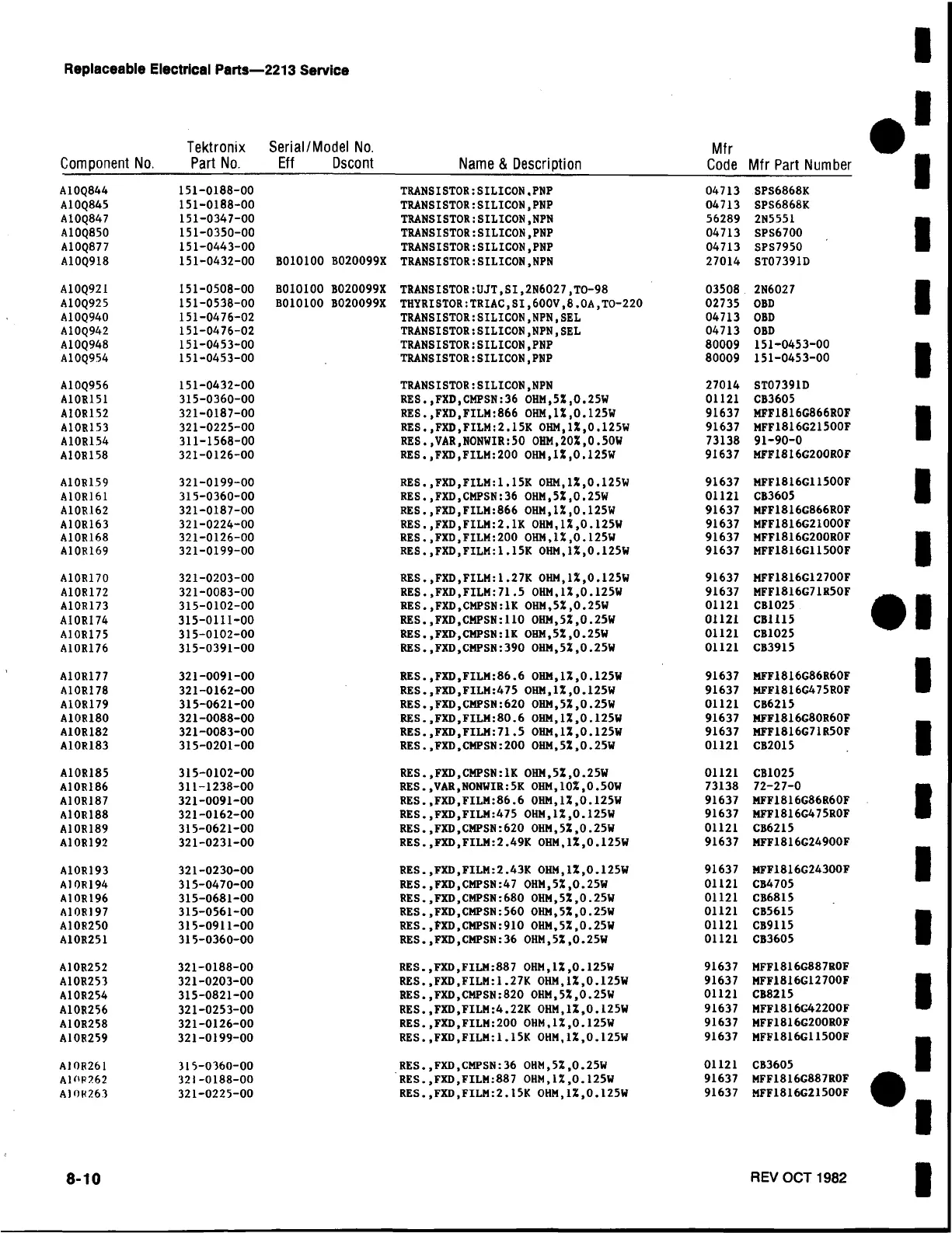

Tektronix 2213 Instruction Manual

Replaceable Electrical Parts— 2213 Service
Tektronix Serial/M odel No. M fr
Component No.
Part No.
Eff Dscont
Name & Description
Code M fr Part Number
A10Q844
151-0188-00
TRANSISTOR:SILICON.PNP 04713
SPS6868K
A10Q845 151-0188-00
TRANSISTOR:SILICON,PNP 04713
SPS6868K
A10Q847 151-0347-00
TRANSISTOR:SILICON,NPN 56289 2N5551
A10Q850 151-0350-00
TRANSISTOR:SILICON,PNP 04713
SPS6700
A10Q877 151-0443-00 TRANSISTOR:SILICON,PNP 04713 SPS7950
A10Q918 151-0432-00 B010100 B020099X TRANSISTOR:SILICON,NPN
27014
ST07391D
A10Q921
151-0508-00 B010100 B020099X
TRANSISTOR:UJT,SI,2N6027.TO-98 03508 2N6027
A10Q925
151-0538-00 B010100 B020099X THYRISTOR: TRI AC, S1,600V , 8. OA, TO-2 20
02735
OBD
A10Q940 151-0476-02
TRANSISTOR:SILICON,NPN,SEL 04713
OBD
A10Q942
151-0476-02 TRANSISTOR:SILICON,NPN,SEL 04713
OBD
A10Q948
151-0453-00 TRANSISTOR:SILICON,PNP
80009
151-0453-00
A10Q954 151-0453-00 TRANSISTOR:SILICON,PNP
80009
151-0453-00
A10Q956 151-0432-00 TRANSISTOR:SILICON,NPN 27014
ST07391D
A10R151 315-0360-00 RES.,FXD,CMPSN:36 OHM,5%,0.25W 01121
CB3605
A10R152 321-0187-00 RES.,FXD,FILM:866 OHM,1Z,0.125W 91637
MFF1816G866R0F
A10R153
321-0225-00 RES.,FXD,FILM:2.15K OHM,1%,0.125W 91637
MFF1816G21500F
A10R154 311-1568-00 RES.,VAR,N0NWIR:50 OHM,20%,0.50W
73138 91-90-0
A1OR158
321-0126-00 RES.,FXD,FILM:200 0HM,1%,0.12SW 91637
MFF1816G200R0F
A10R159
321-0199-00 RES.,FXD,FILM:1.15K OHM,1%,0.125W
91637
MFF1816G11500F
A10R161
315-0360-00
RES.,FXD,CMPSN:36 0HM,5%,0.25W 01121
CB3605
A10R162 321-0187-00 RES.,FXD.FILM:866 OHM,1%,0.125W 91637
MFF1816G866R0F
A10R163 321-0224-00 RES.,FXD,FILM:2.1K OHM,1%,0.125W 91637
MFF1816G21000F
A10R168
321-0126-00
RES..FXD.FILM:200 OHM,1%,0.125W 91637
MFF1816G200ROF
A10R169
321-0199-00 RES.,FXD,FILM:1.15K OHM,1%,0.125W 91637
MFF1816G11500F
A10R170
321-0203-00 RES.,FXD,FILM:1.27K OHM,1%,0.125W 91637
MFF1816G12700F
A10R172 321-0083-00
RES.,FXD.FILM:71.5 OHM,1%,0.125W 91637
MFF1816G71R50F
A10R173 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W
01121 CB1025
A10R174
315-0111-00
RES.,FXD,CMPSN:110 0HM,5Z,0.25tf
01121
CB1115
A10R175
315-0102-00
RES.,FXD,CMPSN:IK OHM,5Z,0.25W 01121 CB1025
A10R176
315-0391-00 RES.,FXD,CMPSN:390 0HM,5Z,0.25W
01121 CB3915
A10R177
321-0091-00
RES.,FXD,FILM:86.6 OHM,1Z,0.125W
91637
MFF1816G86R60F
A10R178
321-0162-00 RES.,FXD,FILM:475 OHM,1%,0.125W 91637
MFF1816G475R0F
A10R179
315-0621-00 RES.,FXD,CMPSN:620 OHM,5%,0.25W 01121
CB6215
A10R180 321-0088-00
RES.,FXD,FILM:80.6 OHM,1%,0.125W
91637
MFF1816G80R60F
A10R182
321-0083-00 RES.,FXD,FILM:71.5 0HM.1Z.0.125W 91637
MFF1816G71R50F
A10R183 315-0201-00
RES.,FXD,CMPSN:200 0HM,5Z,0.25W
01121 CB2015
A10R185
315-0102-00 RES.,FXD,CMPSN:1K 0HM,5Z,0.25W
01121 CB1025
A10R186
311-1238-00
RES.,VAR,N0NWIR:5K OHM,10Z,0.50W 73138 72-27-0
A10R187
321-0091-00
RES.,FXD,FILM:86.6 0HM,1Z,0.125W 91637 MFF1816G86R60F
A10R188 321-0162-00
RES.,FXD,FILM:475 OHM,1Z,0.125W 91637
MFF1816G475R0F
A10R189
315-0621-00
RES.,FXD,CMPSN:620 OHM,5Z,0.25W 01121 CB6215
A10R192 321-0231-00
RES..FXD.FILM:2.49K OHM,1Z,0.125W 91637
MFF1816G24900F
A10R193
321-0230-00
RES.,FXD.FILM:2.43K 0HM,1Z,0.125W
91637
MFF1816G24300F
A) OR194 315-0470-00
RES.,FXD,CMPSN:47 0HM,5Z,0.25W 01121 CB4705
A1 OR 196
315-0681-00 RES.,FXD,CMPSN:680 0HM,5Z,0.25W
01121 CB6815
A10R197
315-0561-00 RES.,FXD,CMPSN:560 OHM,5Z,0.25W
01121 CB5615
A10R250 315-0911-00
RES.,FXD,CMPSN:910 0HM,5Z,0.25H 01121
CB9115
A10R251 315-0360-00
RES.,FXD,CMPSN:36 0HM,5Z,0.25W 01121
CB3605
A10R252
321-0188-00 RES.,FXD,FILM:887 OHM,1Z,0.125W
91637
MFF1816G887R0F
A10R253
321-0203-00 RES.,FXD,FILM:1.27K OHM,1Z,0.125W
91637
MFF1816G12700F
A10R254
315-0821-00
RES.,FXD,CMPSN:820 0HM,5Z,0.25W
01121
CB8215
A10R256
321-0253-00
RES.,FXD,FILM:4.22K 0HM.1Z,0.125W
91637
MFF1816G42200F
A10R258
321-0126-00
RES.,FXD,FILM:200 OHM,1Z,0.125W 91637
MFF1816G200R0F
A10R259
321-0199-00
RES.,FXD,FILM:1.15K OHM,1Z,0.125W
91637
MFF1816G11500F
A10R261 315-0360-00
RES.,FXD,CMPSN:36 OHM,5Z,0.25W
01121 CB3605
AK'P262
321-0188-00 RES.,FXD,FILM:887 OHM,1Z,0.125W
91637
MFF1816G887R0F
A10R263
321-0225-00
RES.,FXD,FILM:2.15K OHM,1Z,0.125W
91637
MFF1816G21500F
8-10
REV OCT 1982
