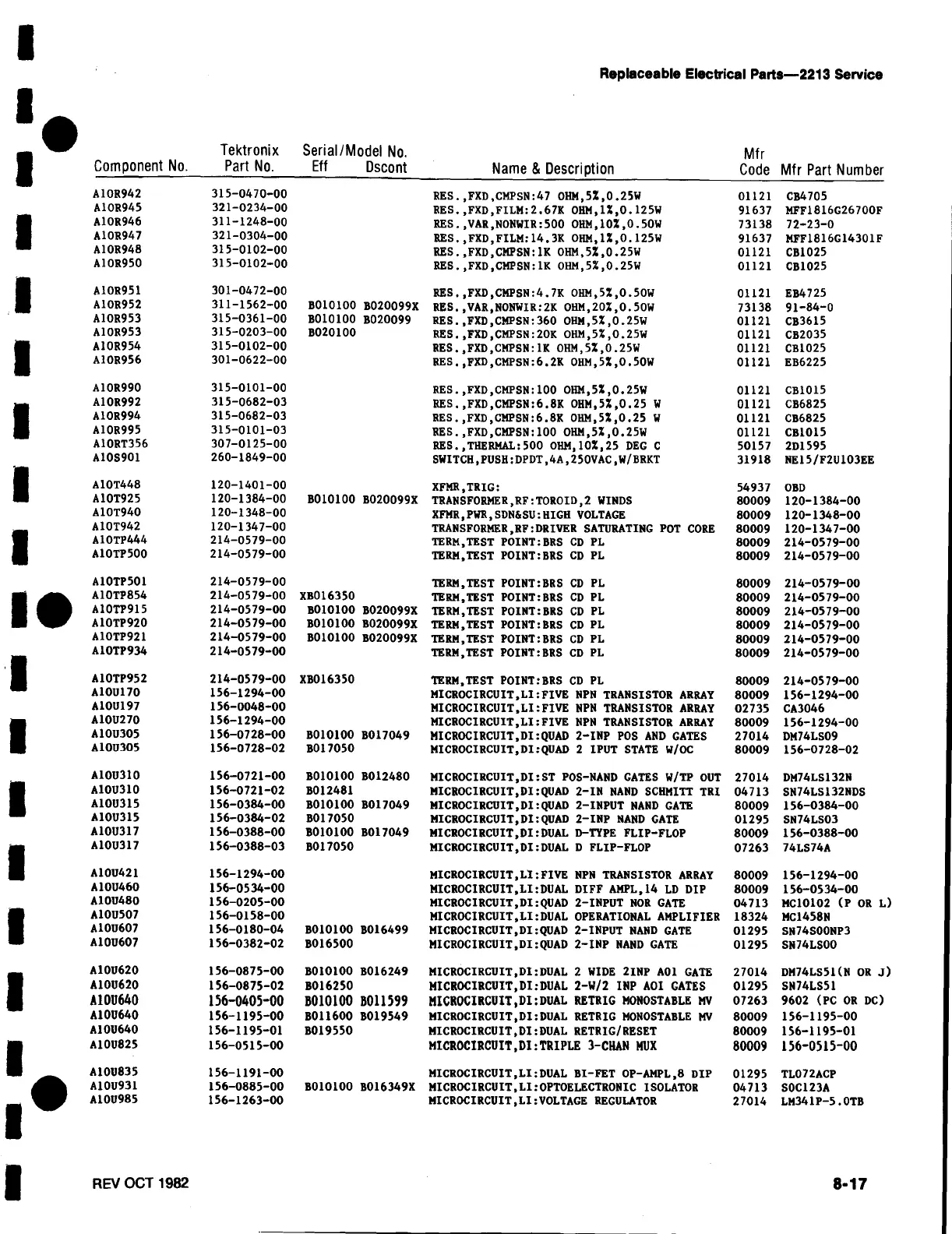

Tektronix 2213 Instruction Manual

Replaceable Electrical Parts— 2213 Service
Tektronix Serial/M odel No. Mfr
Component No.
Part No.
Eff Dscont
Name & Description
Code M fr Part Number
A10R942
315-0470-00
RES.,FXD,CMPSN:47 OHM,5Z,0.25W 01121
CB4705
A10R945
321-0234-00
RES. ,FXD,FILM:2.67K OHM,12,0.125W
91637
MFF1816G26700F
A10R946
311-1248-00
RES.,VAR,NONWIR:500 OHM,102,0.50W
73138 72-23-0
A10R947
321-0304-00
RES.,FXD,FILM:14.3K OHM,1Z,0.125W
91637
MFF1816G14301F
A10R948
315-0102-00
RES.,FXD.CMPSN:IK OHM.5Z.0.25W
01121
CB1025
A10R950
315-0102-00
RES.,FXD,CMPSN:1K OHM,5Z,0.25W
01121 CB1025
A10R951
301-0472-00
RES.,FXD,CMPSN:4.7K 0HM,5Z,0.50W
01121
EB4725
A10R952
311-1562-00
B010100 B020099X
RES.,VAR,N0NW1R:2K OHM,20Z,0.50W
73138 91-84-0
A10R953
315-0361-00
B010100 B020099
RES.,FXD,CMPSN:360 OHM,5Z,0.25W 01121 CB3615
A10R953
315-0203-00 B020100
RES.,FXD,CMPSN:20K OHM,5Z,0.25W
01121
CB2035
A10R954
315-0102-00
RES.,FXD,CMPSN:IK 0HM,5Z,0.25W
01121 CB1025
A10R956
301-0622-00
RES,,FXD,CMPSN:6.2K 0HM,5Z,0.50W
01121 EB6225
A10R990 315-0101-00
RES.,FXD,CMPSN:100 OHM,5Z,0.25W 01121
CB1015
A10R992
315-0682-03
RES.,FXD,CMPSN:6,8K OHM,5Z,0.25 W 01121 CB6825
A10R994
315-0682-03
RES.,FXD,CMPSN:6.8K OHM,51,0.25 W
01121 CB6825
A10R995 315-0101-03
RES.,FXD.CMPSN:100 OHM,5Z,0.25W
01121 CB1015
A10RT356
307-0125-00
RES..THERMAL:500 OHM,10Z,25 DEG C
50157 2D1595
A10S901
260-1849-00
SWITCH,PUSH:DPDT,4A,250VAC.W/BRKT
31918
NE15/F2U103EE
A10T448
120-1401-00
XFMR.TRIG:
54937 OBD
A10T925 120-1384-00
B010100 B020099X
TRANSFORMER,RF:TOROID,2 WINDS
80009 120-1384-00
A10T940
120-1348-00
XFMR,PWR,SDN&SU:HIGH VOLTAGE
80009 120-1348-00
A10T942
120-1347-00
TRANSFORMER,RF:DRIVER SATURATING POT CORE
80009 120-1347-00
AIOTP444
214-0579-00
TERM,TEST POINT:BRS CD PL
80009 214-0579-00
A10TP500 214-0579-00
TERM,TEST POINT:BRS CD PL
80009
214-0579-00
A10TP501 214-0579-00
TERM,TEST POINT:BRS CD PL
80009
214-0579-00
A10TP854
214-0579-00 XB016350
TERM,TEST POINT:BRS CD PL
80009
214-0579-00
A10TP915
214-0579-00
B010100 B020099X
TERM,TEST POINT:BRS CD PL
80009
214-0579-00
A10TP920
214-0579-00
B010100 B020099X
TERM,TEST POINT:BRS CD PL
80009 214-0579-00
A10TP921
214-0579-00
B010100 B020099X
TERM,TEST POINT:BRS CD PL
80009 214-0579-00
A10TP934
214-0579-00
TERM,TEST POINT:BRS CD PL
80009 214-0579-00
A10TP952
214-0579-00 XB016350
TERM,TEST POINT.'BRS CD PL
80009 214-0579-00
A10U170
156-1294-00
MICROCIRCUIT,LI:FIVE NPN TRANSISTOR ARRAY
80009
156-1294-00
A10U197
156-0048-00
MICROCIRCUIT,LI:FIVE NPN TRANSISTOR ARRAY
02735
CA3046
A10U270
156-1294-00
MICROCIRCUIT,LI:FIVE NPN TRANSISTOR ARRAY
80009 156-1294-00
A10U30S
156-0728-00
B010100 B017049
MICROCIRCUIT,DI:QUAD 2-INP POS AND GATES
27014 DM74LS09
A10U305
156-0728-02 B017050
MICROCIRCUIT,DI.-QUAD 2 IPUT STATE W/OC
80009 156-0728-02
A10U310
156-0721-00 B010100 B012480
MICROCIRCUIT,DI:ST POS-NAND GATES W/TP OUT
27014
DM74LS132N
A10U310
156-0721-02 B012481
MICROCIRCUIT,DI:QUAD 2-IN NAND SCHMITT TRI
04713
SN74LS132NDS
A100315
156-0384-00 B010100 B017049
MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE
80009
156-0384-00
A10U315
156-0384-02 B017050
MICROCIRCUIT,DI:QUAD 2-INP NAND GATE
01295
SN74LS03
A10U317
156-0388-00 B010100 B017049
MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP
80009
156-0388-00
A10U317
156-0388-03
B017050
MICROCIRCUIT,DI:DUAL D FLIP-FLOP
07263 74LS74A
A10U421
156-1294-00
MICROCIRCUIT,LI:FIVE NPN TRANSISTOR ARRAY
80009 156-1294-00
A100460
156-0534-00
MICROCIRCUIT,LI:DUAL DIFF AMPL.14 LD DIP
80009 156-0534-00
A10U480
156-0205-00
MICROCIRCUIT,DI:QUAD 2-INPUT NOR GATE
04713 MC10102 (P OR L)
A10U507
156-0158-00
MICROCIRCUIT,LI:DUAL OPERATIONAL AMPLIFIER
18324
MC1458N
A10U607
156-0180-04
B010100 B016499
MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE
01295
SN74S00NP3
A10D607
156-0382-02
B016500
MICROCIRCUIT,DI:QUAD 2-INP NAND GATE
01295 SN74LS00
A10U620
156-0875-00
B010100 B016249
MICROCIRCUIT,DI:DUAL 2 WIDE 2INP AOl GATE
27014 DM74LS51(N OR J)
A10U620
156-0875-02 B016250 MICROCIRCUIT,DI:DUAL 2-W/2 INP AOI GATES
01295
SN74LS51
A10U640
156-0405-00
B010100 B011599
MICROCIRCUIT,DI:DUAL RETRIG MONOSTABLE MV
07263
9602 (PC OR DC)
A10U640
156-1195-00
BO11600 B019549 MICROCIRCUIT,DI:DUAL RETRIG MONOSTABLE MV
80009
156-1195-00
A100640
156-1195-01 B019550
MICROCIRCUIT,DI:DUAL RETRIG/RESET
80009
156-1195-01
A100825
156-0515-00
MICROCIRCUIT,DI:TRIPLE 3-CHAN MUX
80009
156-0515-00
A100835
156-1191-00
MICROCIRCUIT,LI:DUAL BI-FET OP-AMPL.8 DIP
01295
TL072ACP
A100931
156-0885-00 B010100 B016349X
MICROCIRCUIT,LI:OPTOELECTRONIC ISOLATOR
04713 S0C123A
A100985
156-1263-00 MICROCIRCUIT,LI:VOLTAGE REGULATOR
27014 LM341P-5.0TB
REV OCT 1982
