Tektronix 2213 Instruction Manual

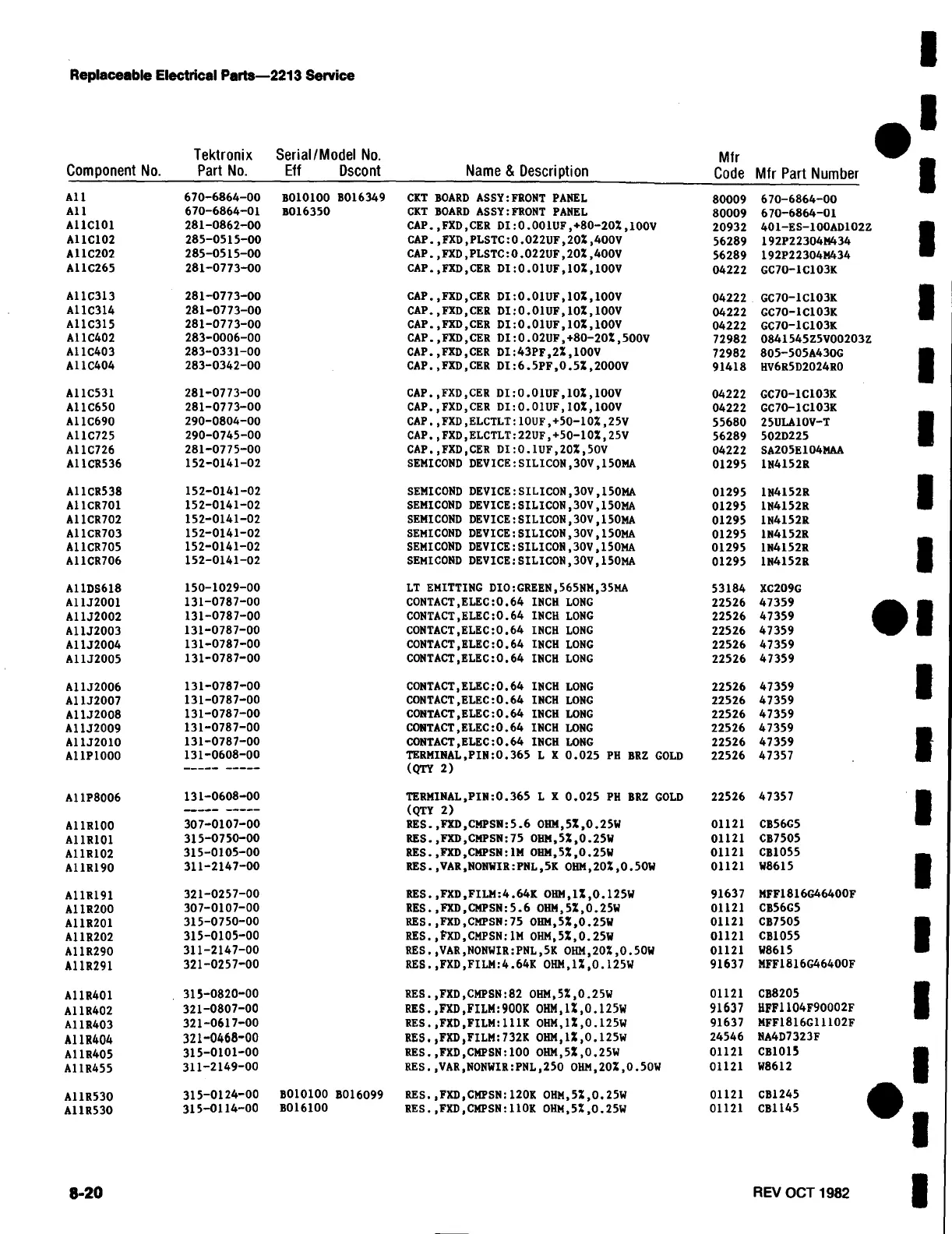

Replaceable Electrical Parts—2213 Service
Tektronix Serial/Model No. Mfr
Com ponent No. Part No. Eff
Dscont
N am e & Description
Code
All
670-6864-00
B010100
B016349
CKT BOARD ASSY:FRONT PANEL
80009
All 670-6864-01
B016350 CRT BOARD ASSY:FRONT PANEL
80009
A11C101
281-0862-00
CAP.,FXD,CER DI: 0.001UF,+80-202,100V
20932
A11C102
285-0515-00 CAP.,FXD.PLSTC:0.022UF,202,400V
56289
A11C202 285-0515-00 CAPFXD.PLSTC:0.0220F,202,400V
56289
A11C265 281-0773-00
CAP.,FXD,CER D1:0.01UF,102,100V
04222
A11C313 281-0773-00 CAP.,FXD,CER DI:0.01UF,102,100V
04222
A11C314 281-0773-00 CAP.,FXD,CER DI:0.01UF,102,100V
04222
A11C315
281-0773-00 CAP.,FXD,CER DI:0.01UF,102,100V
04222
A11C402
283-0006-00
CAP.,FXD,CER DI:0.02UF,+80-202,500V
72982
A11C403 283-0331-00 CAP.,FXD,CER DI:43PF,22,100V
72982
A11C404 283-0342-00 CAP.,FXD,CER DI: 6.5PF,0.52,2000V
91418
A11C531
281-0773-00
CAP.,FXD,CER DI:0.01UF,102,100V
04222
A11C650
281-0773-00 CAP.,FXD,CER DI:0.01UF,102,100V
04222
A11C690
290-0804-00 CAP.,FXD,ELCTLT: 10UF,+50-102,25V
55680
A11C725
290-0745-00 CAP.,FXD,ELCTLT:22UF,+50-102,25V
56289
A11C726
281-0775-00 CAP.,FXD,CER DI:0.1UF,202,50V
04222
A11CR536
152-0141-02
SEMICOND DEVICE: SILICON ,30V,150MA
01295
A11CR538
152-0141-02
SEMICOND DEVICE: SILICON,30V,150MA
01295
A11CR701
152-0141-02 SEMICOND DEVICE: SILICON,30V,150MA
01295
A11CR702
152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA
01295
A11CR703
152-0141-02 SEMICOND DEVICE:SILICON,30V.150MA
01295
A11CR705
152-0141-02
SEMICOND DEVICE:SILICON,30V.150MA
01295
A11CR706
152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA
01295
A11DS618
150-1029-00 LT EMITTING DIO:GREEN,565NM.35MA
53184
A11J2001
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11J2002
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11J2003
131-0787-00 CONTACT,ELEC:0.64 INCH LONG
22526
A11J2004
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
AllJ2005
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11J2006
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11J2007
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11J2008
131-0787-00 CONTACT,ELEC:0.64 INCH LONG
22526
A11J2009
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11J2010
131-0787-00
CONTACT,ELEC:0.64 INCH LONG
22526
A11P1000
131-0608-00
TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
22526
(QTY 2)
A11P8006
131-0608-00
TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
22526
(QTY 2)
A11R100
307-0107-00 RES.,FXD,CMPSN:5.6 OHM,52,0.25W
01121
A11R101
315-0750-00
RES.,FXD,CMPSN:75 0HM,52,0.25W 01121
A11R102
315-0105-00
RES.,FXD,CMPSN:1M 0HM,52,0.25W
01121
A11R190
311-2147-00
RES.,VAR.NONWIR:PNL,5K OHM,202,0.50W
01121
A11R191
321-0257-00
RES.,FXD,FILM:4.64K OHM,12,0.125W
91637
A11R200
307-0107-00 RES.,FXD,CMPSN:5.6 OHM,52,0.25H 01121
A11R201
315-0750-00 RES.,FXD,CMPSN:75 OHM,52,0.25H 01121
A11R202
315-0105-00
RES. ,FXD,CMPSN:1M OHM,52,0.25W 01121
A11R290
311-2147-00
RES.,VAR,NONWIR:PNL,5K OHM,202,0.50W 01121
A11R291
321-0257-00 RES.,FXD,FILM:4.64K OHM,12,0.125W 91637
A11R401
315-0820-00
RES.,FXD,CMPSN:82 0HM,52,0.25W
01121
A11R402
321-0807-00 RES.,FXD,FILM:900K 0HM,1X,0.125W 91637
A11R403
321-0617-00 RES.,FXD.FILM:11IK OHM,12,0.125W
91637
A11R404
3 21-04 6 8-0 0
RES.,FXD,FILM:732K 0HM,12,0.125W
24546
A11R405
315-0101-00 RES.,FXD,CMPSN:100 OHM.52.0.25W
01121
A11R455
311-2149-00
RES.,VAR,NONWIR:PNL,250 OHM,202,0.50W
01121
A11R530
315-0124-00
B010100
B016099
RES.,FXD,CMPSN:120K 0HM,52,0.25W
01121
A11R530
315-0114-00
B016100
RES.,FXD,CMPSN:110K 0HM.52.0.25W 01121
M fr Part Number
670-6864-00
670-6864-01
401-ES-100AD102Z
192P22304M434
192P22304M434
GC70-1C103K
GC70-1C103K
GC70-1C103K
GC70-1C103K
0841545Z5V00203Z
805-505A430G
HV6R5D2024R0
GC70-1C103K
GC70-1C103K
25ULA10V—T
502D225
SA205E104MAA
1N4152R
1N4152R
1N4152R
1N4152R
1N4152R
1N4152R
1N4152R
XC209G
47359
47359
47359
47359
47359
47359
47359
47359
47359
47359
47357
47357
CB56G5
CB7505
CB1055
W8615
MFF1816G46400F
CB56G5
CB7505
CB1055
W8615
MFF1816G46400F
CB8205
HFF1104F90002F
MFF1816G1U02F
NA4D7323F
CB1015
W8612
CB1245
CB1145
8-20
REV OCT 1982
