Tektronix 2213 Instruction Manual

Section 5—2213 Service

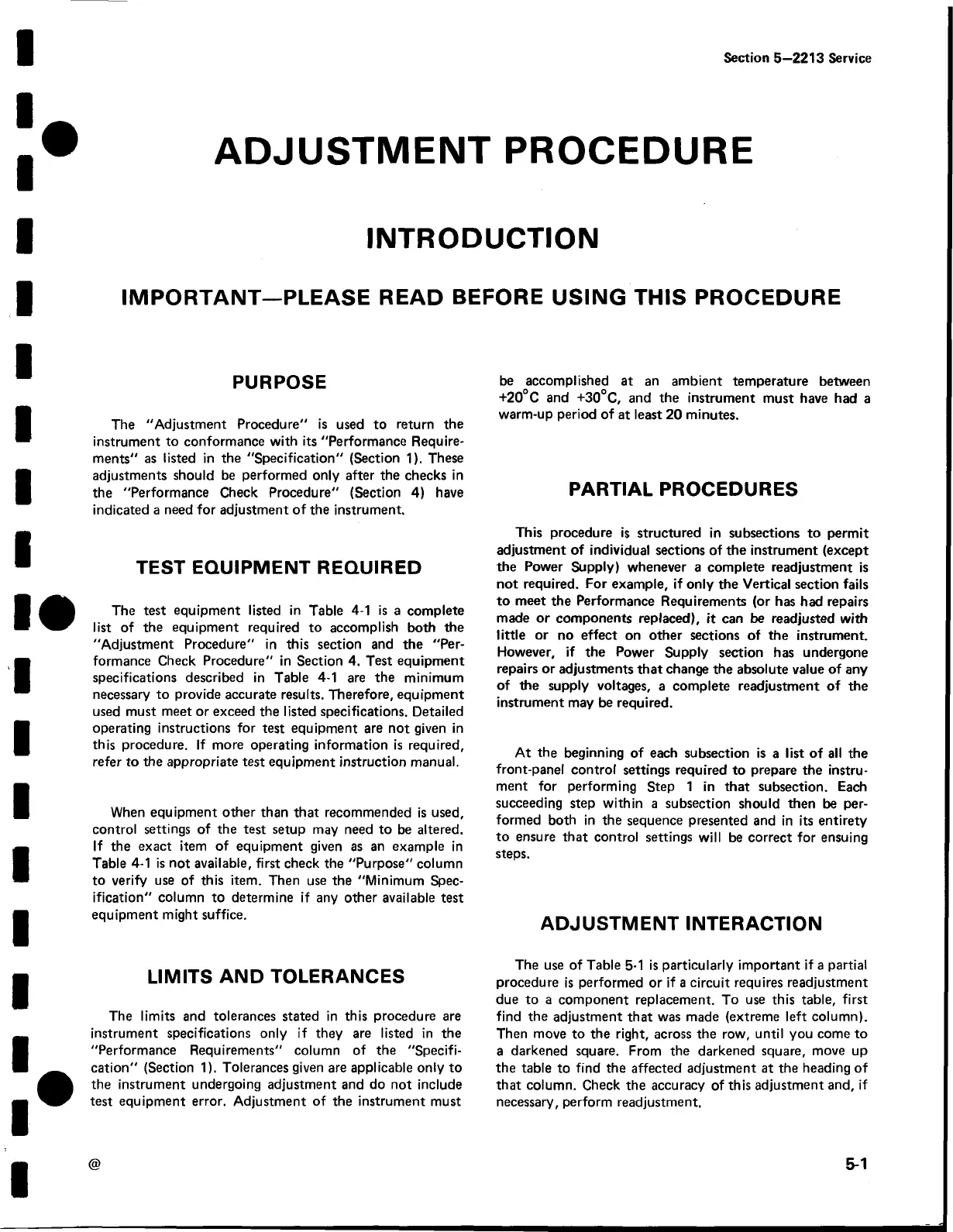

ADJUSTMENT PROCEDURE
INTRODUCTION
IMPORTANT—PLEASE READ BEFORE USING THIS PROCEDURE
PURPOSE
The "Adjustment Procedure" is used to return the
instrument to conformance with its "Performance Require
ments" as listed in the "Specification" (Section 1). These
adjustments should be performed only after the checks in
the "Performance Check Procedure" (Section 4) have
indicated a need for adjustment of the instrument.
TEST EQUIPMENT REQUIRED
The test equipment listed in Table 4-1 is a complete
list of the equipment required to accomplish both the
"Adjustment Procedure" in this section and the "Per
formance Check Procedure" in Section 4. Test equipment
specifications described in Table 4-1 are the minimum
necessary to provide accurate results. Therefore, equipment
used must meet or exceed the listed specifications. Detailed
operating instructions for test equipment are not given in
this procedure. If more operating information is required,
refer to the appropriate test equipment instruction manual.
When equipment other than that recommended is used,
control settings of the test setup may need to be altered.
If the exact item of equipment given as an example in
Table 4-1 is not available, first check the "Purpose" column
to verify use of this item. Then use the "Minimum Spec
ification" column to determine if any other available test
equipment might suffice.
LIMITS AND TOLERANCES
The limits and tolerances stated in this procedure are
instrument specifications only if they are listed in the
"Performance Requirements" column of the "Specifi
cation" (Section 1). Tolerances given are applicable only to
the instrument undergoing adjustment and do not include
test equipment error. Adjustment of the instrument must
be accomplished at an ambient temperature between
+20°C and +30°C, and the instrument must have had a
warm-up period of at least 20 minutes.
PARTIAL PROCEDURES
This procedure is structured in subsections to permit
adjustment of individual sections of the instrument (except
the Power Supply) whenever a complete readjustment is
not required. For example, if only the Vertical section fails
to meet the Performance Requirements (or has had repairs
made or components replaced), it can be readjusted with
little or no effect on other sections of the instrument.
However, if the Power Supply section has undergone
repairs or adjustments that change the absolute value of any
of the supply voltages, a complete readjustment of the
instrument may be required.
A t the beginning of each subsection is a list of all the
front-panel control settings required to prepare the instru
ment for performing Step 1 in that subsection. Each
succeeding step within a subsection should then be per
formed both in the sequence presented and in its entirety
to ensure that control settings will be correct for ensuing
steps.
ADJUSTMENT INTERACTION
The use of Table 5-1 is particularly important if a partial
procedure is performed or if a circuit requires readjustment
due to a component replacement. To use this table, first
find the adjustment that was made (extreme left column).
Then move to the right, across the row, until you come to
a darkened square. From the darkened square, move up
the table to find the affected adjustment at the heading of
that column. Check the accuracy of this adjustment and, if
necessary, perform readjustment.
@ 5-1
