2232 Setvlce

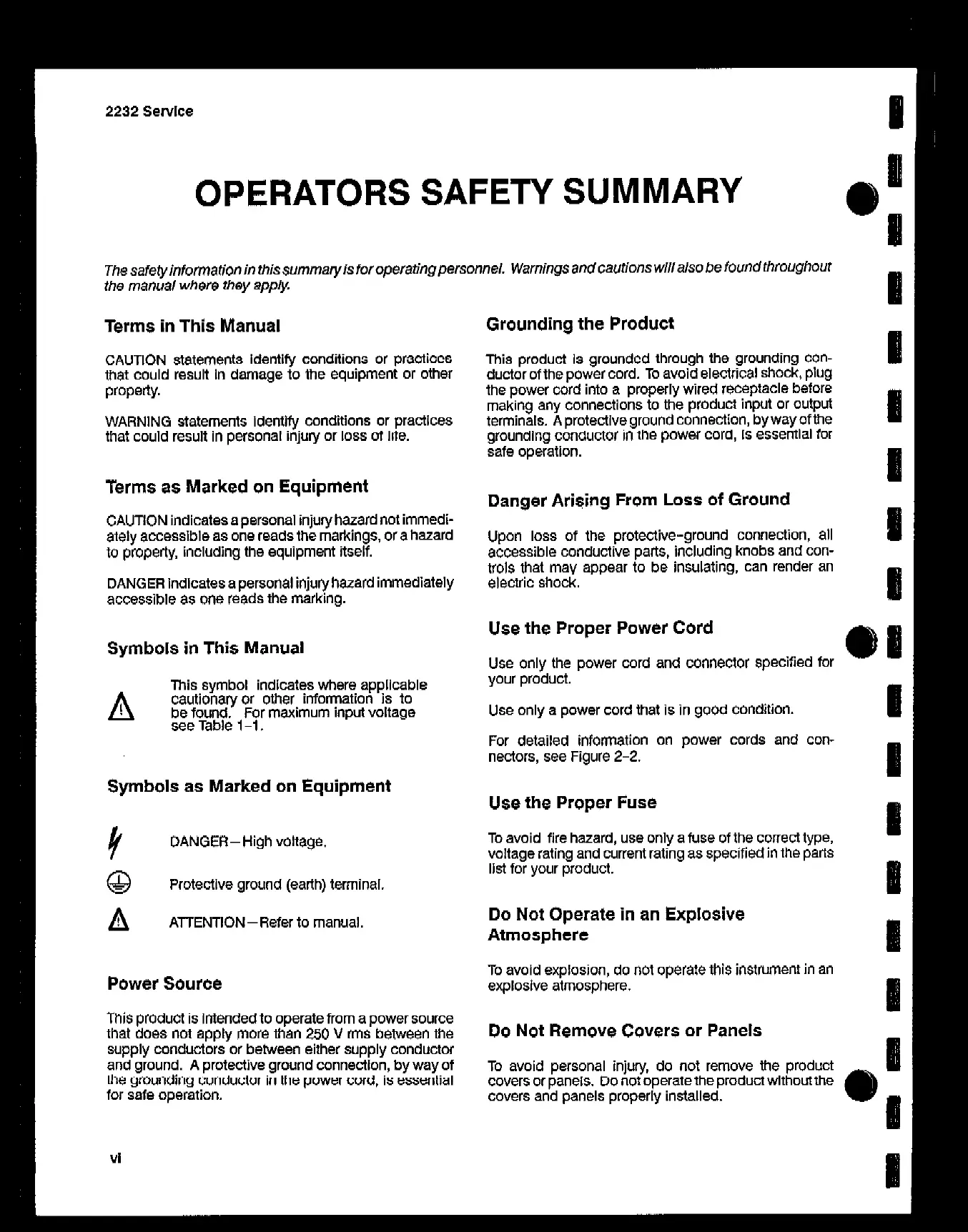

OPERATORS
SAFETY SUMMARY
The safetv information in this summaw is for onerating personnel. Warnings and cautions will also be found throughout
the ma&al where they apply. .
-.
Terms in This Manual
Grounding the Product
CAUTION StStementS identify conditions Or practices
tnat could result In damage to the equipment or other
property.
WARNING statements identify conditions or practices
that could result in personal injuy or loss of life.
This product Is grounded through the grounding can-
ductor of the power cord. To avoid electrical shock, plu.
the power cord into a properly wired receptacle before
making any connections to the product input or output
terminals. A protoctlve ground connection, byway of the
grounding conductor in the power cord, Is essential for
safe operation.
Terms as Marked on Equipment
CAUTION indicates a personal injury hazard not immedi-
ately accessible as one reads the markings, or a hazard
to property, including the equipment itself.
DANGER lndlcates a personal injury hazard immediately
accessible as one reads the marking.
Symbols in This Manual
This symbol indicates where applicable
cautionary or other information is to
be found. FOr maximum input voltage
see Table l-1,
Symbols as Marked on Equipment
DANGER-High voltage.
@
Protective ground (earth) terminal.
A
ATTENTION-Refer to manual.
Power Source
Ttlis prOduct is Intended to operate from a power source
that does not apply more than 250 V rms between the
supply conductors or between either supply conductor
and ground. A protective ground connectlon, by way of
the grounding conductor in the power cord, is essential
for safe operation.
Danger Arising From LOSS of Ground
Upon loss of the protective-ground Connection, all
accessible conductive parts, including knobs and con-
trols that may appear to be insulating, can render an
electric shock.
Use the Proper Power Cord
Use only the power cord and COnnectOr specified for
your product.
Use only a power cord that Is In good condition.
I
For detailed information on power COrdS and con-
nectors, see Figure 2-2.
I
Use the Proper Fuse
To avoid fire hazard, use only a fuse of the correct type,
voltage rating and current rating as specified in the parts
list for your product.
Do Not Operate in an Explosive
Atmosphere
To avoid explosion, do not operate this instrument in an
explosive atmosphere.
Do Not Remove Covers or Panels
To avoid personal injury, do not remove the product
covers or panels.
Do not operate the product without the
covers and panels properly installed.
e
VI
I
