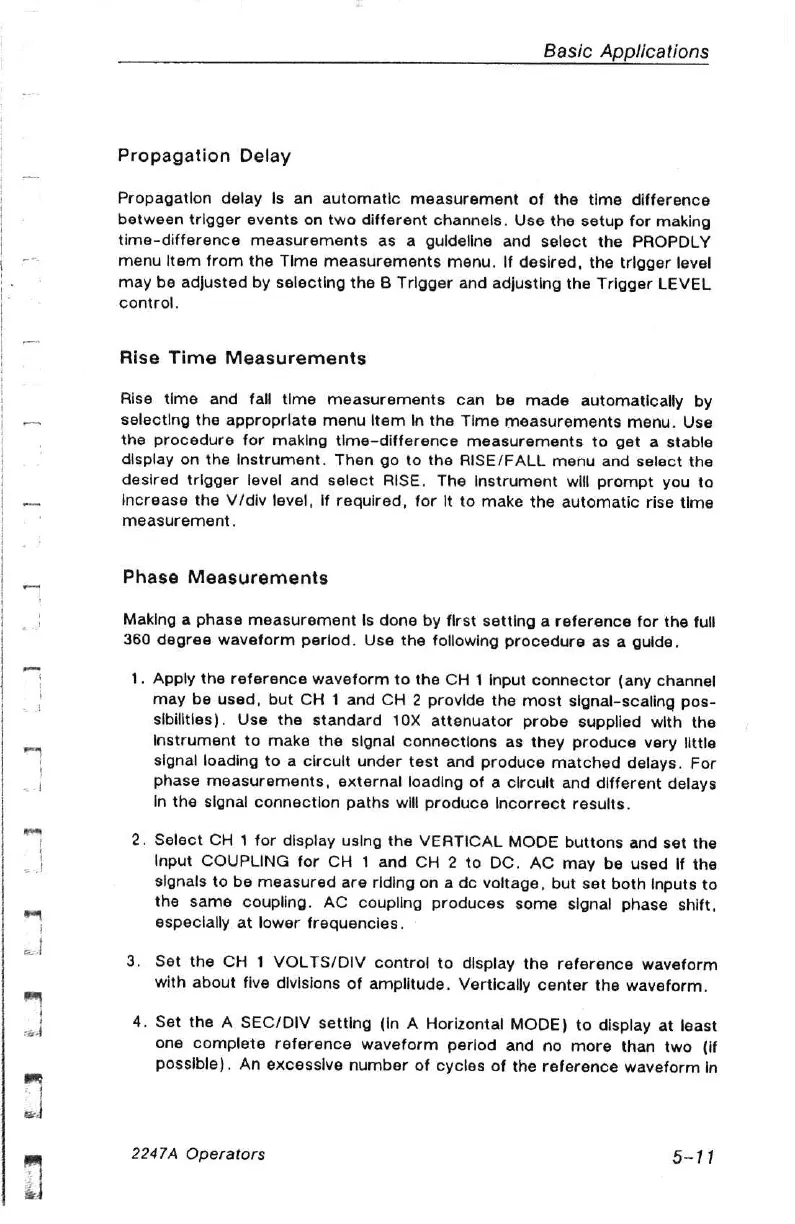

Basic
Applications
Propagation
Delay
Propagatlon
delay
Is
an
automatic
measurement
of
the
time
difference
between
trigger
events
on
two
different
channels.
Use
the
setup
for
making
time-difference
measurements
as
a
guideline
and
select
the
PROPDLY
menu
Item
from
the
Time
measurements
menu.
If
desired,
the
trigger
level
may
be
adjusted
by
selecting
the
B
Trigger
and
adjusting
the
Trigger
LEVEL
control.
Rise
Time
Measurements
Rise
time
and
fall
time
measurements
can
be
made
automatically
by
selecting
the
appropriate
menu
Item
In
the
Time
measurements
menu.
Use
the
procedure
for
making
time-difference
measurements
to
get
a
stable
display
on the
Instrument.
Then
go
to
the
RISE/FALL
menu
and
select
the
desired
trigger
level
and
select
RISE.
The
Instrument
will
prompt
you
to
Increase
the
V/div
level,
If
required,
for
It
to
make
the
automatic
rise
time
measurement.
Phase
Measurements
Making
a
phase
measurement
Is
done
by
first
setting
a
reference
for
the
full
360
degree
waveform
period.
Use
the
following
procedure
as
a
guide.
1.
Apply
the
reference
waveform
to
the
CH
1
input
connector
(any
channel
may
be
used,
but
CH
1
and
CH
2
provide
the
most
signal-scaling
pos-
sibilities).
Use
the
standard
10X
attenuator
probe
supplied
with
the
Instrument
to
make
the
signal
connections
as
they
produce
very
little
signal
loading
to
a
circult
under
test
and
produce
matched
delays.
For
phase
measurements,
external
loading
of
a
circult
and
different
delays
In
the
signal
connection
paths
will
produce
Incorrect
results.
2.
Select
CH
1
for
display
using
the
VERTICAL
MODE
buttons
and
set
the
Input
COUPLING
for
CH
1
and
CH
2
to
DC.
AC
may
be
used
If
the
signals
to
be
measured
are
riding
on
a
dc
voltage,
but
set
both
Inputs
to
the
same
coupling.
AC
coupling
produces
some
signal
phase
shift,
especially
at
lower
frequencies.
3.
Set
the
CH
1
VOLTS/DIV
control
to
display
the
reference
waveform
with
about
five
divisions
of
amplitude.
Vertically
center
the
waveform.
4.
Set
the
A
SEC/DIV
setting
(in
A
Horizontal
MODE)
to
display
at
least
one
complete
reference
waveform
period
and
no
more
than two
(if
possible).
An
excessive
number
of
cycles
of
the
reference
waveform
In
2247A
Operators
5-11
