Preparation for Use—2445 Operators

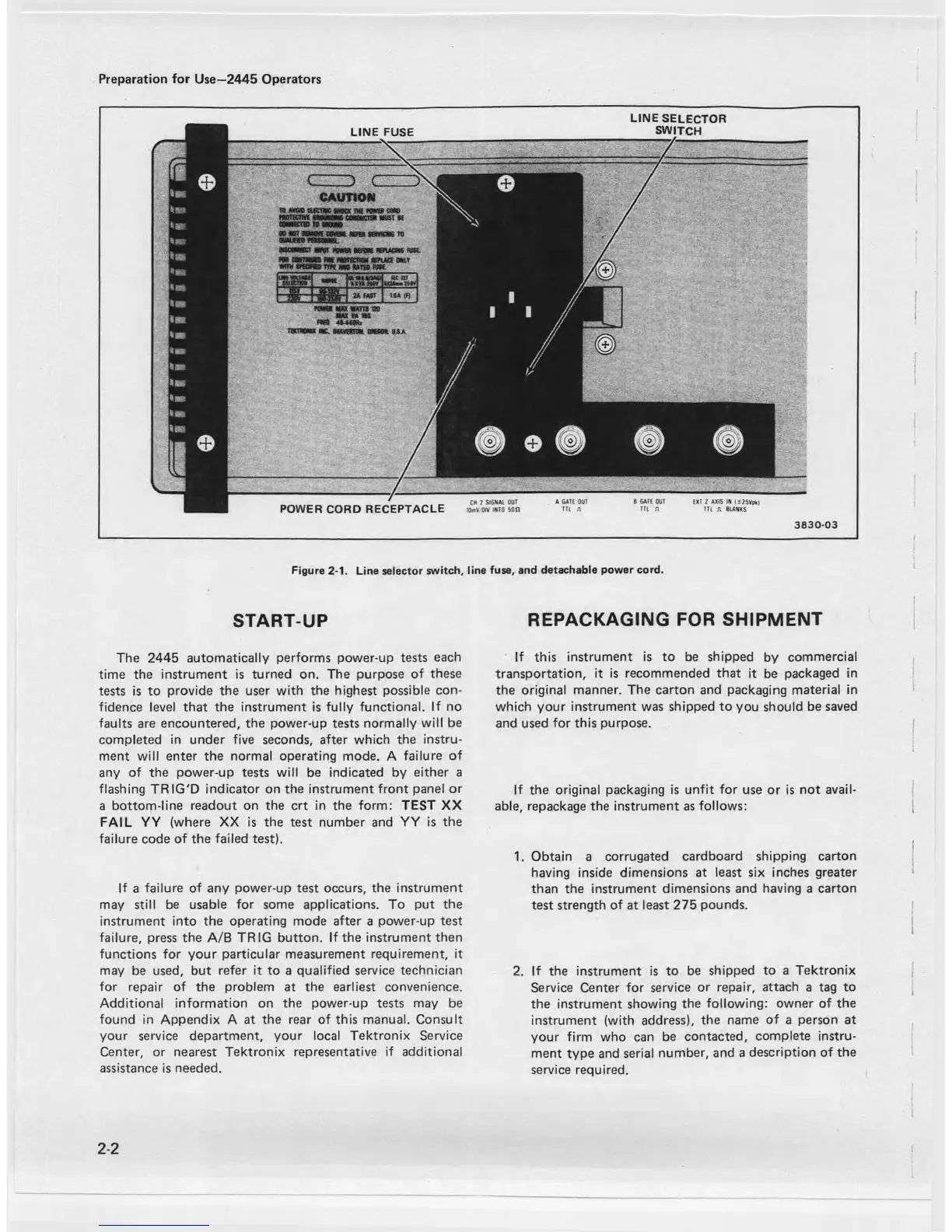

Figure 2-1. Line selector switch, line fuse, and detachable power cord.
START-UP
The 2445 automatically performs power-up tests each
time the instrument is turned on. The purpose of these
tests is to provide the user with the highest possible con
fidence level that the instrument is fully functional. If no
faults are encountered, the power-up tests normally will be
completed in under five seconds, after which the instru
ment will enter the normal operating mode. A failure of
any of the power-up tests will be indicated by either a
flashing TRIG'D indicator on the instrument front panel or
a bottom-line readout on the crt in the form: TEST XX
FAIL YY (where XX is the test number and YY is the
failure code of the failed test).
If a failure of any power-up test occurs, the instrument
may still be usable for some applications. To put the
instrument into the operating mode after a power-up test
failure, press the A/B TRIG button. If the instrument then
functions for your particular measurement requirement, it
may be used, but refer it to a qualified service technician
for repair of the problem at the earliest convenience.
Additional information on the power-up tests may be
found in Appendix A at the rear of this manual. Consult
your service department, your local Tektronix Service
Center, or nearest Tektronix representative if additional
assistance is needed.
REPACKAGING FOR SHIPMENT
If this instrument is to be shipped by commercial
transportation, it is recommended that it be packaged in
the original manner. The carton and packaging material in
which your instrument was shipped to you should be saved
and used for this purpose.
If the original packaging is unfit for use or is not avail
able, repackage the instrument as follows:
1. Obtain a corrugated cardboard shipping carton
having inside dimensions at least six inches greater
than the instrument dimensions and having a carton
test strength of at least 275 pounds.
2. If the instrument is to be shipped to a Tektronix
Service Center for service or repair, attach a tag to
the instrument showing the following: owner of the
instrument (with address), the name of a person at
your firm who can be contacted, complete instru
ment type and serial number, and a description of the
service required.
