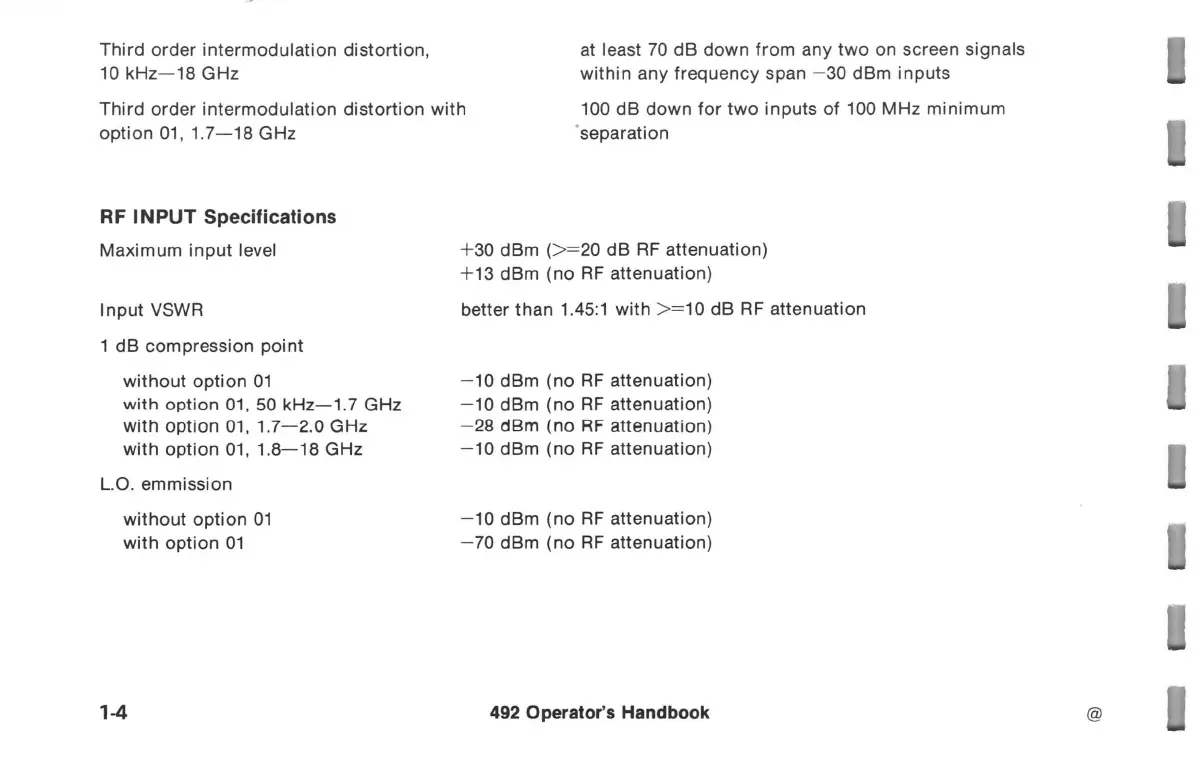

Tektronix 492 Operator's Handbook

Third order intermodulation distortion ,
10 kHz - 18 GHz
Third order intermodulation distortion with
option
01 ,
1.7-18
GHz
RF INPUT
Specifications
Maximum input level
Input
VSWR
1 dB compression point
without
option 01
with option 01 , 50 kHz - 1.7 GHz
with option 01 , 1.7-2.0 GHz
with option 01 , 1.8-18 GHz
L.O. emmission
without
option
01
with option 01
1-4
at least 70 dB down from any two on screen signals
within any frequency span -30 dBm inputs
100 dB down for two inputs of 100 MHz minimum
separation
+30 dBm ( > = 20 dB RF attenuation )
+13 dBm ( no RF attenuation )
better than 1.45 : 1 with > = 10 dB RF attenuation
-10 dBm
( no RF
attenuation )
-10 dBm ( no RF attenuation )
-28 dBm
( no RF
attenuation )
-10 dBm ( no
RF
attenuation )
-10 dBm ( no RF attenuation )
-70 dBm ( no
RF
attenuation )
