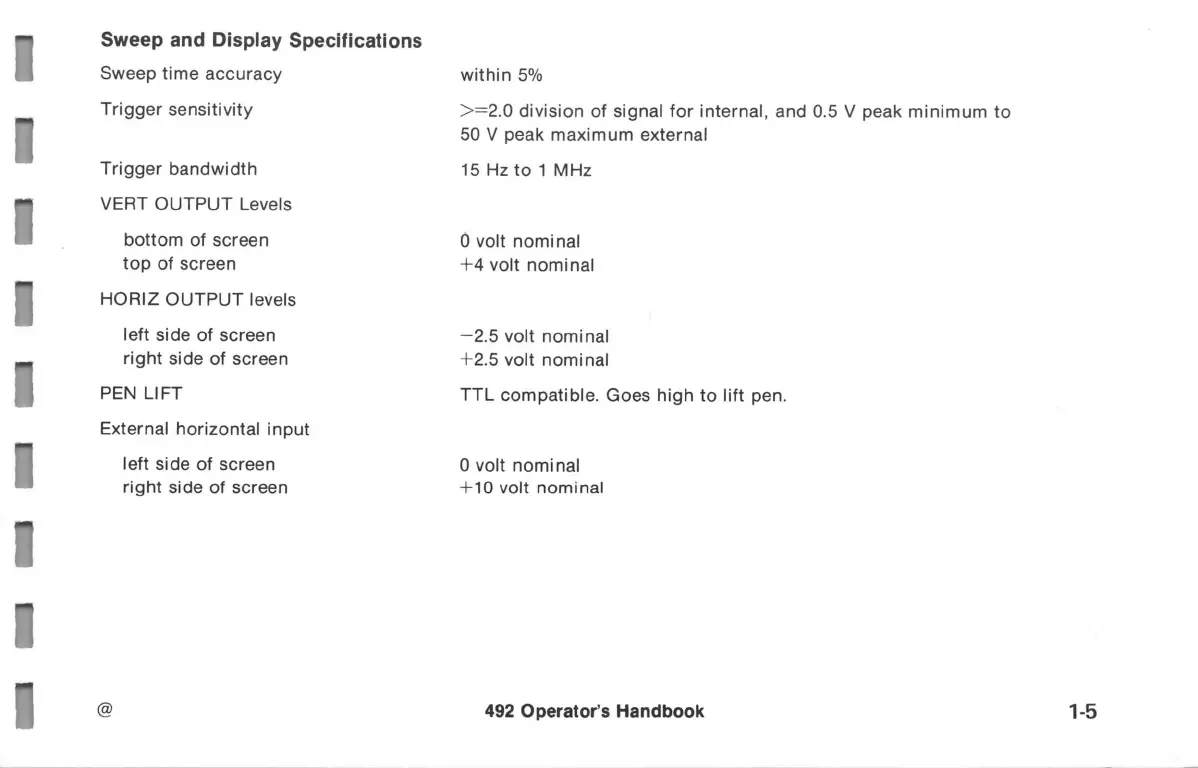

Tektronix 492 Operator's Handbook

Sweep and
Display
Specifications
Sweep
time
accuracy
Trigger sensitivity
Trigger
bandwidth
VERT
OUTPUT
Levels
bottom of
screen
top
of screen
HORIZ OUTPUT levels
left
side
of
screen
right
side
of
screen
PEN LIFT
External
horizontal
input
left
side
of
screen
right side
of
screen
within
5 %
> = 2.0 division of signal for internal , and 0.5 V peak minimum to
50 V peak maximum external
15 Hz to 1 MHz
volt
nominal
+4 volt
nominal
-2.5 volt nominal
+2.5 volt nominal
TTL
compatible .
Goes
high to
lift pen .
volt
nominal
+10 volt nominal
492
Operator's
Handbook
1-5
