Tektronix 7B10 User Manual

©©©©©©©
©©©©
©©
©
©@

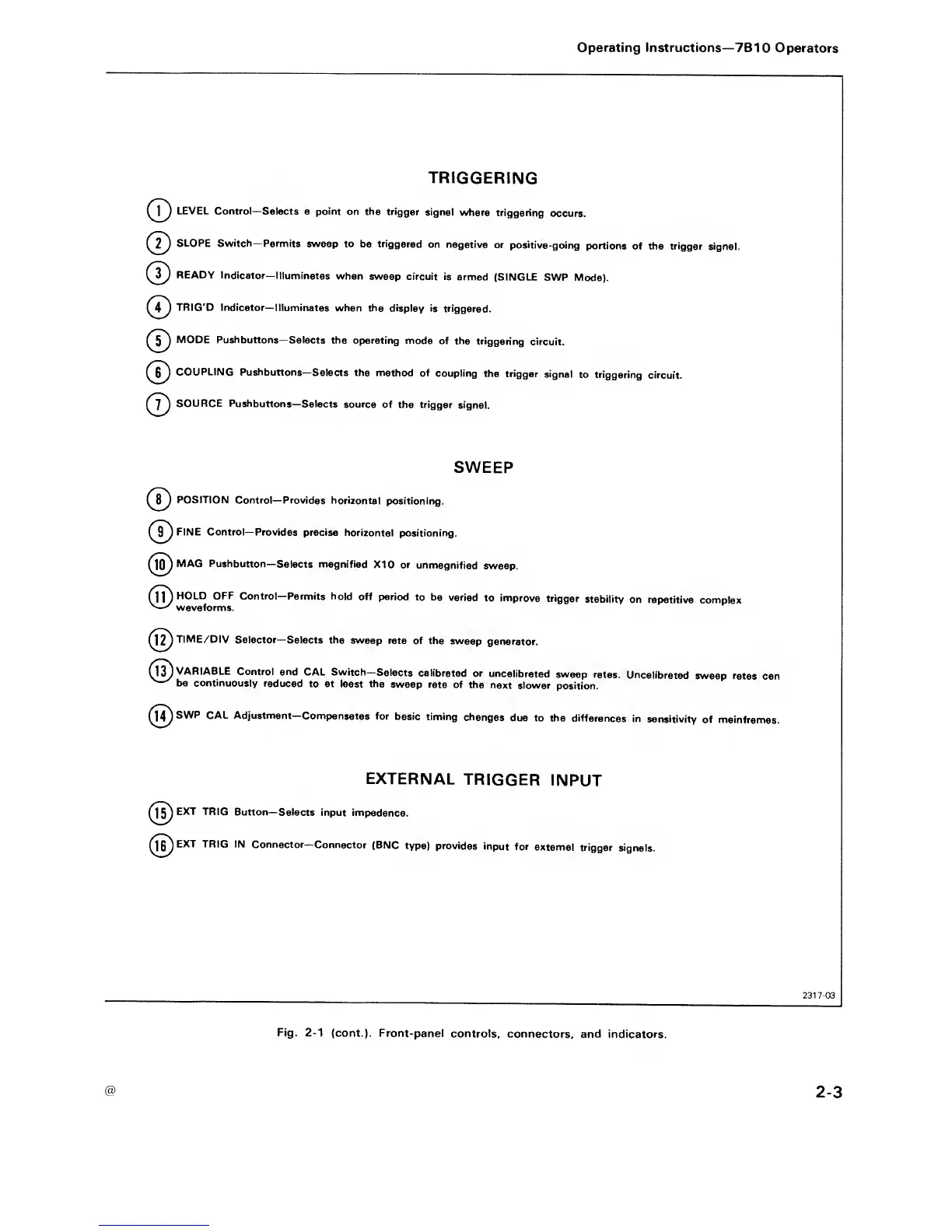

Operating Instructions—7B
10
Operators
TRIGGERING
LEVEL Control—
Selects a point
on the trigger
signal
where
triggering
occurs.
SLOPE
Switch Permits
sweep to be triggered
on negative
or
positive-going
portions
of the trigger signal.
READY
Indicator—
Illuminates
when sweep
circuit is
armed
(SINGLE
SWP Mode).
TRIG'D Indicator—
Illuminates
when the display
is
triggered.
MODE
Pushbuttons—
Selects the
operating mode
of the
triggering
circuit.
COUPLING
Pushbuttons—
Selects the
method of
coupling
the trigger
signal
to triggering
circuit.
SOURCE
Pushbuttons—Selects
source
of the trigger
signal.
SWEEP
POSITION Control
—Provides
horizontal
positioning.
FINE
Control—Provides
precise horizontal
positioning.
MAG
Pushbutton—Selects
magnified
X10 or
unmagnified
sweep.
HOLD OFF Control—
Permits hold
off period
to bo
varied
to improve
trigger
stability
on repetitive
complex
waveforms.
TIME/DIV
Selector—
Selects the
sweep
rate of
the sweep
generator.
VARIABLE
Control and
CAL Switch—
Selects
calibrated
or
uncalibrated
sweep
rates.
Uncalibrated
sweep
rates
can
be continuously
reduced
to at
least the
sweep rate
of
the next
slower
position.
SWP CAL
Adjustment—
Compensates for
basic
timing
changes
duo to
the
differences
in
sensitivity
of
mainframes.
EXTERNAL
TRIGGER
INPUT
EXT TRIG
Button—Selects
input
impedance.
EXT TRIG IN
Connector—
Connector
(BNC
type)
provides
input
for
external
trigger
signals.
2317-03
Fig. 2-1
(cont.). Front-panel
controls,
connectors,
and indicators.
