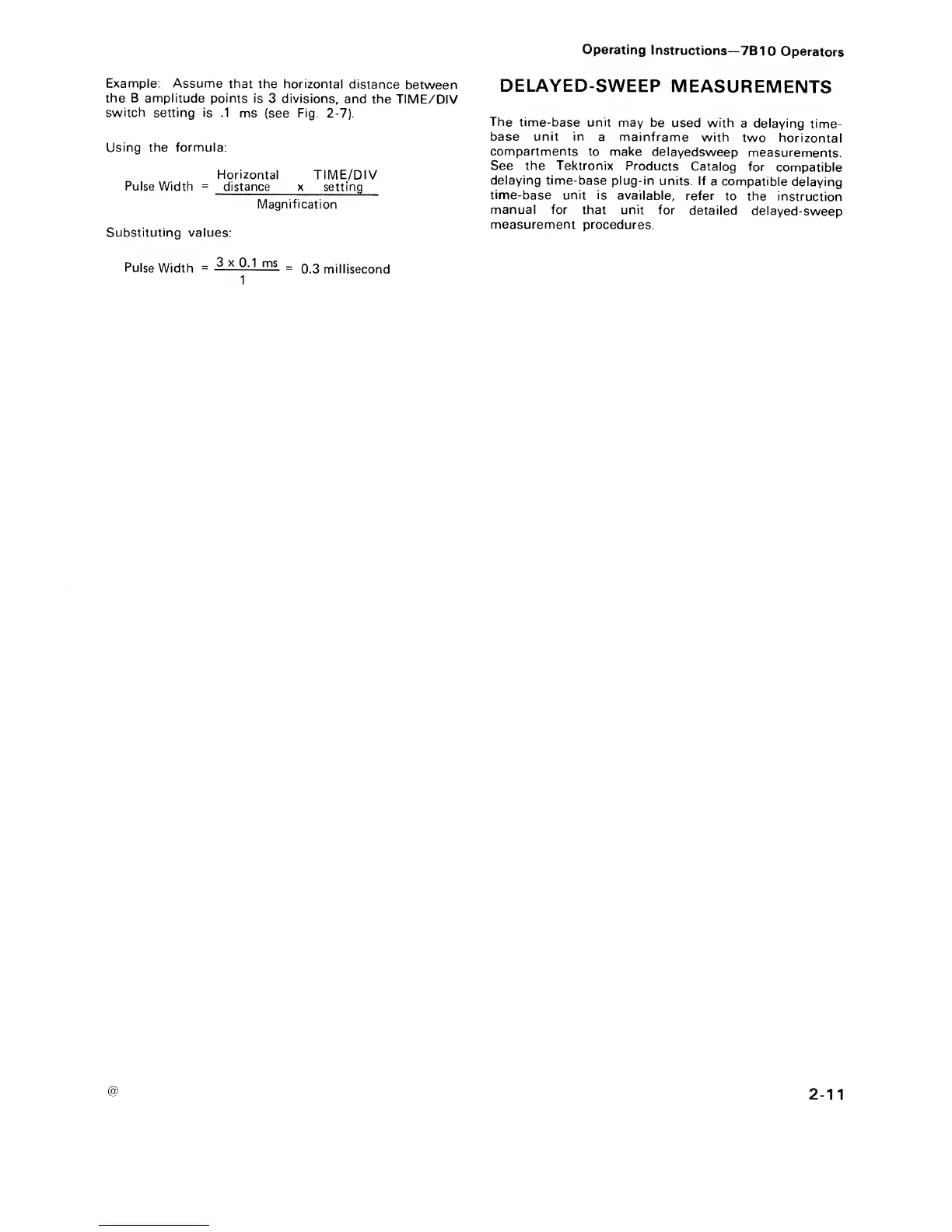

Example: Assume
that
the horizontal
distance
between
the B amplitude
points is
3 divisions,
and the
TIME/DIV
switch
setting is .1
ms
(see
Fig, 2-7).
Using the formula:
Horizontal
TIME/DIV
Pulse Width
=
distance x setting
Magnification
Substituting values:
Pulse
Width
=
—
=
0.3
millisecond
Operating
Instructions—
7B
10 Operators
DELAYED-SWEEP
MEASUREMENTS
The
time-base unit
may be
used with
a delaying
time-
base unit in
a mainframe
with
two
horizontal
compartments
to make
delayedsweep
measurements.
See
the Tektronix
Products
Catalog
for
compatible
delaying time-base
plug-in
units. If
a compatible
delaying
time-base unit is
available,
refer
to the
instruction
manual for
that unit for
detailed
delayed-sweep
measurement
procedures.
1
