Tektronix 7B10 User Manual

7B10 Operators
2416-1
7BIO

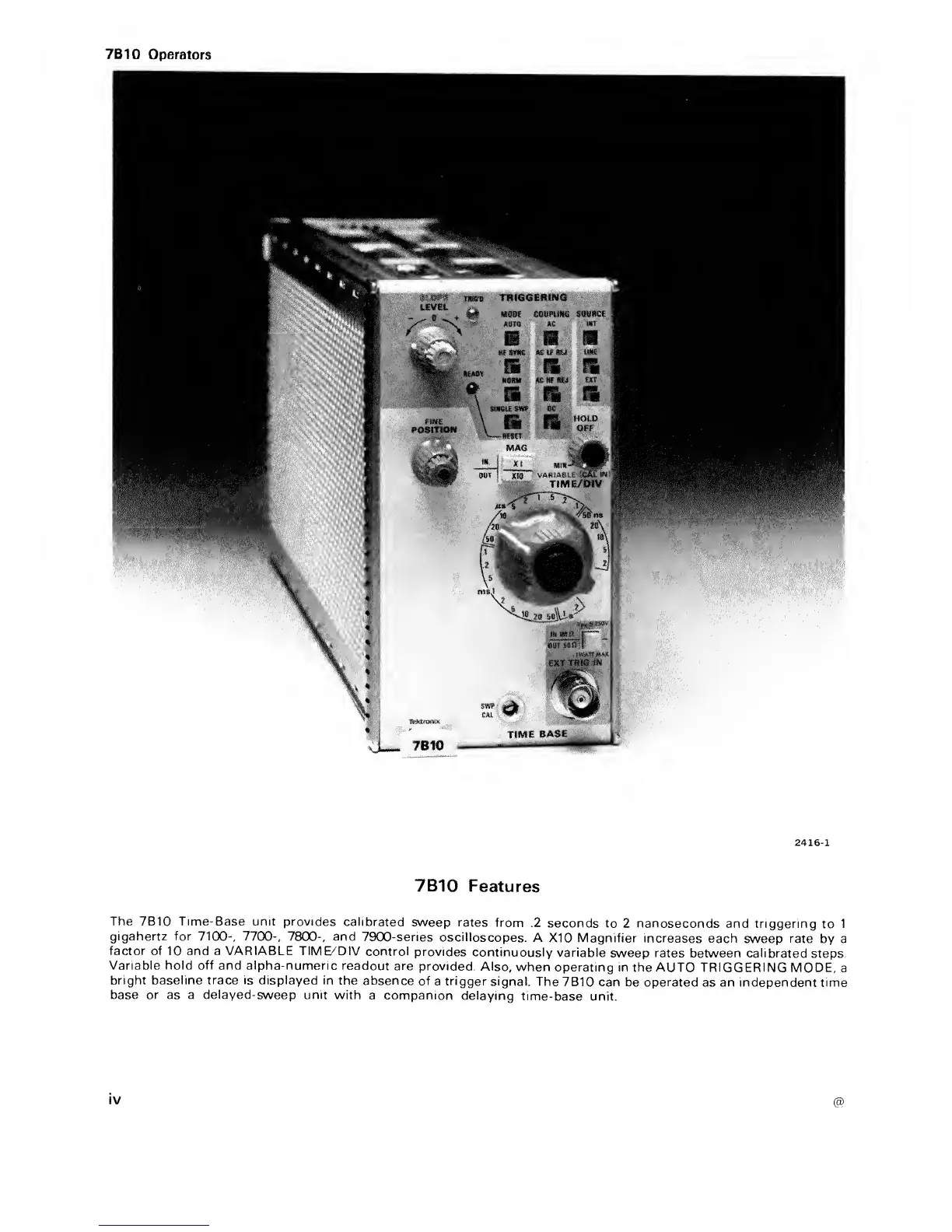

Features
The
7B10
Time-Base
unit provides
calibrated
sweep rates
from
.2
seconds to
2
nanoseconds
and triggering
to
1
gigahertz for 7100-,
77CX3-, 7800-, and
79CXD-series
oscilloscopes.
A
X10 Magnifier
increases each
sweep
rate
by a
factor of
10 and a
VARIABLE
TIME/DIV
control
provides
continuously
variable
sweep rates
between calibrated
steps.
Variable
hold off
and alpha-numeric
readout are
provided.
Also,
when
operating in the
AUTO TRIGGERING
MODE, a
bright baseline
trace
is displayed in
the absence
of
a
trigger
signal.
The
7B10 can be operated
as an independent time
base or as a delayed-sweep unit
with
a companion delaying
time-base
unit.
