Instrument interface, front panel, and rear panel
Shortcut butt
ons

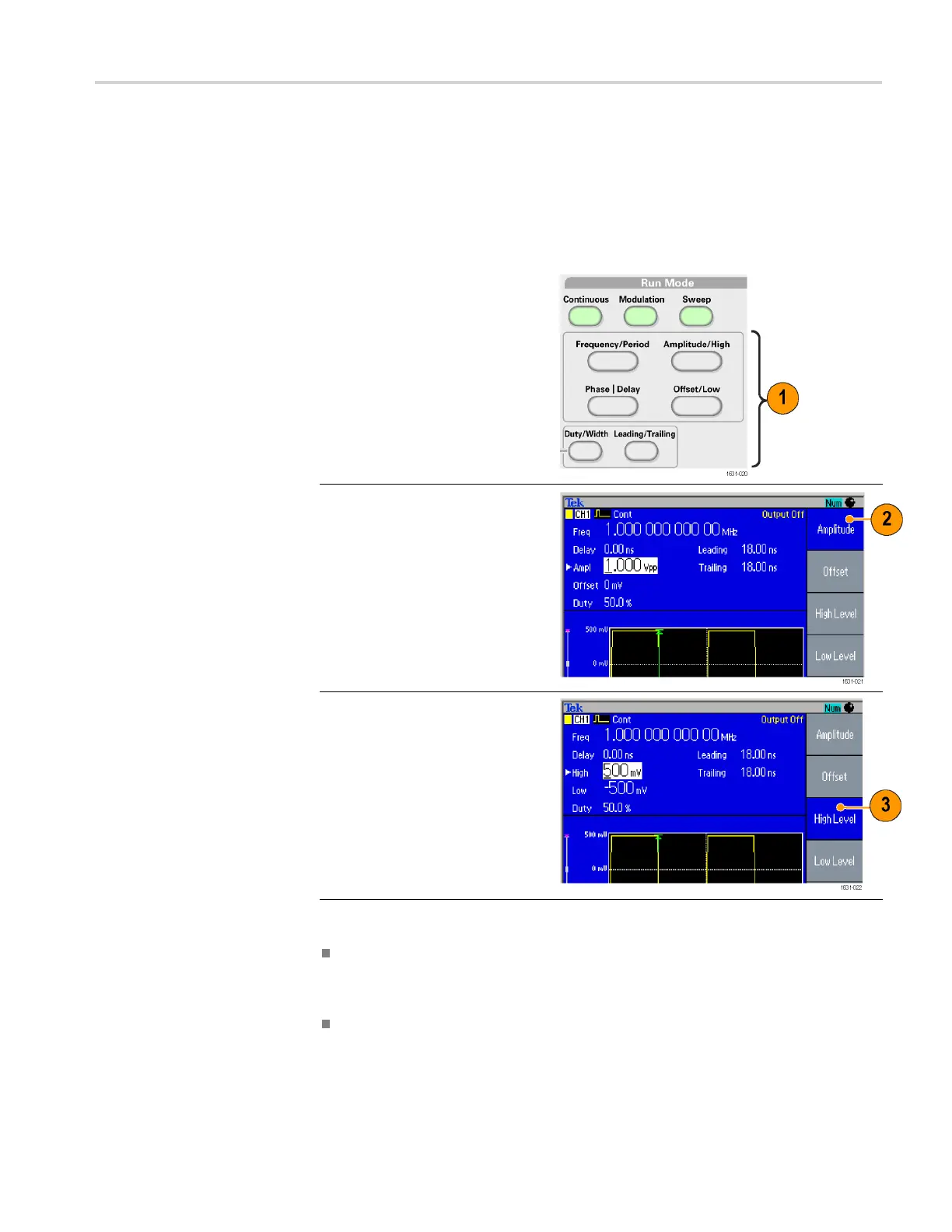

Shortcut buttons are provided for experienced users. The shortcut buttons allow
you to select a setup parameter and enter a numeric value using the front panel
controls. By
using the shortcut buttons, you can select a waveform parameter
without using any bezel menu selection.
1. Shortcut buttons are located
below the Run Mode buttons on
the front panel.
In this example, use pulse
waveform.
2. If you push the Amplitude/High
shortcut button once, Amplitude
becomes
active.
3. If you push the Amplitude/High
shortcut button again, High Level
becomes active.
You can also set parameters for
Frequency/Period, O ffset/Low,
Duty/Width, or Leading/Trailing
inthesameway.
Quick Tips
If y
ou push the Phase | Delay shortcut button, Delay becomes active. Pushing
Phase | Delay again will have no effect, because there is no phase parameter
in the pulse parameter menu.
The Duty/Width and Leading/Trailing shortcut buttons are functional only
when the instrument i s in the pulse p arameter menu.
AFG3000 and AFG3000C Series User Manual 29
