Operating basics

Arbitrary Waveform Edit

Example 2

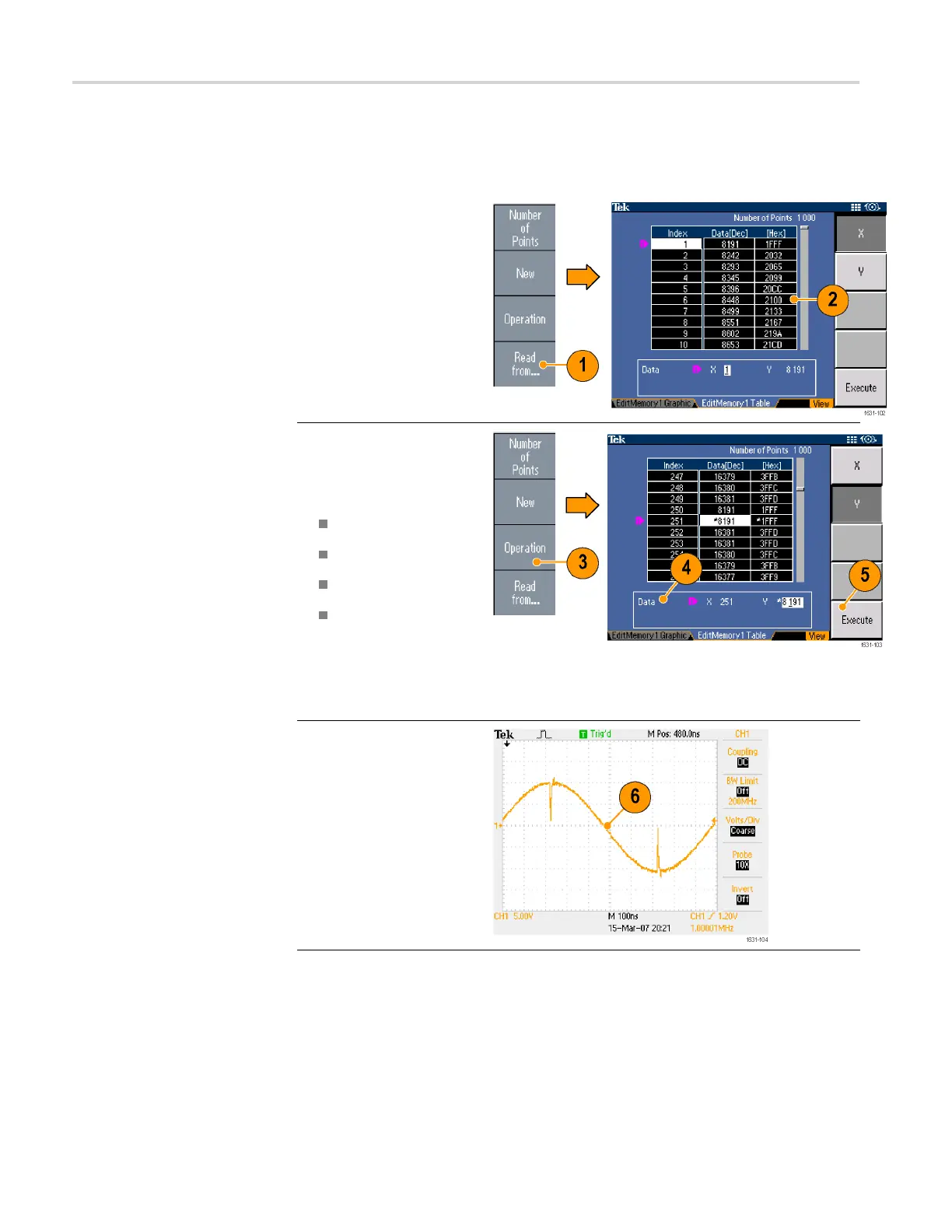

The following e

xample shows how to edit a waveform by data point. In this

example, you can add a noise spike to the sine waveform.

1. Push Read from... and

select User1.

2. Push the front-panel

View button to change

the screen to Table

display.

3. Push Operation and

select Data.

4. Perform the following

data point edit:

X: 250, Y: 8191

X: 251, Y: 8191

X: 750, Y: 8191

X: 751, Y: 8191

5. After each data edit,

push Execute to

implement the edit

operation. Save this

waveform to User3.

6. This is an example of an

oscilloscope screen for

the U ser3 waveform.

52 AFG3000 and AFG3000C Series User Manual
