Brief procedures
5. Click the Start
button to execute the diagnostics.
The internal diagnostics perform an exhaustive verification of proper
instrument fu
nction. This verification may take several minutes. When the
verification is completed, the resulting status will appear in the dialog box.
6. Verify that
Pass appears as Status in the dialog box when the diagnostics
complete.
7. Click the Cl
ose button.
Calibration
Equipment Prerequisites
None Power on the instrument and allow a
20 minute warm-up before doing this
procedure.
1. From the File and Utilities tab, select System.
2. Click the Diagnostics & Calibration button and then select Calibration.

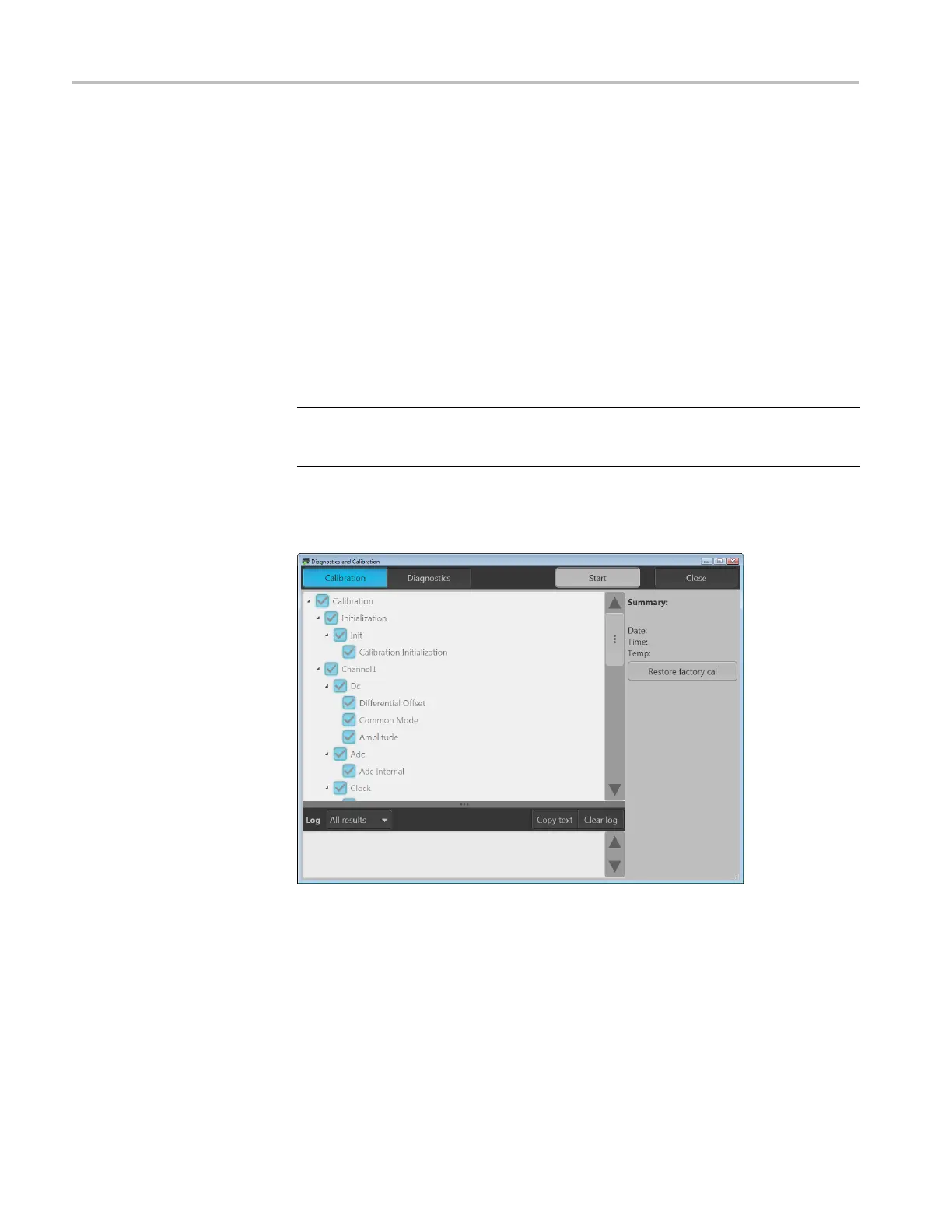

Figure 2-3: Calibration dialog box
3. Click the Start button to start the routine.
4. Verify that Pass appears in the Summary column for all items when the
calibration completes.
5. Click the Close button.
