Brief procedures
Brief procedu
res
There are thr
ee procedures in this section that provide a quick way to confirm
basic functionality and proper adjustment:
Diagnostic
s
Calibration
Functional Test
Diagnost
ics
The following steps run the internal routines that confirm basic functionality
and proper adjustment.
Equipment Prerequisites
None None
1. Discon
nect all the cables from the output channels.
2. From the File and Utilities tab, sele ct System.
3. Click the Diagnostics & Calibration button and then select Diagnostics.

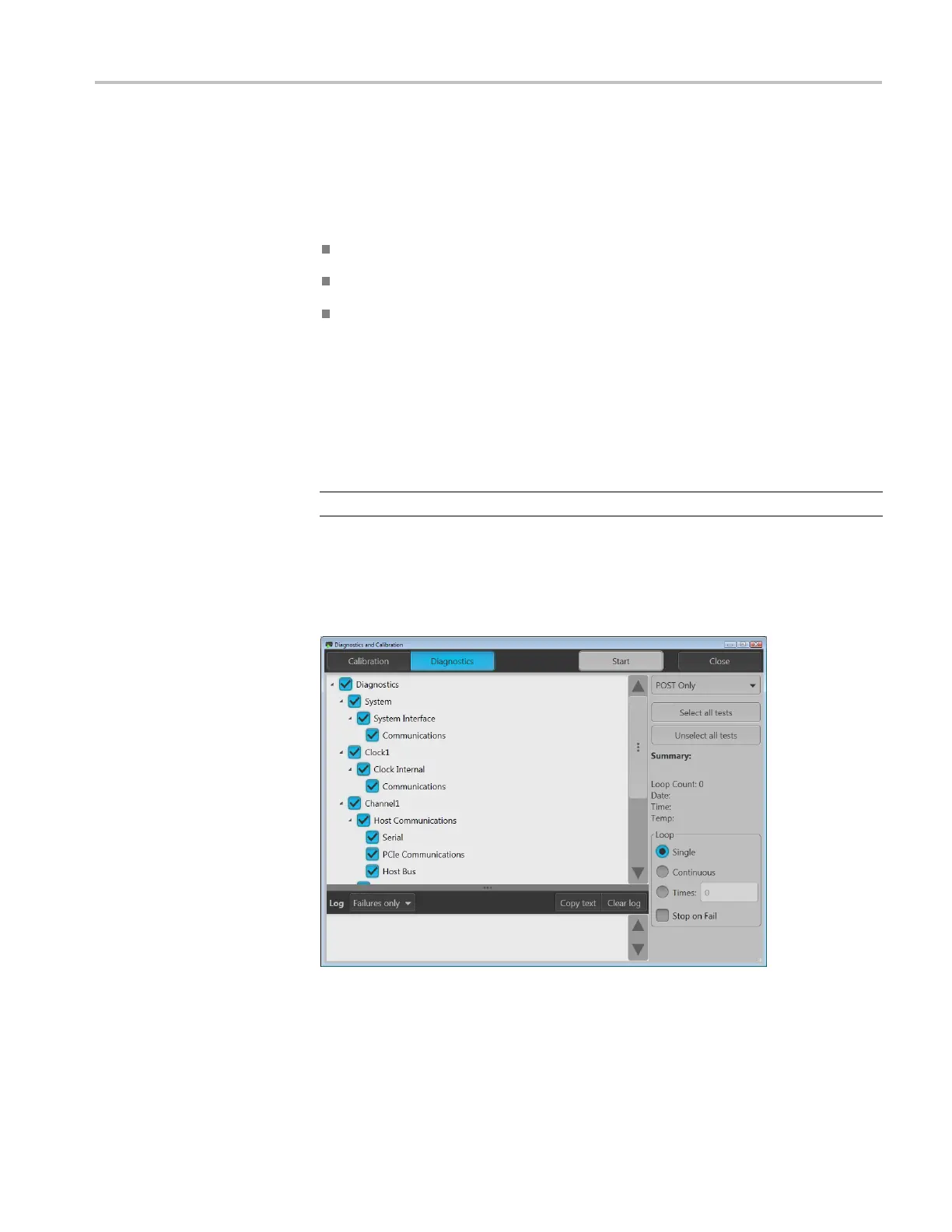

Figure 2-2: Diagnostics dialog box
4. In the Diagnostics dialog box, confirm that all the check boxes are selected. If
they are not all selected, click the Select all tests button.
AWG70000A Series and AWGSYNC01 Technical Reference 2–7
