Performance verification procedures
Typical output control
screen

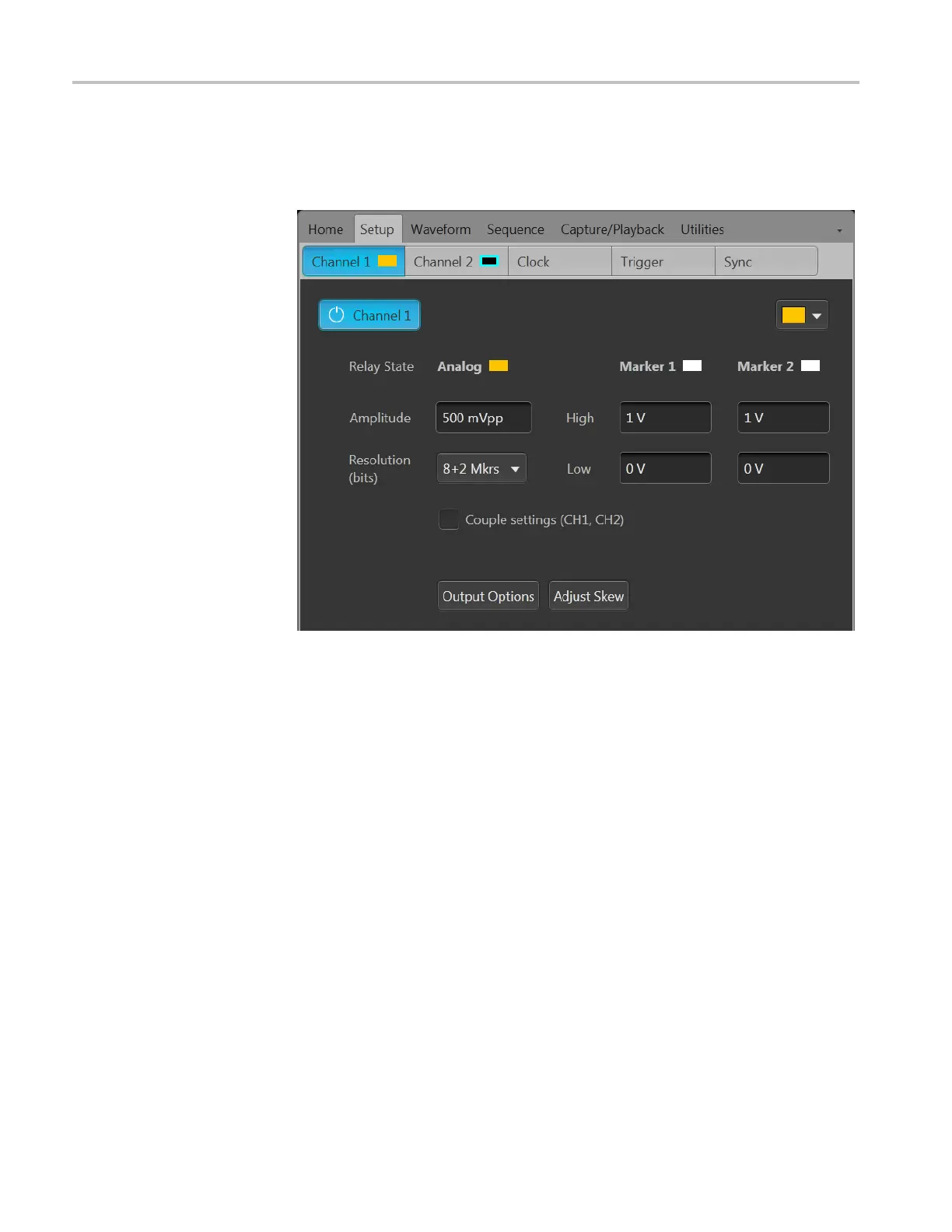

The screen shot
below shows the controls that display when you are setting
up a typical output waveform. In this example, the Channel 1 Analog output
parameters are displayed.
2–6 AWG70000A Series and AWGSYNC01 Technical Reference
