Brief procedures

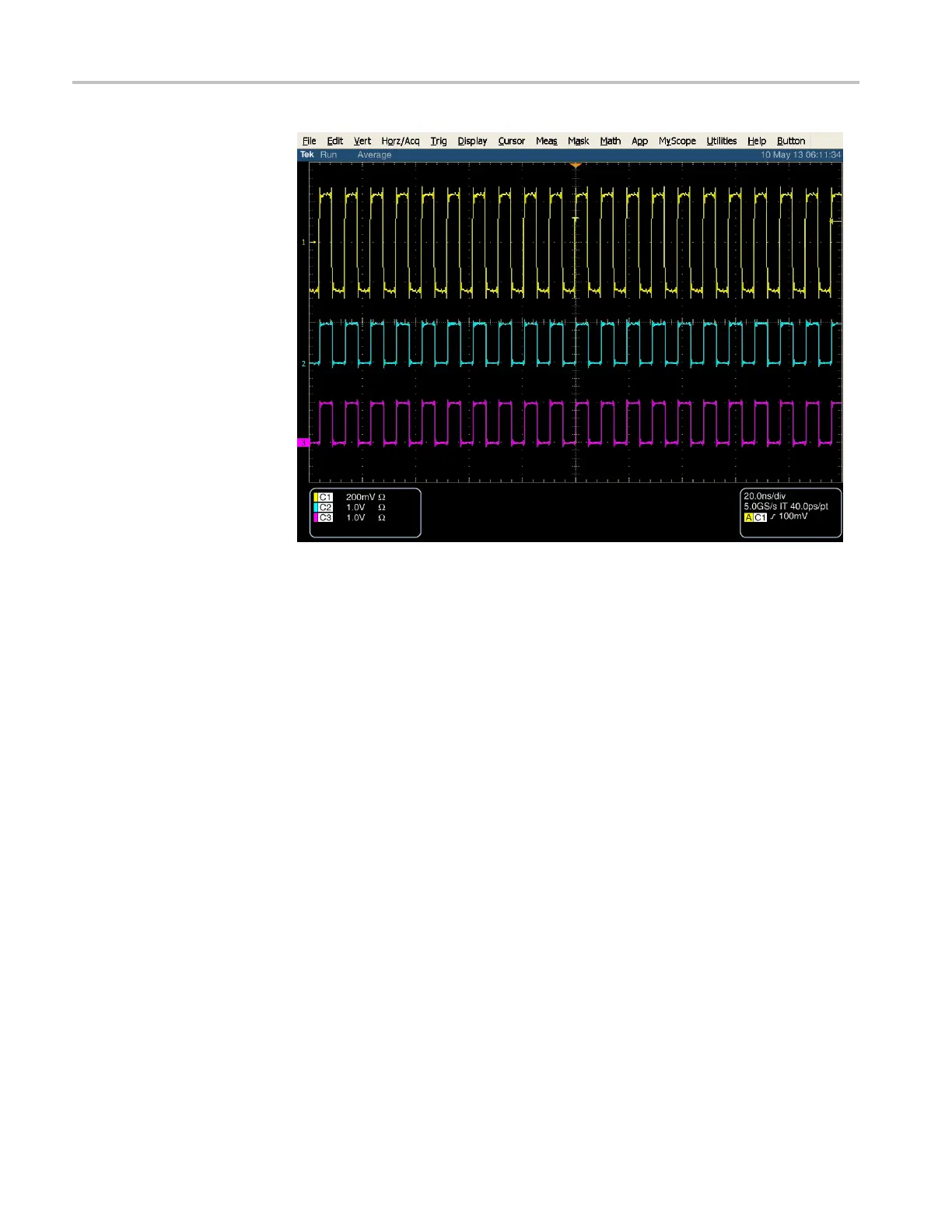

Figure 2-5: Output waveform from the channel, marker 1, and marker 2 connectors
17. Press the All Outputs button again to disable the channel 1 output.
18. If you are testing an AWG70002A, repeat the test for the Channel 2, Marker 1,
and Marker 2 outputs.
19. Disconnect the test se tup.
2–12 AWG70000A Series and AWGSYNC01 Technical Reference
