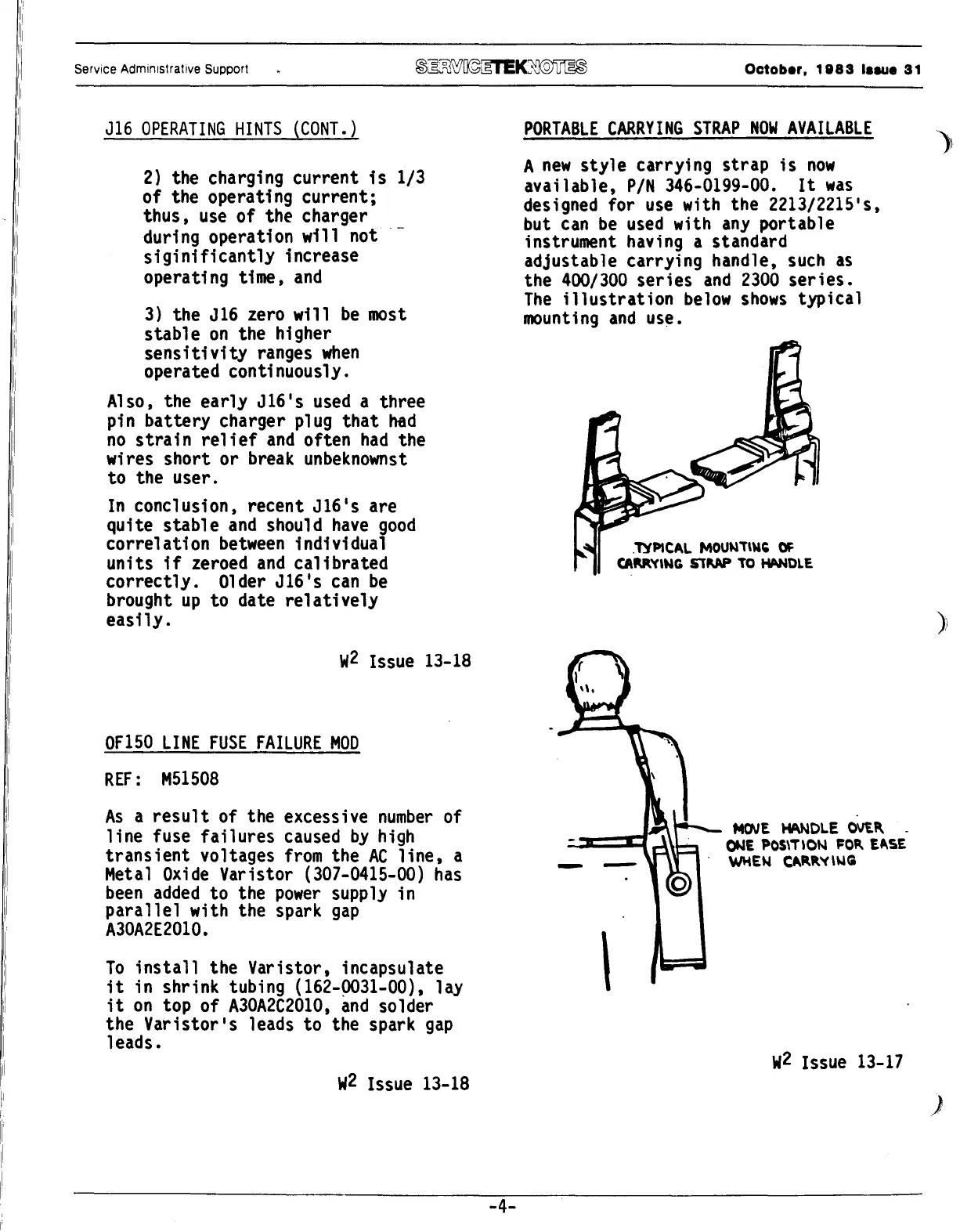

Service Administrative Support
Jl6
OPERATING
HINTS
(CONT.)
2)
the charging current
is
1/3
of the operating current;
thus,
use
of the charger
during operation will not
siginificantly
increase
operating time,
and
3)
the
Jl6
zero will
be
most
stable
on
the higher
sensitivity
ranges
when
operated continuously.
Also, the early
Jl6's
used
a three
pin battery charger plug
that
had
no
strain
relief
and
often
had
the
wires short or break
unbeknownst
to the user.
In
conclusion, recent
Jl6's
are
quite stable
and
should
have
good
correlation
between
individual
units
if
zeroed
and
calibrated
correctly. Older
Jl6's
can
be
brought
up
to date
relatively
easily.
w2
Issue
13-18
OF150
LINE
FUSE
FAILURE
MOD
REF:
M51508
As
a
result
of the excessive
number
of
line fuse
failures
caused
by
high
transient
voltages
from
the
AC
line,
a
Metal
Oxide
Varistor (307-0415-00)
has
been
added
to the
power
supply in
parallel
with the spark
gap
A30A2E2010.
To
install
the Varistor, incapsulate
it
in shrink tubing (162-9031-00), lay
it
on
top of
A30A2C2010,
and
solder
the Varistor's leads to the spark
gap
leads.
w2
Issue
13-18
-4-
October,
1983
la-,•
31
PORTABLE
CARRYING
STRAP
NOW
AVAILABLE
A
new
style
carrying strap
is
now
available,
P/N
346-0199-00.
It
was
designed for
use
with the 2213/2215's,
but
can
be
used
with
any
portable
instrument having a standard
adjustable carrying handle,
such
as
the
400/300
series
and
2300
series.
The
illustration
below
shows
typical
mounting
and
use.
.TYPICAL
MOUt,mw;
Of
CAM.'tlWG
SlMP
TO
HANDLE
I -
---
MCNE
HANO
LE
OVEP.
OWE
POS\T
ION
FOR
EASE
WliEN
CARI\'(
\WC.
w2
Issue
13-17
)!
)
