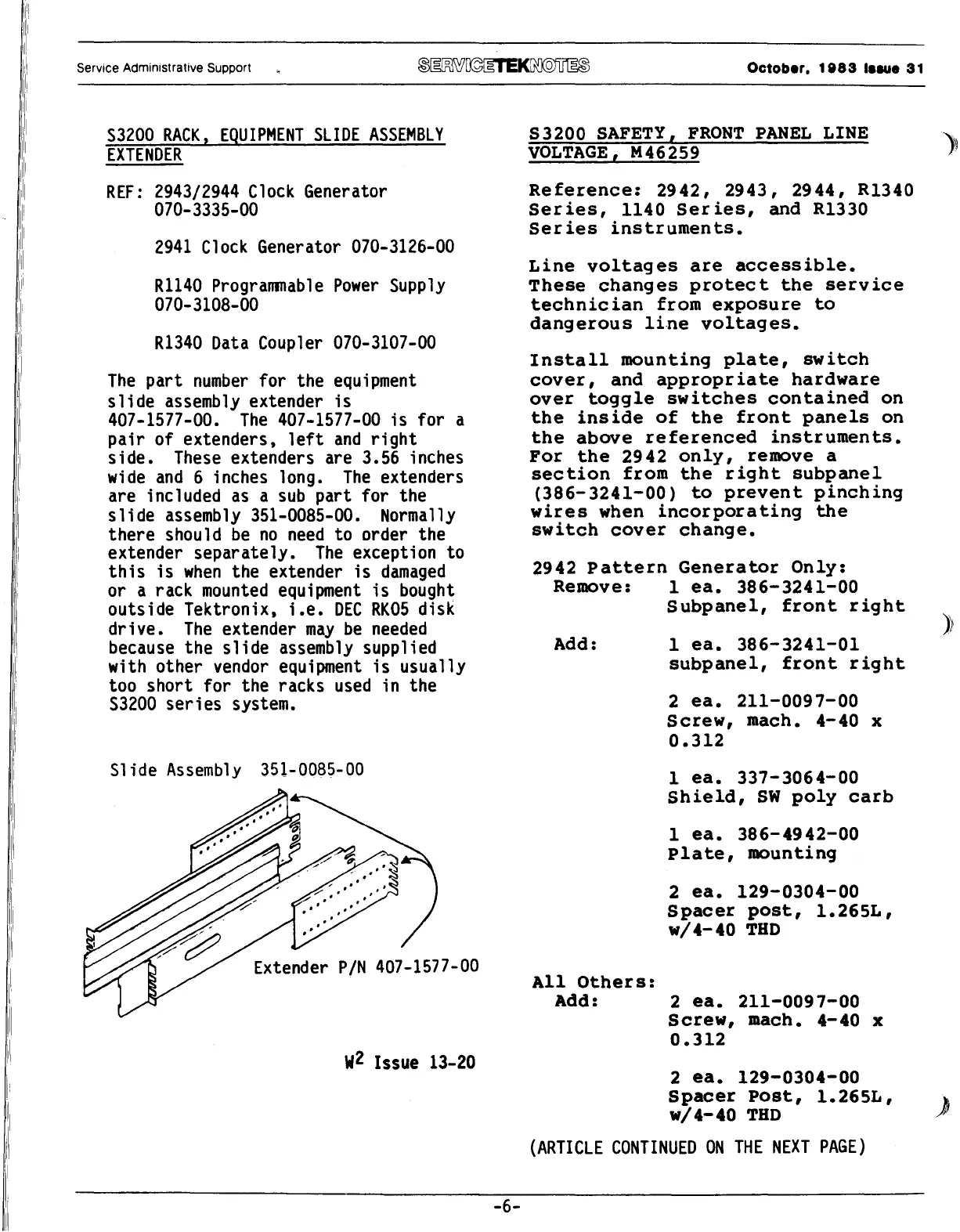

Service Administrative Support
S3200 RACK, EQUIPMENT SLIDE ASSEMBLY
EXTENDER
REF: 2943/2944 Clock Generator
070-3335-00
2941 Clock Generator 070-3126-00
Rll40 Programnable Power Supply
070-3108-00
Rl340 Data Coupler 070-3107-00
The part number for the equipment
slide assembly extender is
407-1577-00. The 407-1577-00 is for a
pair of extenders, left and right
side. These extenders are 3.56 inches
wide and 6 inches long. The extenders
are included as a sub part for the
slide assembly 351-0085-00. Normally
there should be no need to order the
extender separately. The exception to
this is when the extender is damaged
or a rack mounted equipment is bought
outside Tektronix, i.e. DEC RK05 disk
drive. The extender may be needed
because the slide assembly supplied
with other vendor equipment is usually
too short for the racks used in the
S3200 series system.
Slide Assembly 351-0085-00
Extender P/N 407-1577-00
w2 Issue 13-20
-6-
October, 1883 laaue 31
S3200 SAFETY, FRONT PANEL LINE
VOLTAGE, M46259
Reference: 2942, 2943, 2944, Rl340
Series, 1140 Series, and Rl330
Series instruments.
Line voltages are accessible.
These changes protect the service
technician from exposure to
dangerous line voltages.
Install mounting plate, switch
cover, and appropriate hardware
over toggle switches contained on
the inside of the front panels on
the above referenced instruments.
For the 2942 only, remove a
section from the right subpanel
(386-3241-00) to prevent pinching
wires when incorporating the
switch cover change.
2942 Pattern Generator Only:
Remove: 1 ea. 386-3241-00
Subpanel, front right
Add: 1 ea. 386-3241-01
subpanel, front right
All Others:
2 ea. 211-0097-00
Screw, mach. 4-40 x
0.312
1 ea. 337-3064-00
Shield, SW poly carb
1 ea. 386-4942-00
Plate, mounting
2 ea. 129-0304-00
Spacer post, l.265L,
w/4-40 TBD
Add: 2 ea. 211-0097-00
Screw, mach. 4-40 x
0.312
2 ea. 129-0304-00
Spacer Post, 1.265L,
w/4-40 TBD
(ARTICLE CONTINUED ON THE NEXT PAGE)
))
)
