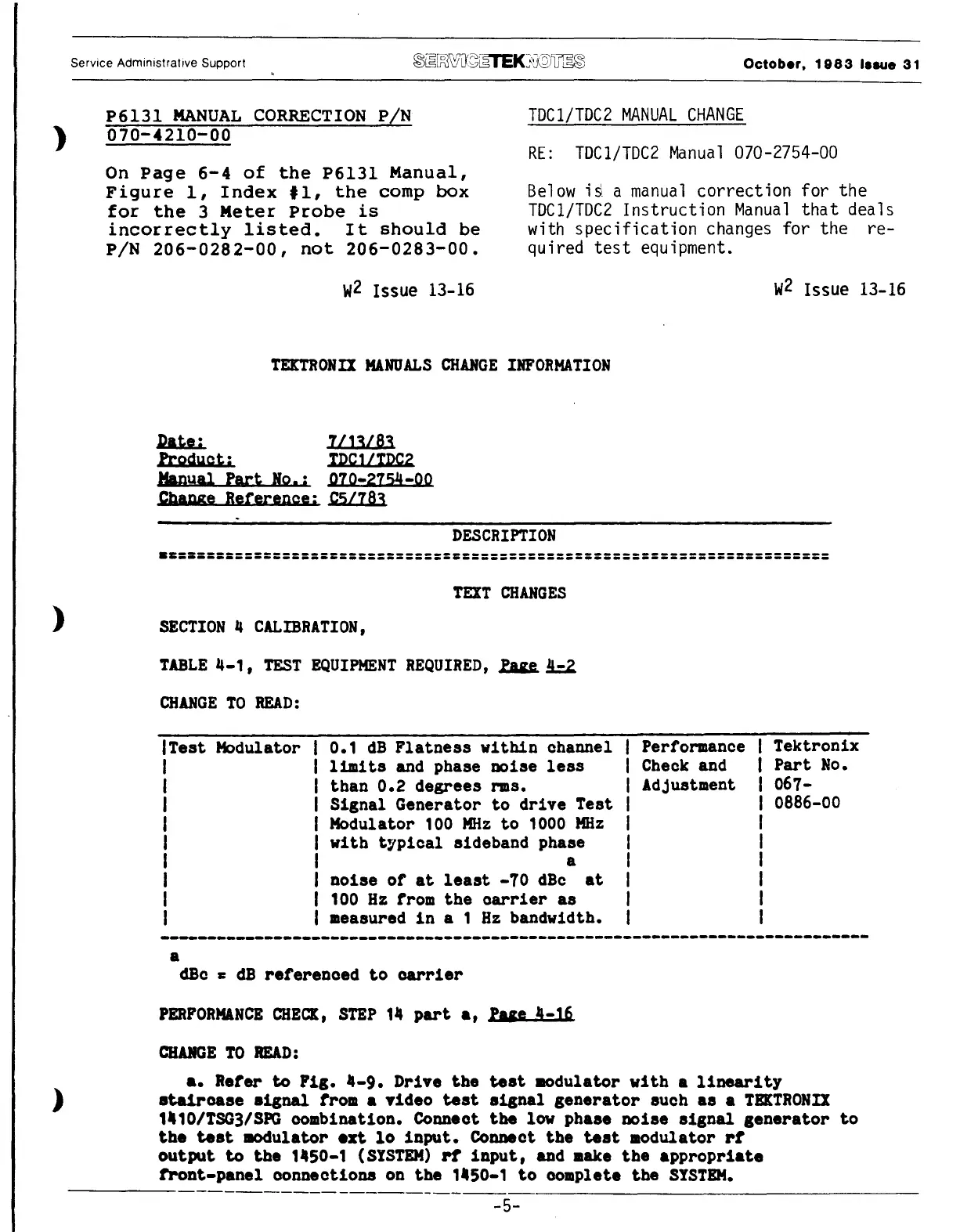

Service Administrative Support
October, 1983 laaue 31
P6131 MANUAL CORRECTION P/N
070-4210-00
TDC1/TDC2 MANUAL CHANGE
RE: TDC1/TDC2 Manual 070-2754-00
On Page 6-4 of the P6131 Manual,
Figure 1, Index fl, the comp box
for the 3 Meter Probe is
incorrectly listed. It should be
P/N 206-0282-00, not 206-0283-00.
Below i~ a manual correction for the
TDC1/TDC2 Instruction Manual that deals
with specification changes for the re-
quired test equipment.
w2 Issue 13-16
TEITRONII MANUALS CHANGE INFORMATION
Date;
Product;
Manual Part Ho,;
Change Bererenae;
7/]3/83
TDC1/TDC2
070-2754-00
CS/783
DESCRIPTION
w2 Issue 13-16
•======================================================================
TEXT CHANGES
SECTION 4 CALIBRATION,
TABLE 4-1, TEST EQUIPMENT REQUIRED, me. .4.:Z
CHANGE TO READ:
ITest Modulator
I
I
I
I
I
I
I
I
I
0.1 dB Flatness within channel
limits and phase noise less
than 0.2 degrees rms.
Signal Generator to drive Test
Modulator 100 MHz to 1000 MHz
with typical sideband phase
a
noise or at least -70 dBc at
100 Hz rrom the oarrier as
measured in a 1 Hz bandwidth.
Performance
Check and
Adjustment
Tektronix
Part No.
067-
0886-00
---------------------------------------------------------------------------
a
dBc = dB rererenoed to carrier
PERFORMANCE CHECI, STEP,_ part a, Page J&-16
CBAJIGE TO READ:
•• Rerer to Fig. JJ-9. Drive the teat 1t0dulator with a linearity
stairoaae signal trom a video test signal generator such aa a TEICTRONII
1,10/TSG3/SPG combination. Conneot the low phase noise signal generator to
the teat IIOdulator ext lo input. Connect the teat modulator rt
output to the 1,so-1 (SYSTEM) rt input, and make the appropriate
tront-panel oonnectiona on the 1,so-1 to oomplete the SYSTEM.
-5-
