Tektronix DMM4020 User Manual

Making Measurements
Measuring Current 4
4-11
W Caution
To avoid blowing the current input fuse or possibly damaging
the Meter:
• Current measurements between 400 mA and 10 A should be
measured using only the 10 A and LO input connectors.
• BEFORE applying power to the circuit to be measured,
ensure the test leads are correctly connected to the Meter
inputs appropriate for the expected current.
• Exceeding 440 mA on the 400 mA input connector or
exceeding 11 A on the 10 Amp connector will blow the
internal fuse.
Current measurements expecting to be between 400 mA and 10 A are made using the
Input LO and 10A input connectors as shown in Figure 4-5.
2
INPUT SENSE
HI
LO
FRONT
REAR
10 A
1V
00
mA
4 W
HI
LO
2W/4W
V
300V
FUSED
1000 V CAT I
600V CAT II
4
V AC
I < 400 mA
caw025.eps

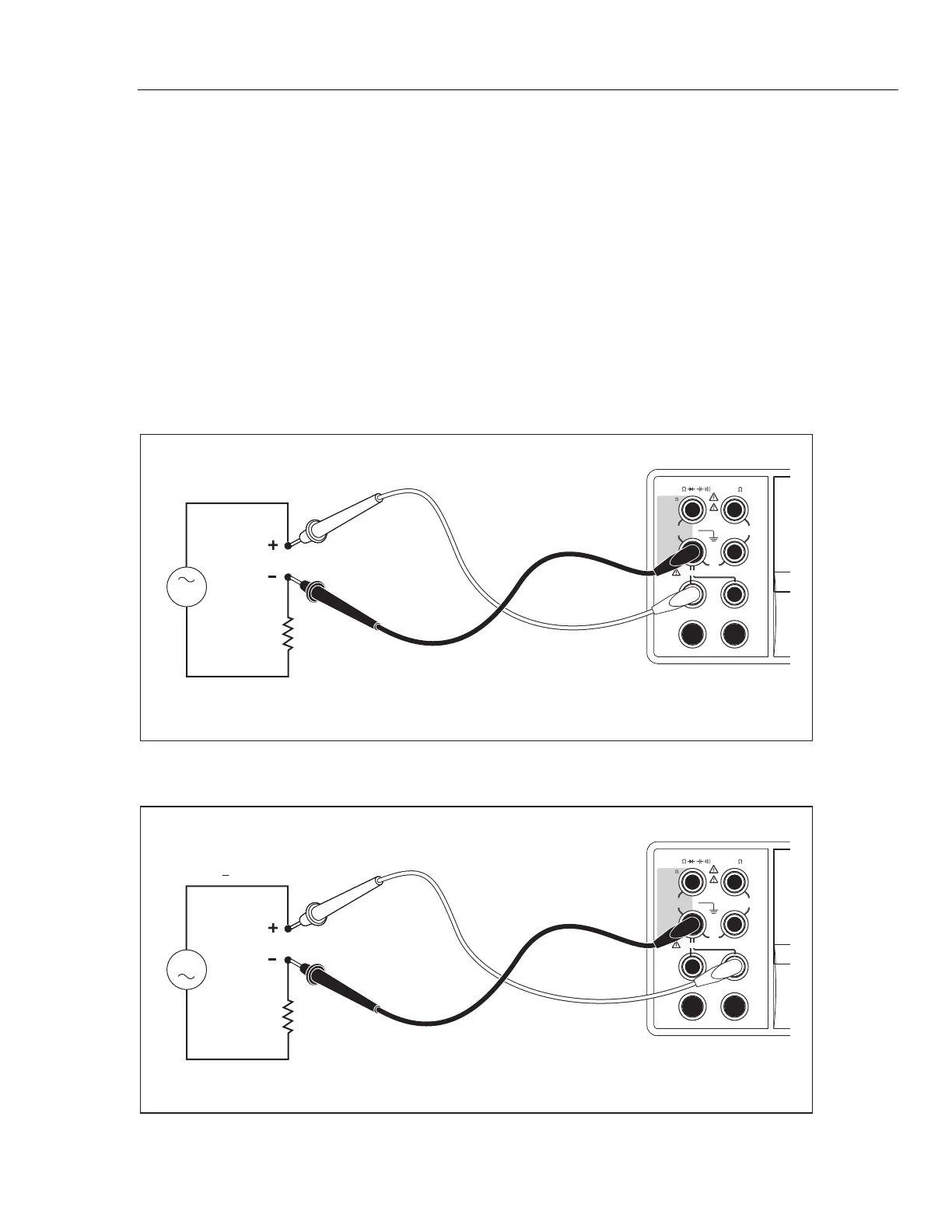

Figure 4-4. Input Connections for Current Measurements Below 400 mA
2
INPUT SENSE
HI
LO
FRONT
REAR
10 A
1V
00
mA
4 W
HI
LO
2W/4W
V
300V
FUSED
1000 V CAT I
600V CAT II
4
V AC
I > 400 mA
and
I
<
10 A
caw026.eps
Figure 4-5. Input Connections for Current Measurements Above 400 mA
