Tektronix DMM4040 Safety And Installation Instructions

Rear Panel Features

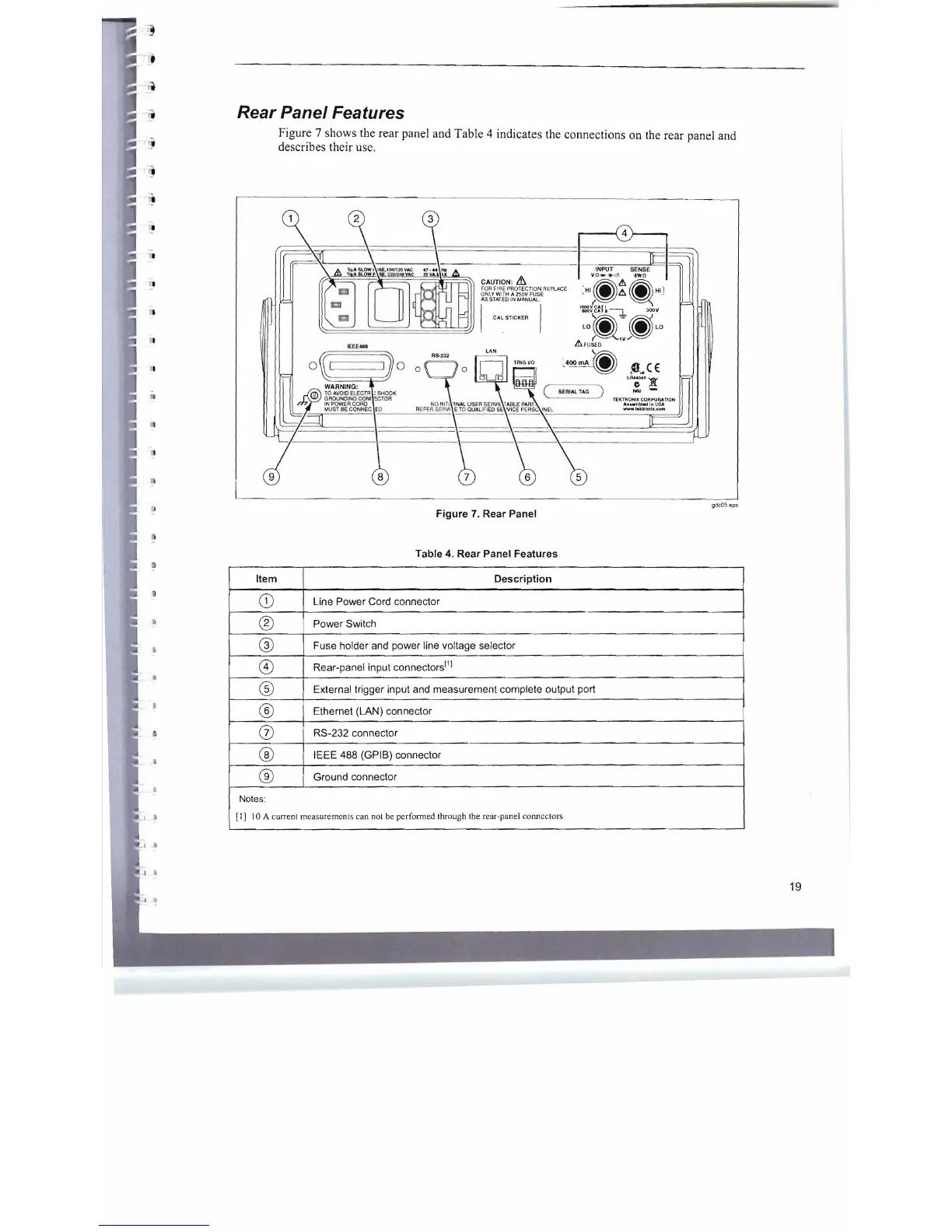

Figure 7 shows the rear panel and Table 4 indicates the connections on the rear panel and
describes their use.
r----i 4 }---.
CAUTION: &.
FOR FI RE PRO TEC TI ON REPLACE
ONL Y W IT H A lSOV FUSE
AS STA TED IN MANUAl.
CAL STICKER
LAN
SERIAL lAG )
gdcOS eps
Figure 7. Rear Panel
Table 4. Rear Panel Features
J
•
•
Item Description
CD
Line Power Cord connector
®
Power Switch
®
Fuse holder and power line voltage selector
8)
Rear-panel input connectors
f1
!
®
External trigger input and measurement complete output port
®
Ethernet (LAN) connector
(j)
RS-232 connector
®
IEEE 488 (GPIB) connector
®
Ground connector
Notes:
[I] 10 A current measurements can not be performed through the rear-panel connectors
