Tektronix DPO2012

To Next Page

To Previous Page

Trigger Setup

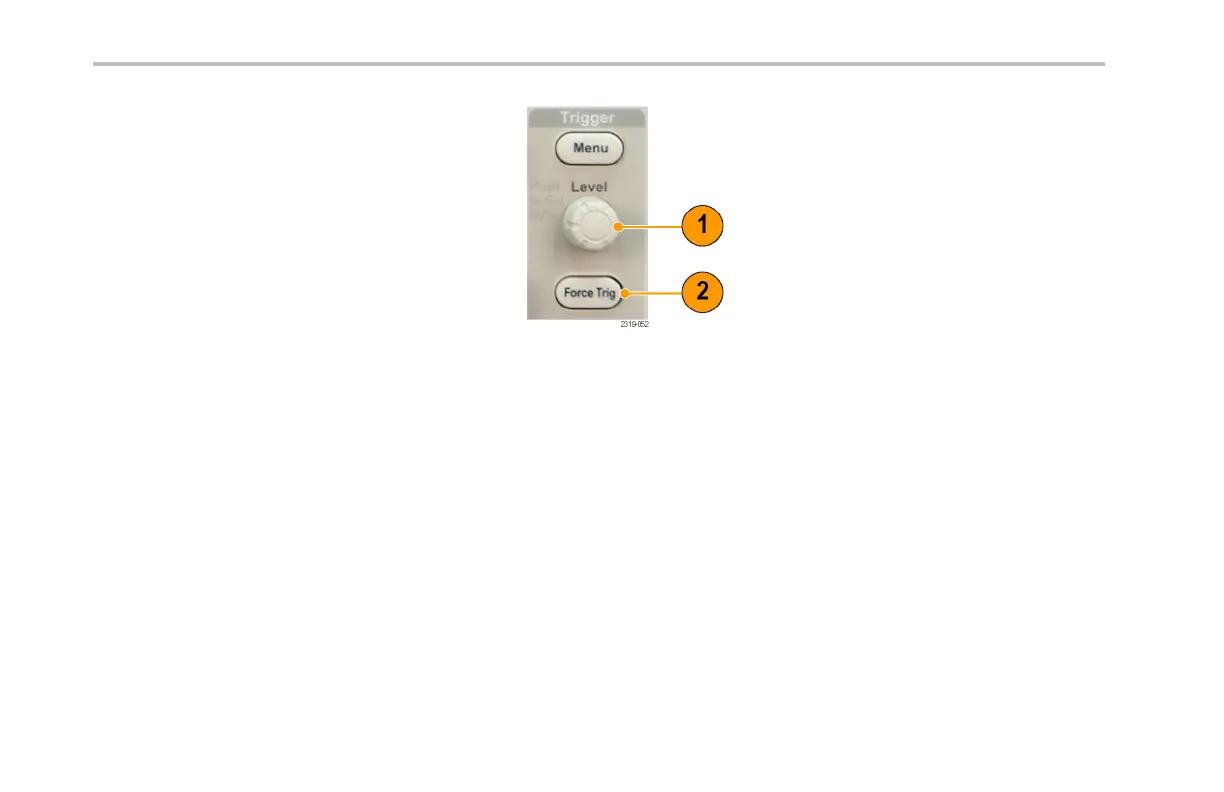

1. Turn the front-panel Trigger Level knob to

adjust the trigger level w ithout going to a

menu.

2. Push the Force Trig button to force the

oscilloscope to trigger.

128 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
