Getting Acquainted with the Oscilloscope

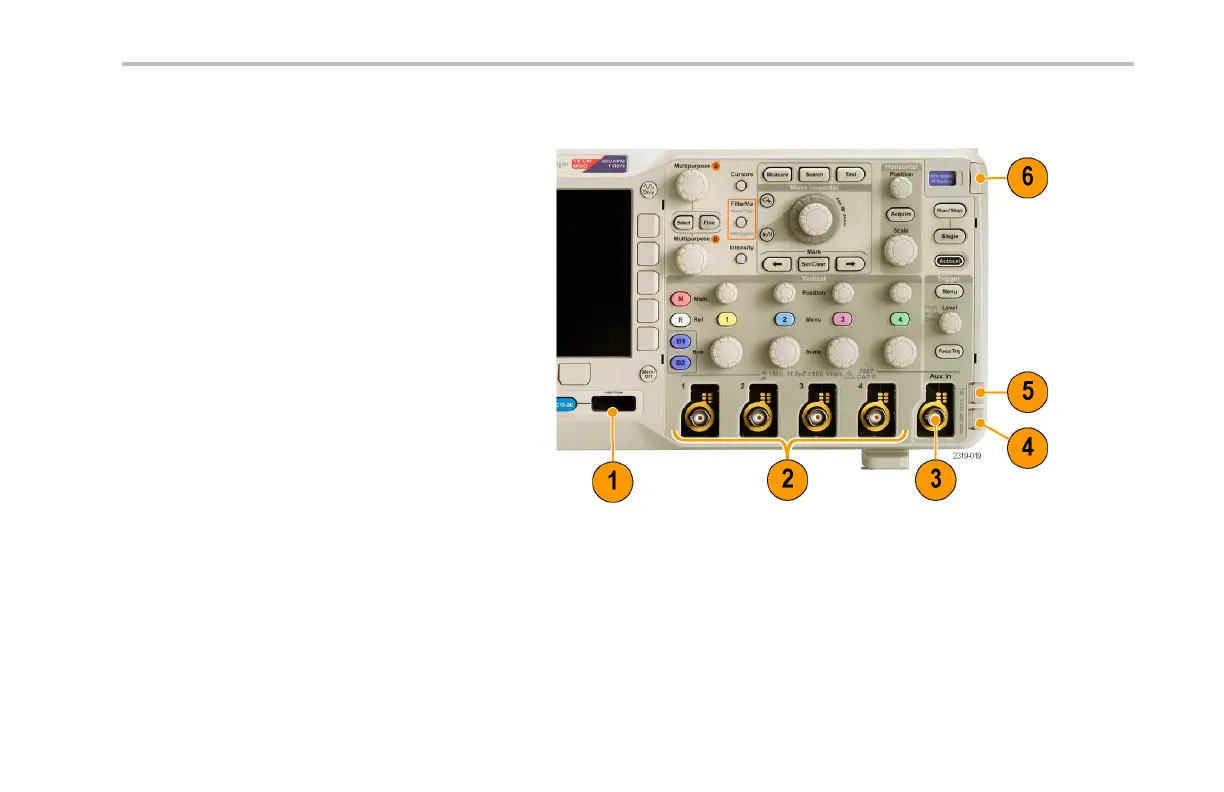

Front-Panel Connectors
1. Digital Probe Connector (MSO2000 series
only).
2. Channel 1, 2,(3, 4). Channel inputs with
TekVPI Versatile Probe Interface.
3. Aux In. Trigger level range is adjustable
from +12.5 V to –12.5 V.
4. PROBE COMP. Square wave signal
source to compensate probes.
Output voltage: 0 V to 5 V
Frequency: 1 kHz
5. Ground.
6. Application Module Slots.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 71
