Installation

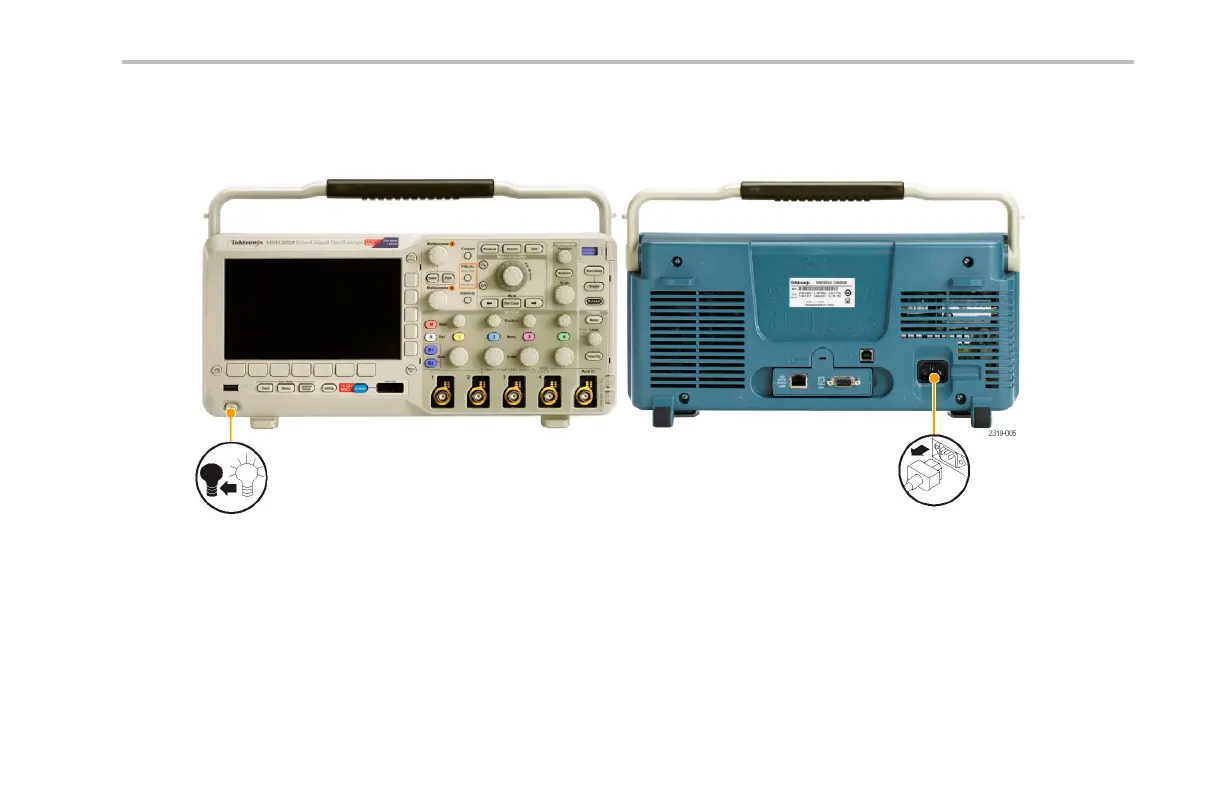

Powering Off the Oscilloscope

To p ower off the o scilloscope and remove the power cord:

DPO2000 and MSO2000 Series Oscilloscopes User Man ual 17
