Getting
Acquainted
with
the
Oscilloscope

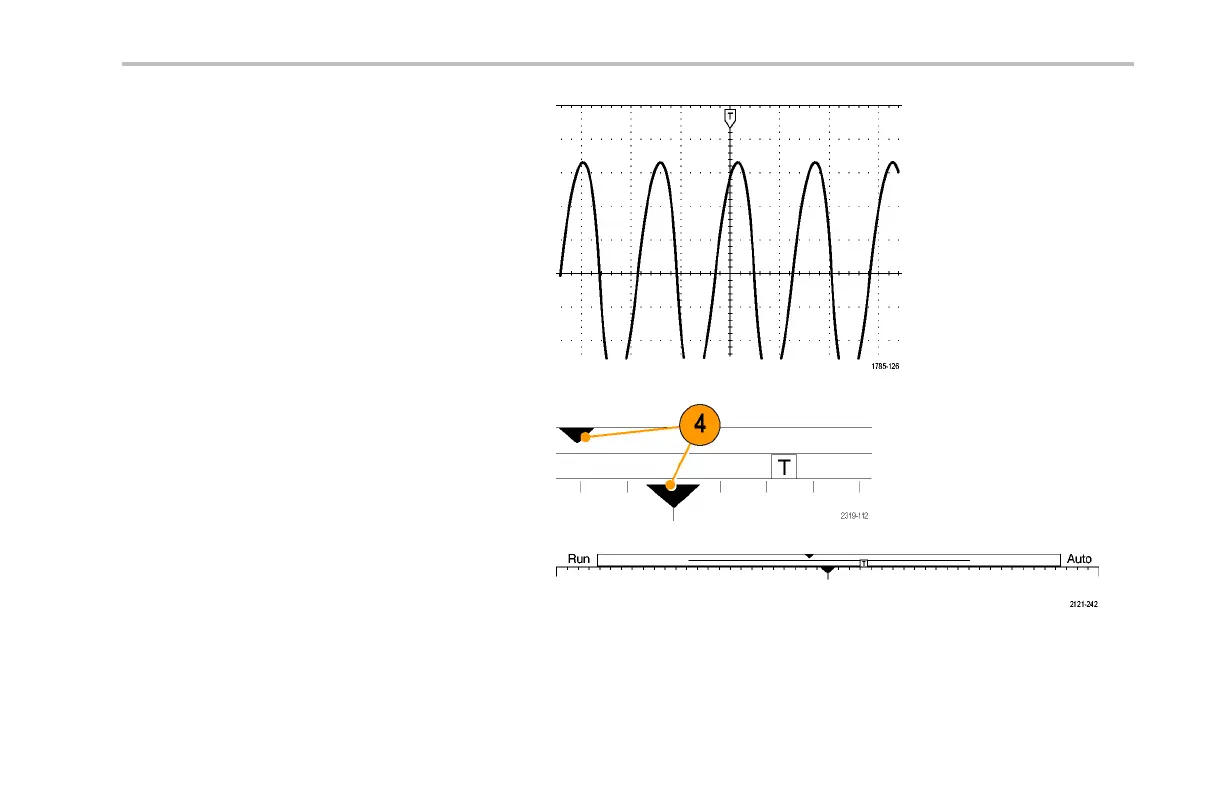

3.
The
trigg
er
position
icon
shows
where
the
trigger
occurred
in
the
acquisition.
4.
The
expansion
point
icon
(an
orange
triangle)
shows
the
point
that
the
horizon
tal
scale
expands
and
compresses
around.
5.
The
waveform
record
view
shows
the
trigger
location
relative
to
the
waveform
record.
The
line
color
corre
sponds
to
the
selected
waveform
color
.
DPO2000
and
MSO2000
Series
Oscilloscopes
User
Man
ual
65
82
84
