Getting Acquainted with the Oscilloscope

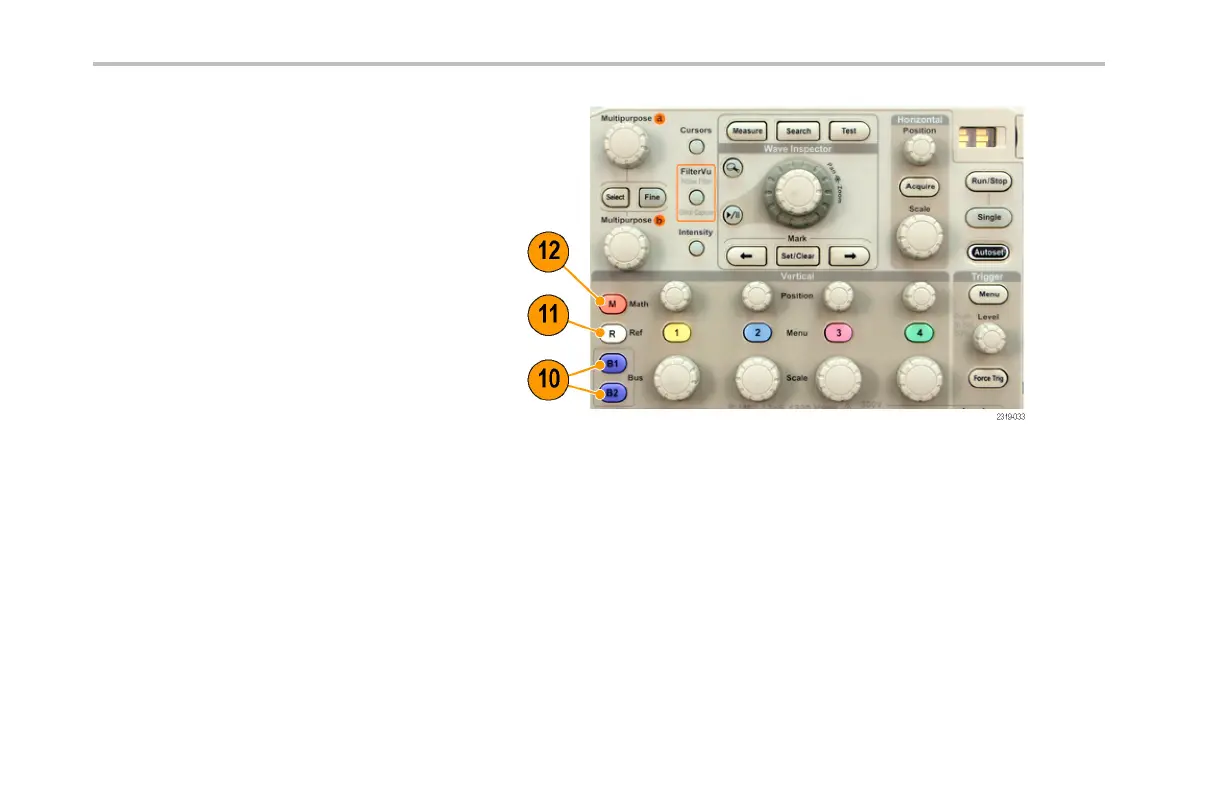

10. B1 or B2. Pushtodefine and display
a se rial bus if you have the appropriate
module application keys. The DPO2AUTO
module s upports CAN and LIN buses. The
DPO2EMBD module supports I
2
Cand
SPI. The DPO2COMP module supports
RS-232, RS-422, R S-485, and UART
buses.
Parallel bus support is available on
MSO2000 products.
Also, push the B1 or B2 button to display
or remove the corresponding bus from the
display.
11. R. Push to manage reference waveforms,
including the display or removal of each
reference w aveform from the display.
12. M. Push to manage the math waveform,
including the display or removal of the
math waveform from the display.
54 DPO2000 and MSO2000 Series Oscilloscopes User Manual
