Getting Acquainted with the Oscilloscope

12. ← Prev. Push to jump to the previous

waveform mark.

13. Set/Cle ar Mark. Push to establish or

delete a wavefo rm mark.

14. → Next. Pushtojumptothenext

waveform mark.

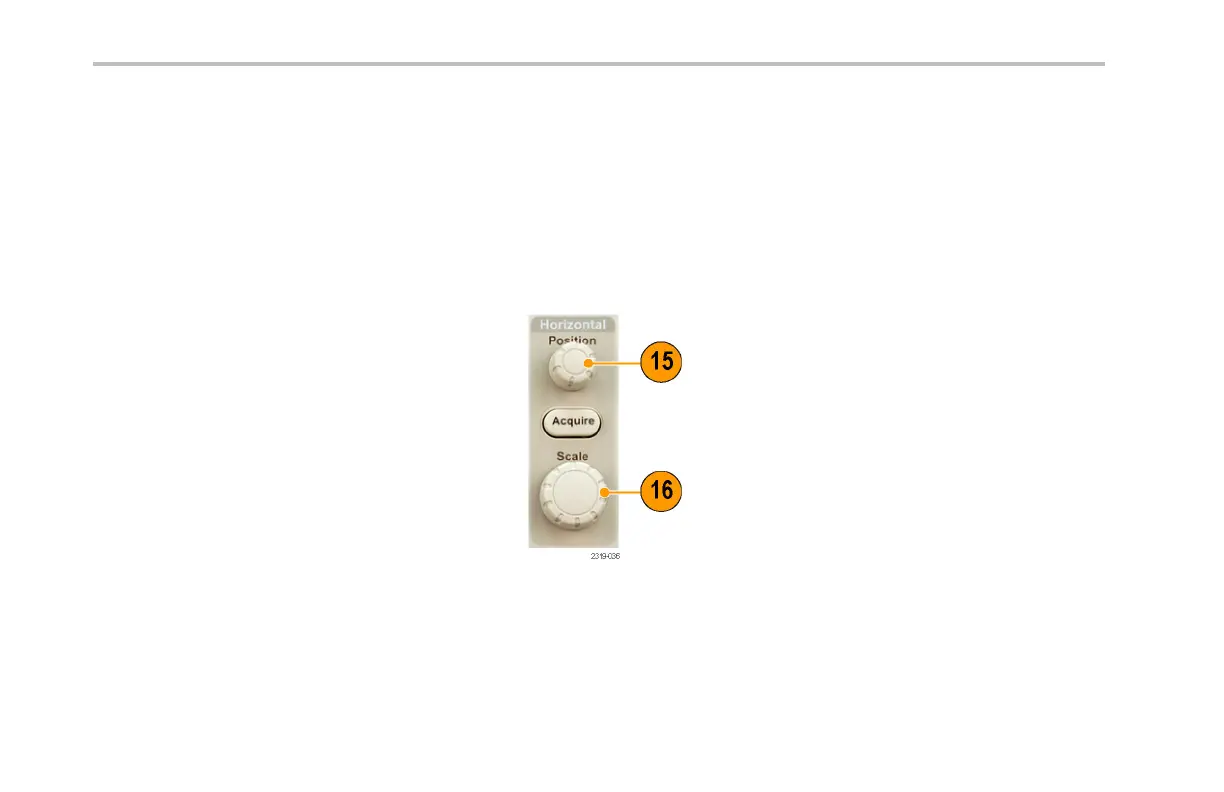

15. Ho rizontal Position. Turn to adjust

the trigger point location relative to the

acquired waveforms. Push Fine to make

smaller adjustments.

16. Ho rizon tal Scale. Turn to adjust the

horizontal scale (time/division).

58 DPO2000 and MSO2000 Series Oscilloscopes User Manual
