Get Acquainted with the Instrument

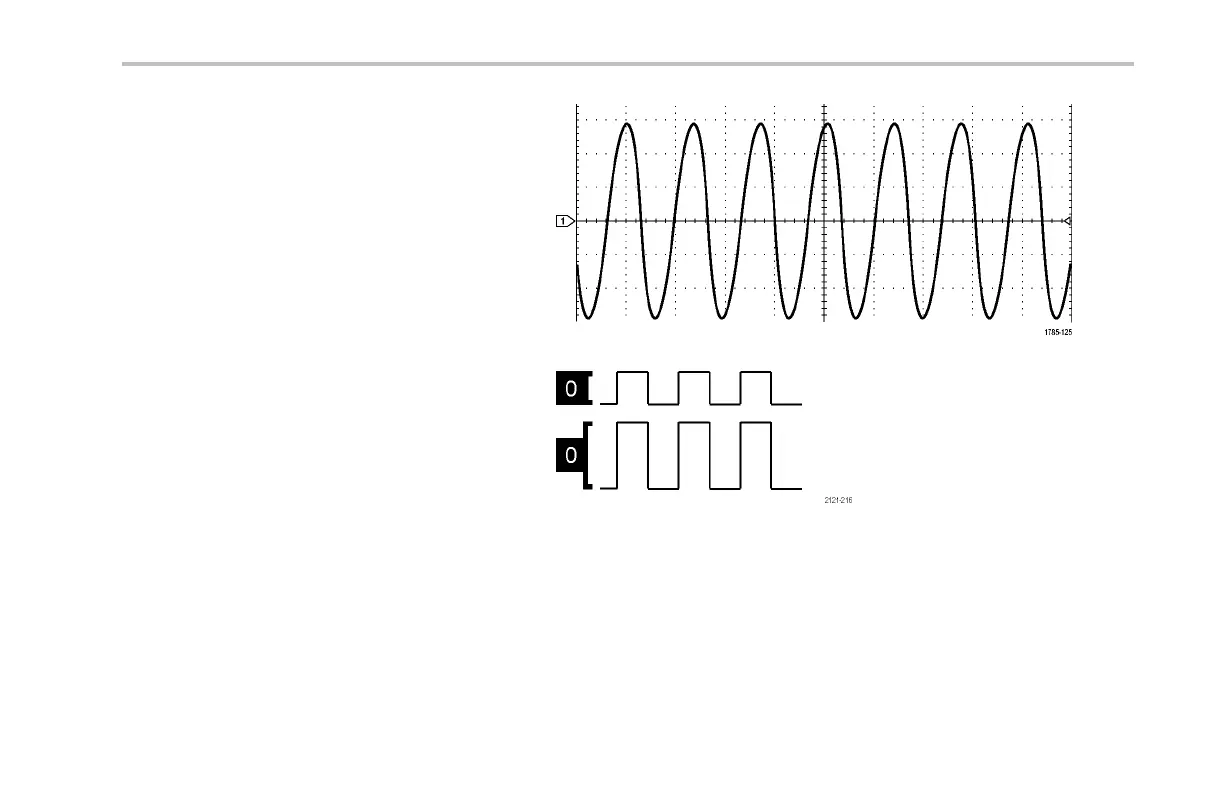

15. For analog channels, the w aveform
baseline indicator shows the zero-volt
level of a waveform (ignoring the effect of
offset). The icon colors correspond to the
waveform colors.
16. For digital channels (MSO4000 Series
only), the baseline indicators point to the
high and low levels. The indicator colors
follow the color code used on resistors.
The D0 ind ica tor is black, the D1 indicato r
is bro wn, the D2 indicator is red, and so on.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 75
