Acquire the Signal

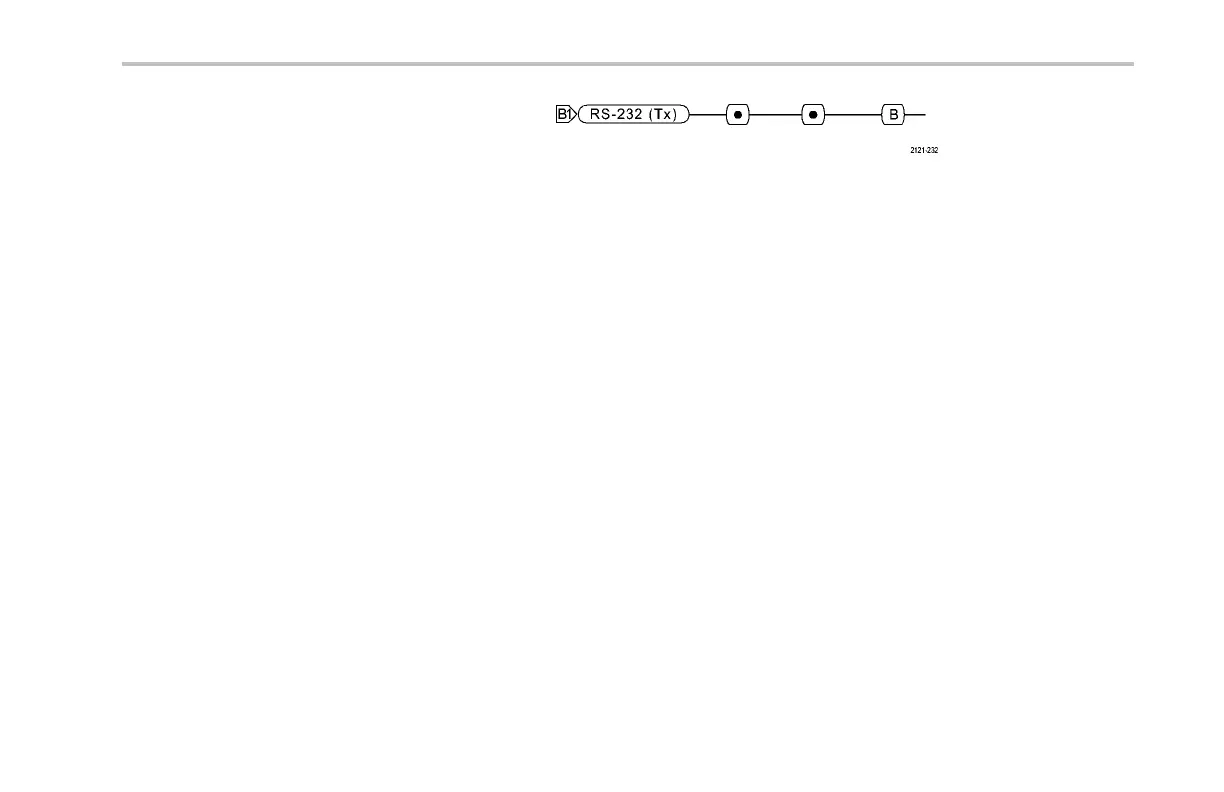

When decoding an RS-232 bus in ASCII mode,
a large dot indicates tha t the value represents
a character outside the printable ASCII range.
Setting Up Digital Channels
Use fro nt-panel b uttons and knobs to set up your instrument to acquire signals using the digital channels.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 123
