Analyze Waveform Data
Saving 10 M Refere nce Waveforms. 10 M reference waveforms are volatile and not saved when the oscilloscope power is
turned off. To keep these waveforms, save them to external storage.
Using Wave Inspector to Manage Long Record Length Waveforms
The Wave Inspector controls (zoom/pan, play/ pause, marks, search) help you to efficiently wo rk with long record length wavefor m s.
To magnify a waveform horizontally, turn the Zoom knob. To scroll through a z oo med waveform, turn the Pan knob.

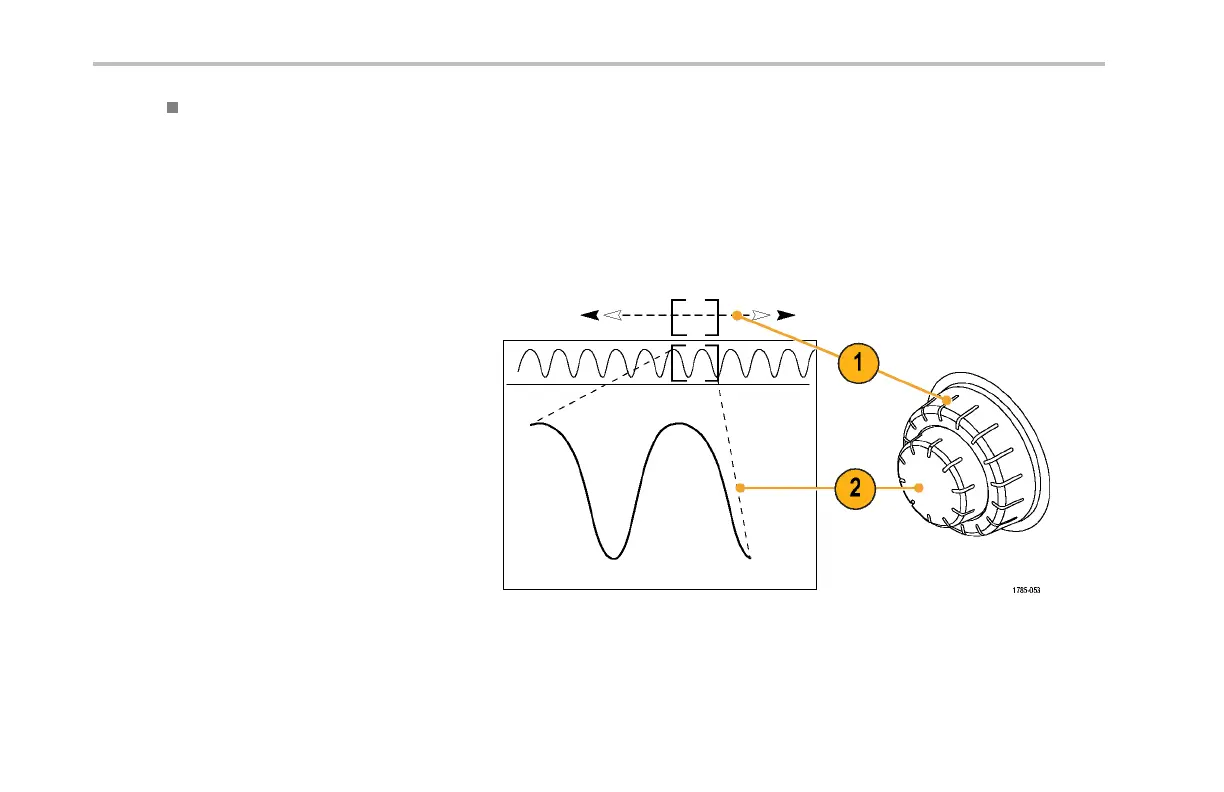

The P an-Zoom Control c onsists of:
1. An outer pan knob
2. An inner zoom knob
224 MSO4000 and DPO4000 Series Oscilloscopes User Manual
