Analyze Waveform Data
Zooming a Waveform
To use zoom:

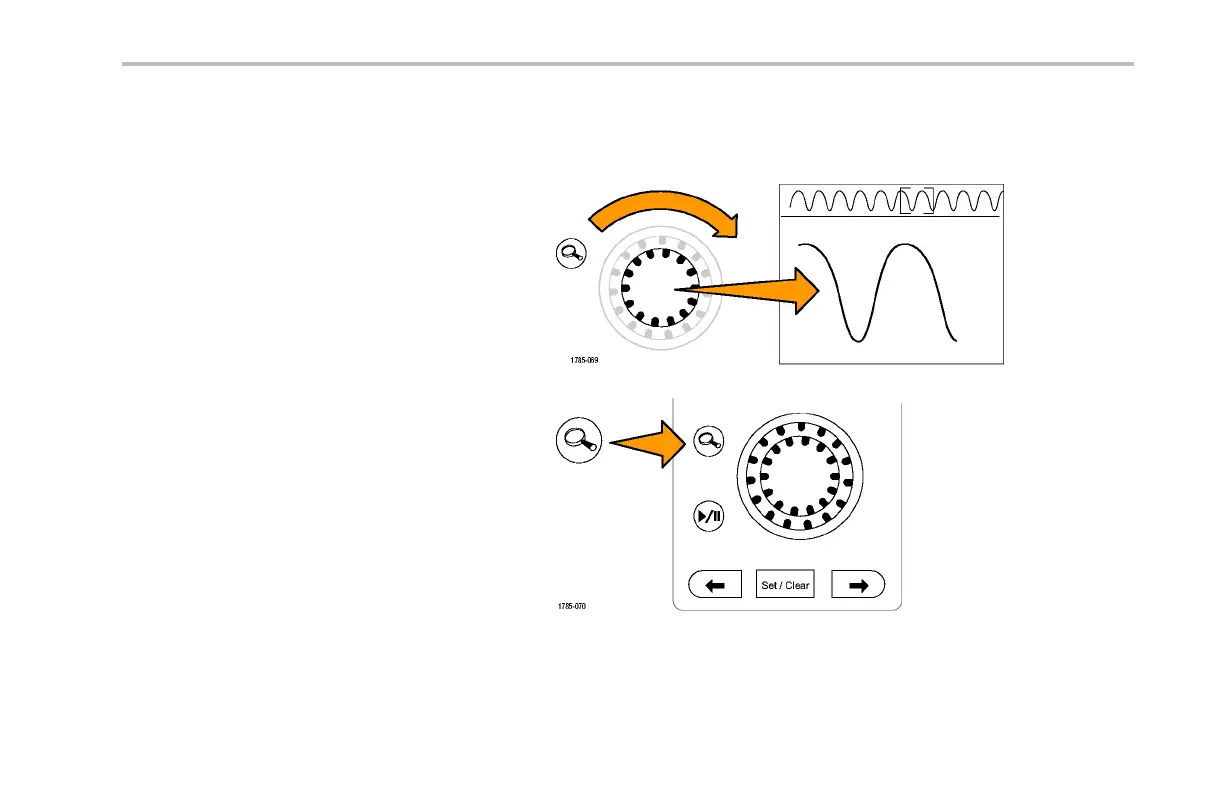

1. Rotate the inner knob on the Pan-Zoom
control clockwise to zoom in on a selected
portion of the waveform. Rotate the knob
counterclockwise to zoom back out.
2. Alternatively, enable or disable the zo om
mode by p ushing the zoom button.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 225
