Analyze Waveform Data
Description Window
Blackman-Harris:
This is the best window for measuring the amplitude of frequencies but worst at resolving
frequencies.
Use Blackman -Harris for measuring pre dominantly single frequency waveforms to look for higher
order harmonics.
Using Advanced Math
The advanced math feature lets you create a custom math waveform expression that can incorporate active and reference
waveforms, measurements, and/or numeric constants. To use this feature:

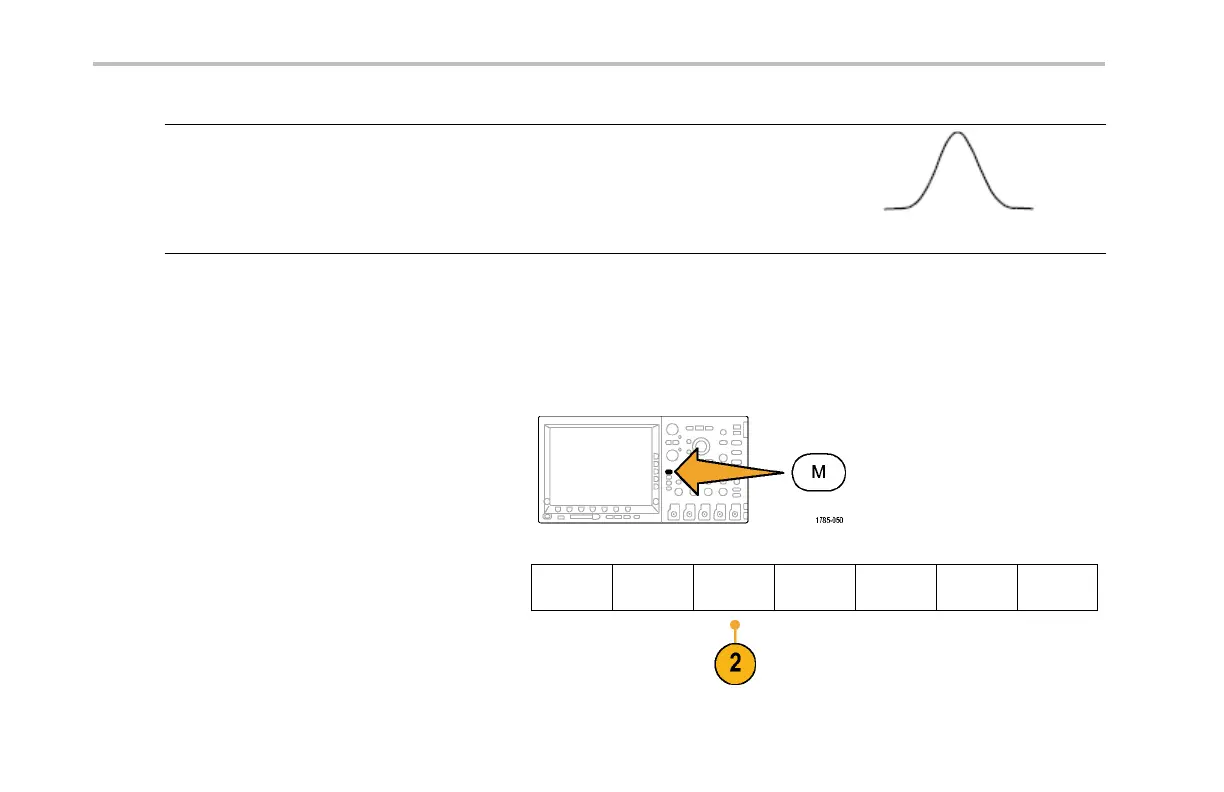

1. Push Math .
2. Push Advanced Math.
Dual Wfm
Math
FFT Advanced
Math
220 MSO4000 and DPO4000 Series Oscilloscopes User Manual
