Trigger Setup
Trigger Coupling
Trigger coupling determines what part of the
signal is passed to the trigg er circuit. Edge
triggering can use all available coupling types:
DC, Low Frequency Rejection, High Frequency
Rejection, and Noise Rejection. All other
trigger types use DC coupling only.

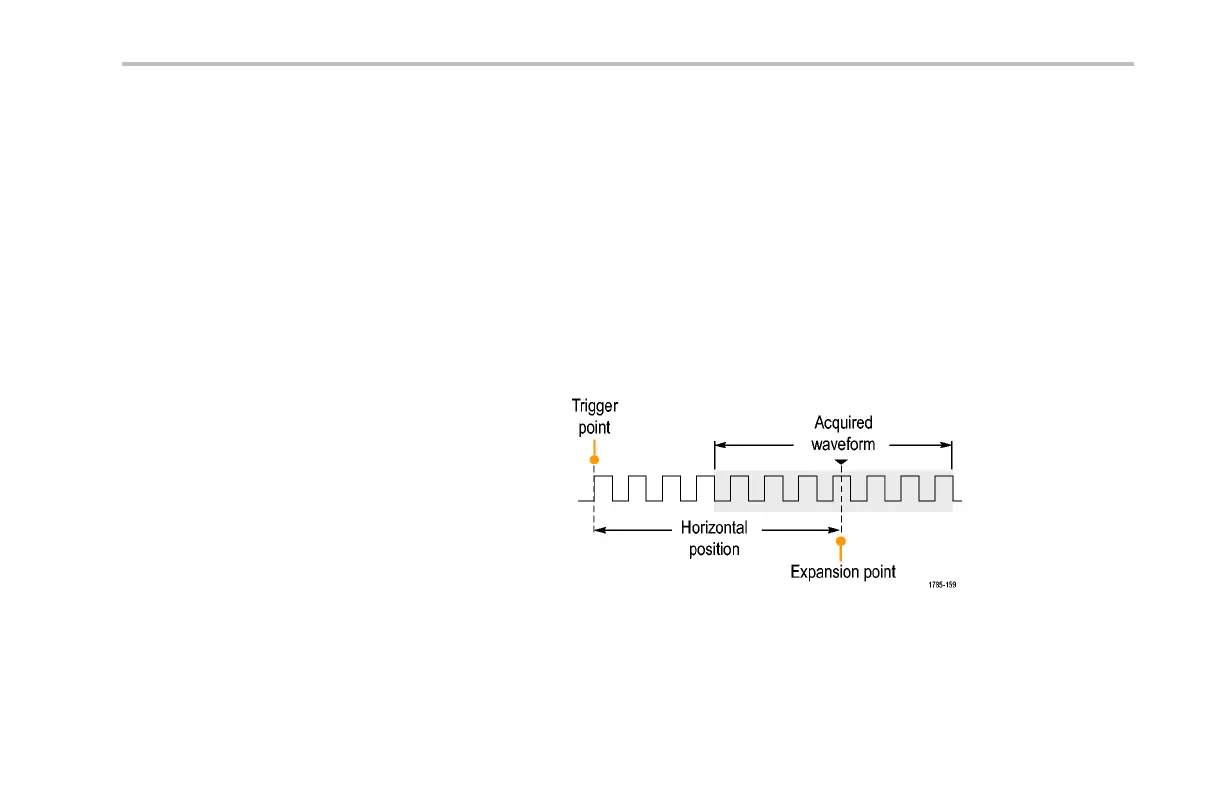

Horizontal Position
When Delay M ode is on, use horizontal
position to acquire waveform de tail in a region
that is separated fro m the trigger location by a
significant interval of tim e.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 133
