Display Waveform Data
Quick Tips
Variable persistence accumulates record points for a s pecified time interval. Each record point decays independently according
to the time interval. Use variable pe rsist ence for displaying infrequently appearing signal anomalies, su ch as glitches.
Infinite persistence continuously accumulates record points until you change one of the acquisition display settings. Use infinite
persistence for displaying unique signal anomalies, such as glitches.
The X Y Display mode graphs the data in fixed pairs of waveforms against one another. You can use CH1 versus CH2, and
REF1 versus REF2. On four-chann el models, you can also use CH3 versus CH4, and REF3 versus REF4.
When the XY Display is on, an up per window appears that displays data versus time.
Setting the Graticule Style

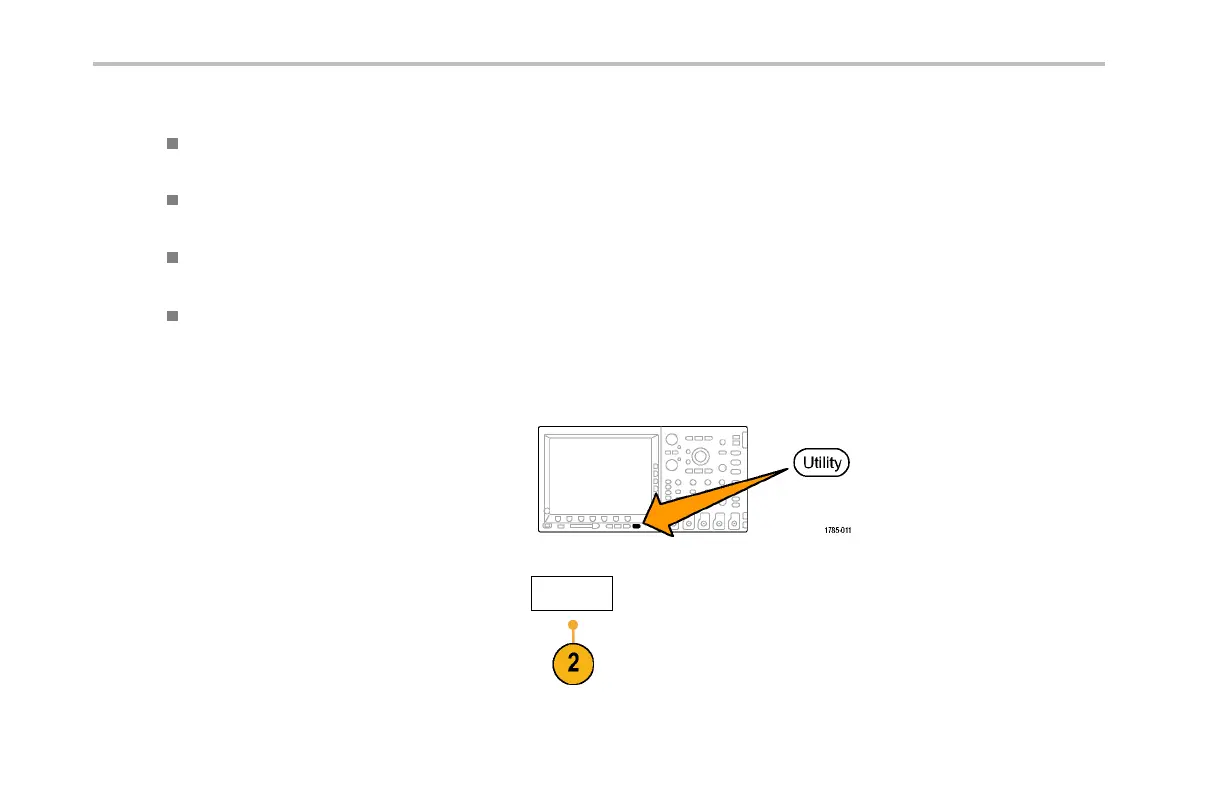

1. To set the graticule style, push Utility.
2. Push Utility Page.
Utility Page
164 MSO4000 and DPO4000 Series Oscilloscopes User Manual
To Next Page
