Application E xamp les

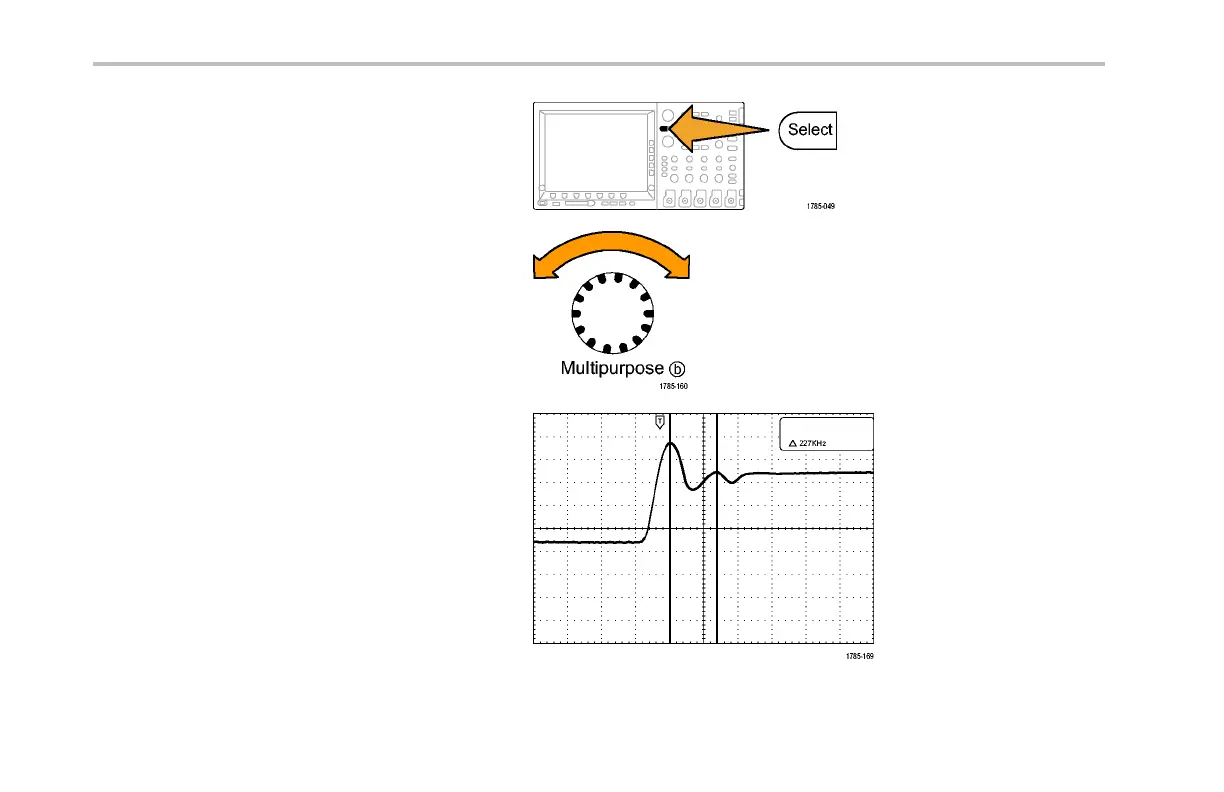

7. If the cursor readout says that the cu rsors are
linked, push Select to unlink them.
8. Place the other cursor on the next peak of the
ring using multipurpose knob b.
9. The cursor Δ readout shows the measured
ring frequency is 227 kHz.
290 MSO4000 and DPO4000 Series Oscilloscopes User Manual
