Application E xamp les

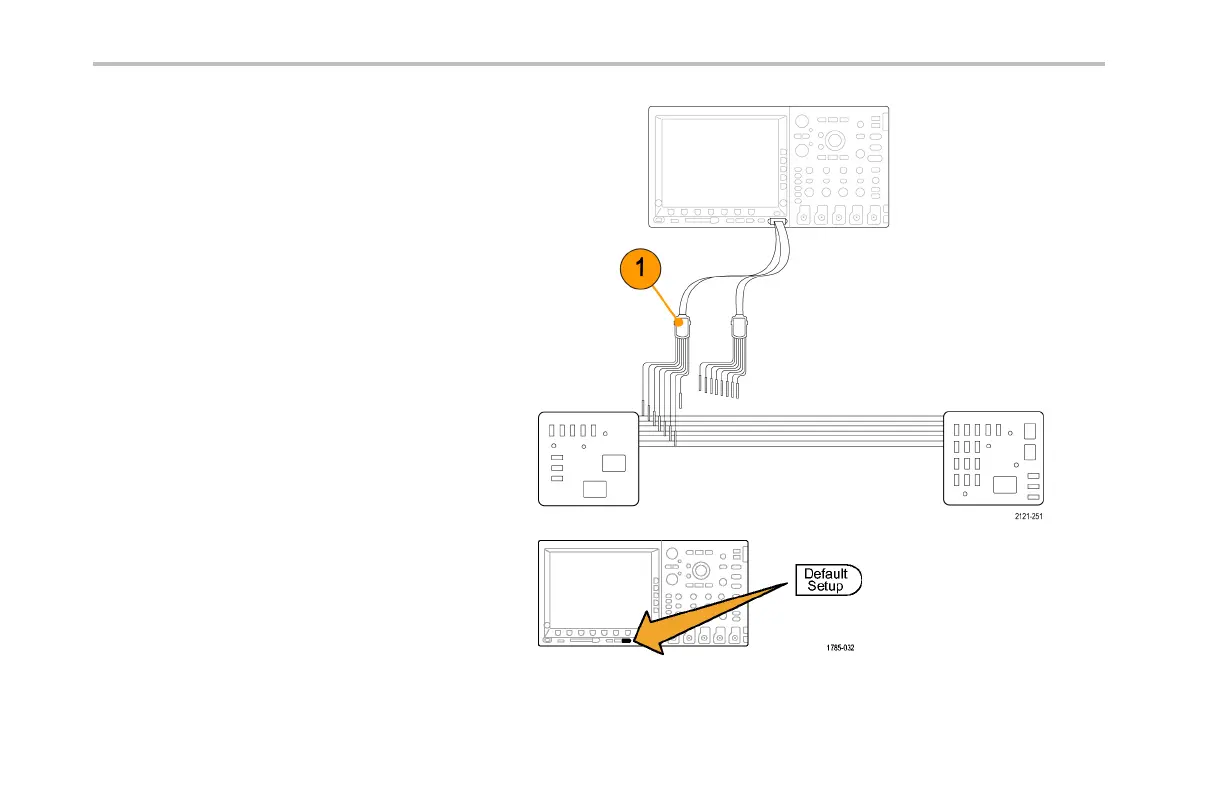

1. Connect the desired logic probe tips to the
desired test p oints. Fo r simplicity, this examp le
connects to a 7-bit counter.
2. Push Default Setup. Then push the channel
1 button to remove the waveform from the
display.
310 MSO4000 and DPO4000 Series Oscilloscopes User Manual
