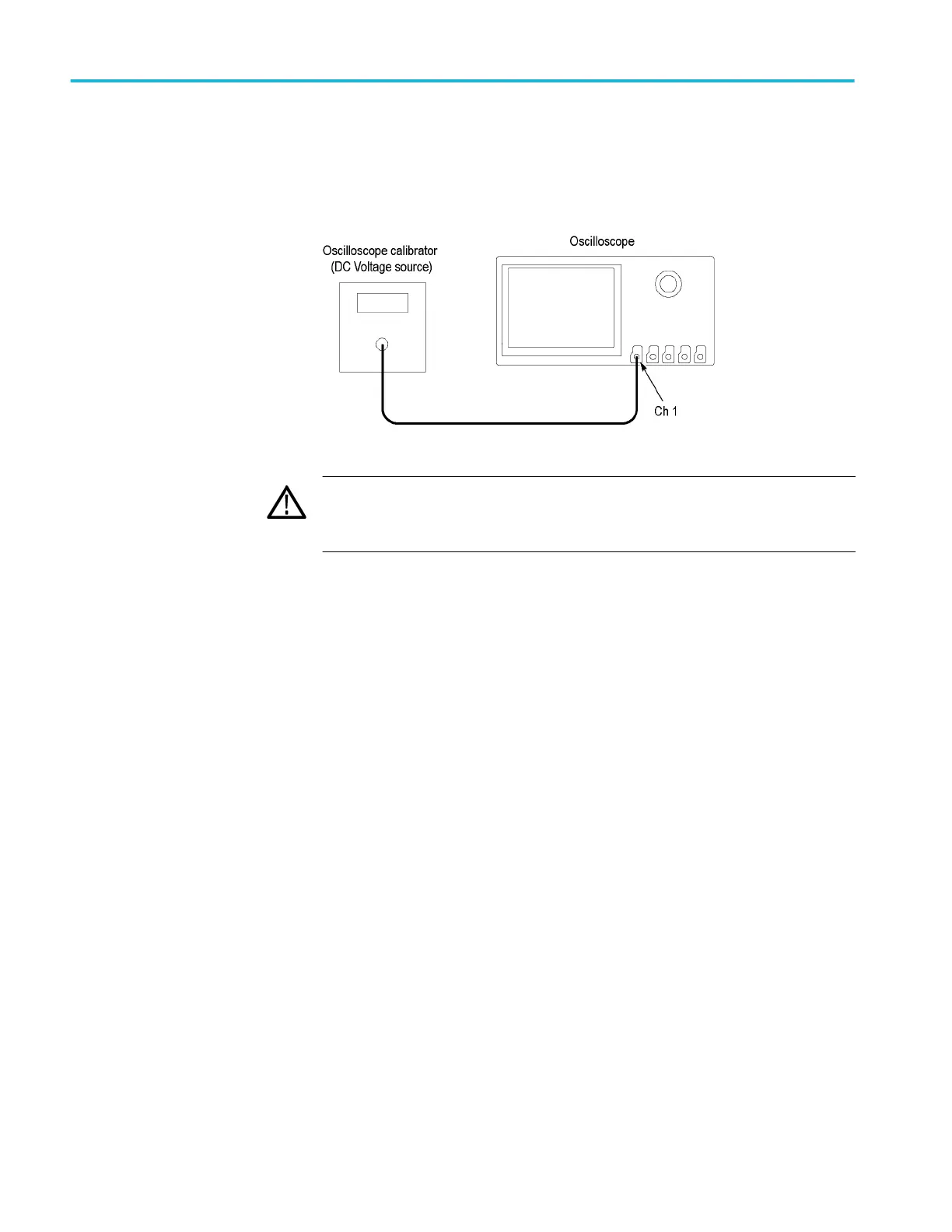

1. Connect the oscilloscope to a DC voltage source. If you are using the Fluke
9500B calibrator as the DC voltage source, connect the calibrator head to the
oscilloscope channel 1.
WARNING. The generator is capable of providing dangerous voltages. Be
sure to set the generator to off or 0 volts before connecting, disconnecting,
and/or moving the test hookup during the performance of this procedure.
2. Push the front-panel Default Setup button.
3. Set the impedance to 50 Ω as follows:
a. Set the calibrator to 50 Ω output impedance.
b. Push the front-panel oscilloscope Vertical V menu button.
c. Set the Termination to 50 Ω.
4. Set the calibrator to 900 mV, as shown in the test record.
5. Set the Bandwidth to 20 MHz.
6. Set the Horizontal Scale to 1 ms/div.
7. Set the Vertical Scale to 1 mV/div.
8. In the Vertical menu, set the oscilloscope Vertical Offset to 900 mV.
9. Check that the vertical position is set to 0 divisions. If it is not, turn the
Vertical Position knob to set the position to 0.
10. Set the Acquisition mode to Average as follows:
a. Push the front-panel Acquire button.
b. In the Acquisition window, select the Acquisition tab at the left.
c. Click Average Acquisition mode.
d. Ensure that the number of averages is set to 16.
Performance verification (MSO/DPO5000/B series)
324 MSO70000C/DX, DPO70000C/DX, DPO7000C, MSO5000/B, DPO5000/B Series
