Display a Wavefo
rm
Hide Waveforms in the Zoomed Window

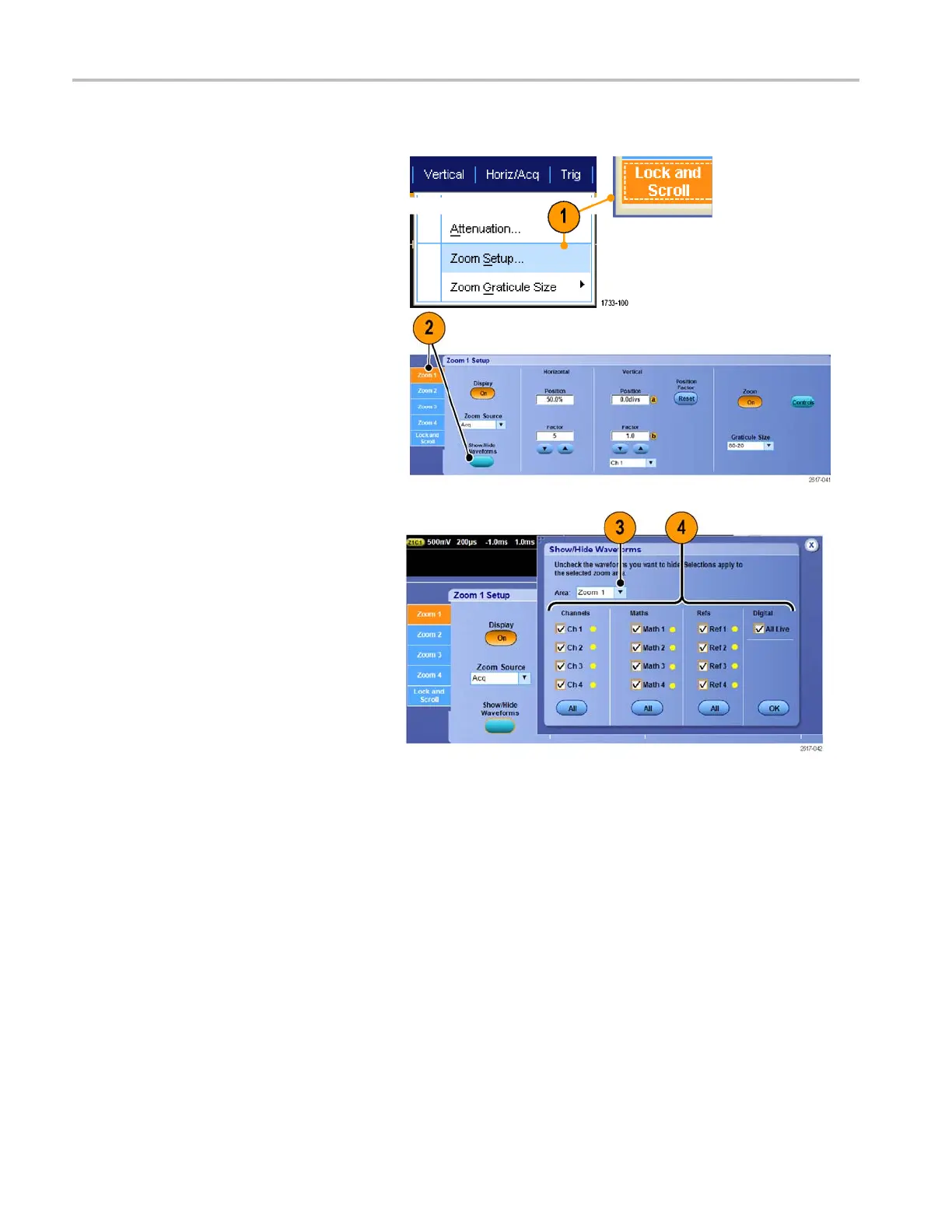

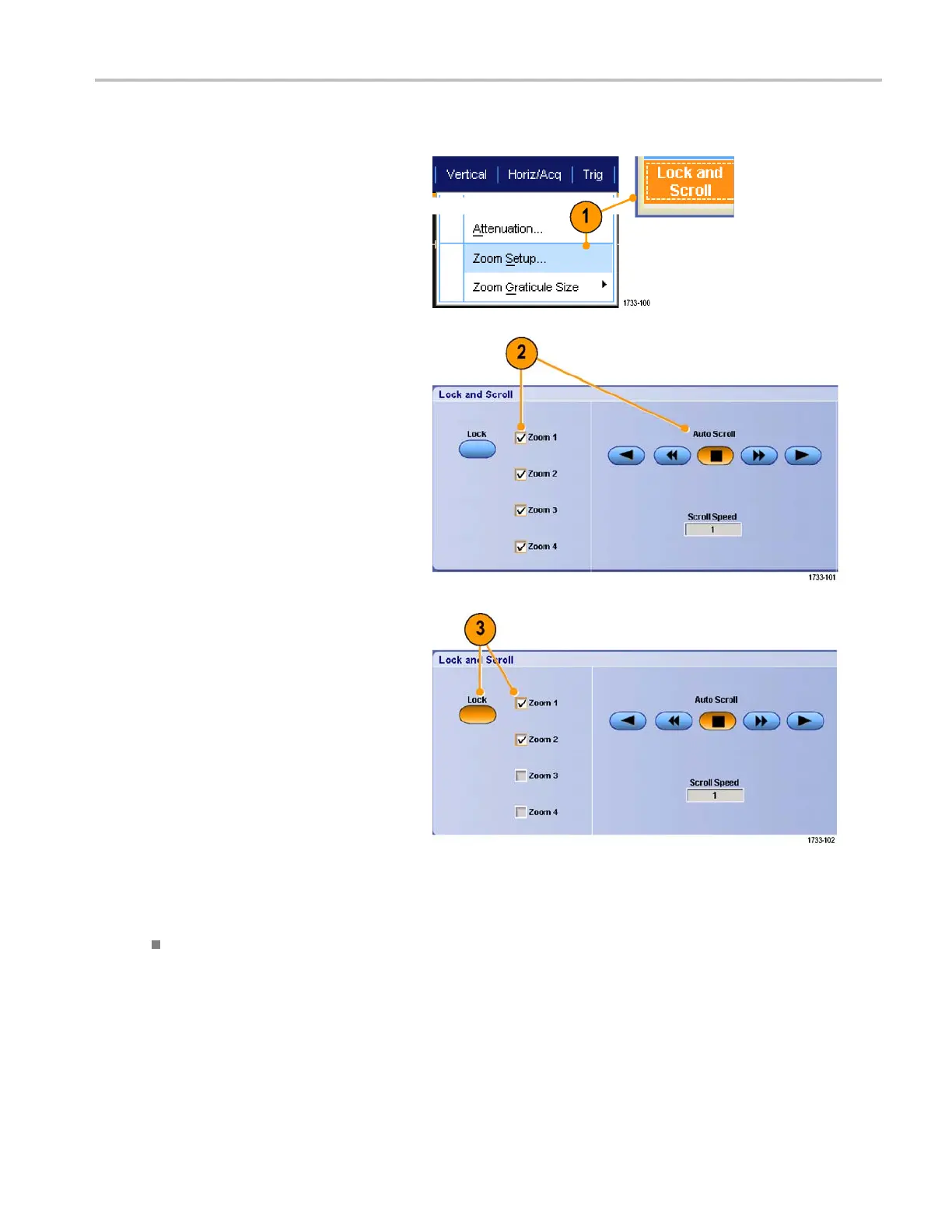

1. To hide or view
waveforms, select Zoom
Setup... from either the Vertical or
Horiz/Acq menu.
2. Select a Zoom tab, and then press
Show/Hide Wa
veforms.
3. Select the zoomed area that contains
the waveform you want to show or hide.
4. Uncheck the channel, math, reference,
or digital waveform you want to hide.
Digital channels are only a vailable on MSO
Series instruments.
