Acquisition
Viewing Analog Characteristics of Digital Waveforms
iCapture allows you to view the analog characteristics of digital channel signals. Additional measurement capabilities are
available while viewing the analog characteristics of a waveform. iCapture is available on MSO 70000/C Series instruments.

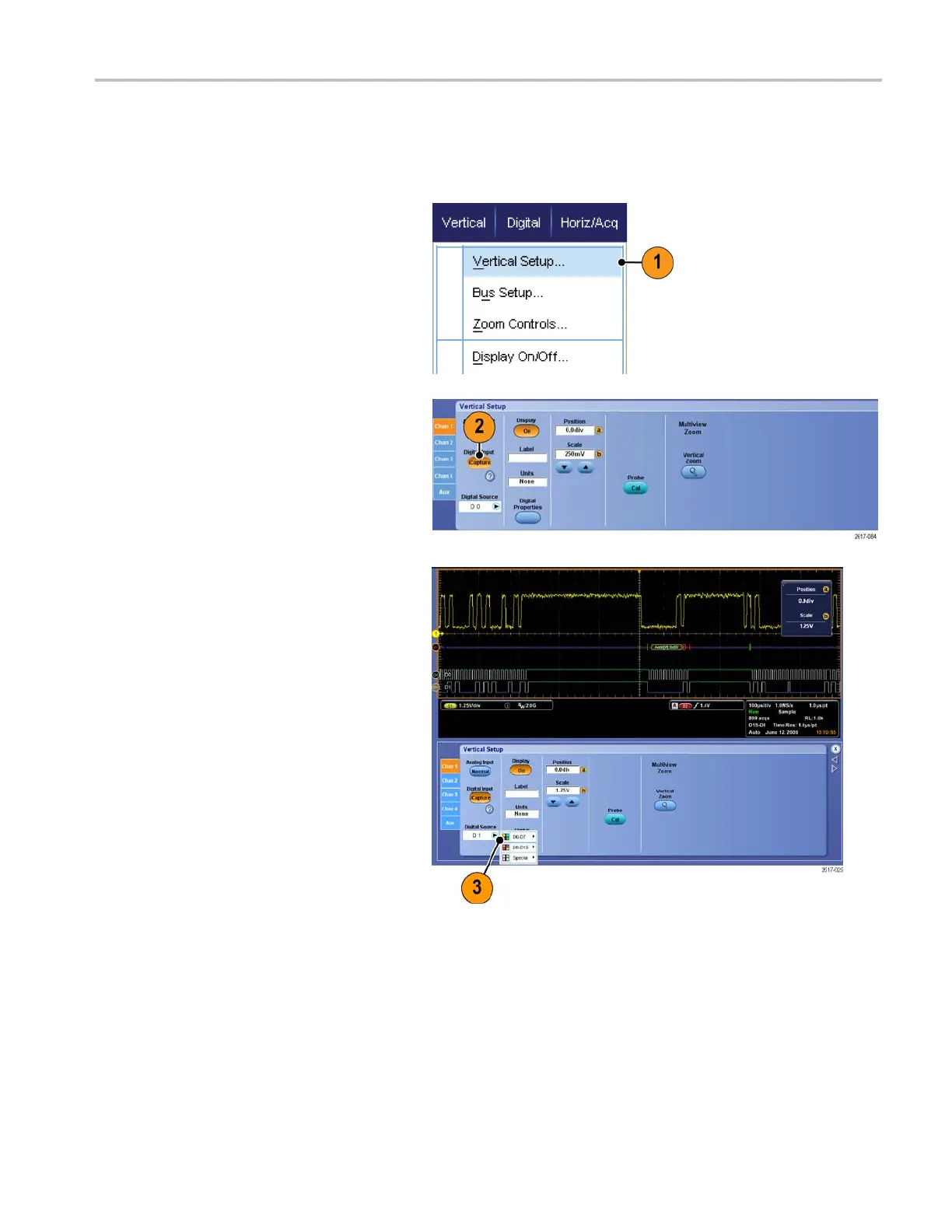

1. Select Vertical > Vertical Setup.
2. Press the D
igital Input iCapture button.
3. Click Di
gital Source and select a digital
channel to send through the analog
input.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 57
