Acquisition

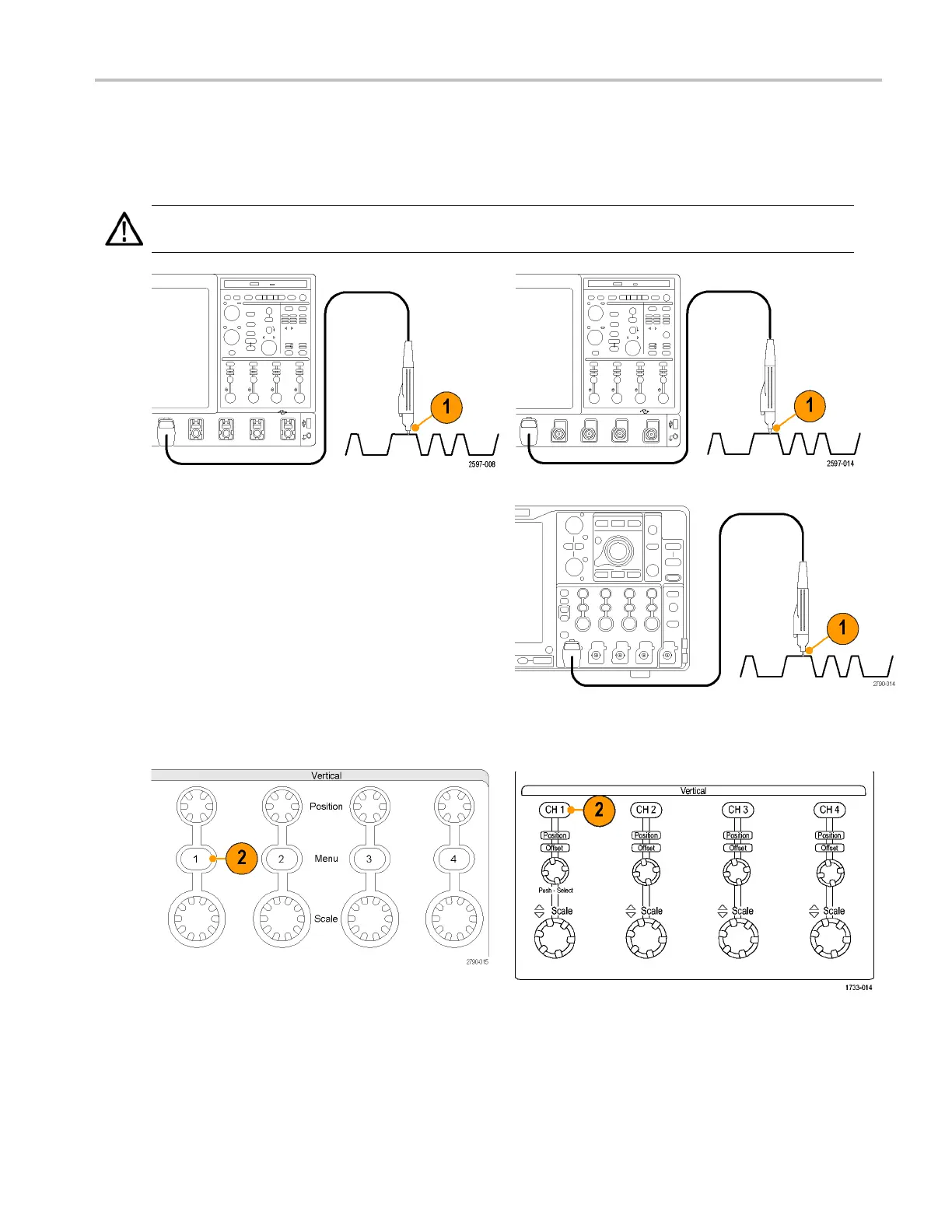

Setting Up Analog Signal Input
Use front-panel buttons to set up your instrument to acquire the signal.
1. Connect the probe to the input signal source.
CAUTION. To prevent damage to the instrument, always wear an antistatic wrist strap when making connections to the
instrument and observe the maximum input voltage ratings for input connectors.
MSO70000/C, DSA70000B/C, and DPO70000B/C Series DPO7000 Series
MSO5000 and DPO5000 Series
2. Select the input channel by pushing the front-panel buttons to toggle the channels o n and off.
MSO5000 a nd DPO5000 Series
MSO70000/C, DSA70000B/C, DPO70000 B/C, and DPO7000
Series
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 31
