Install Your Ins
trument
Adding a Second Monitor
Yo u can operate the instrument while using Windows and installed applications on an external monitor. Follow the procedure
below to set up a dual monitor configuration.
MSO70000/C, DSA70000C, and DPO70000C Series

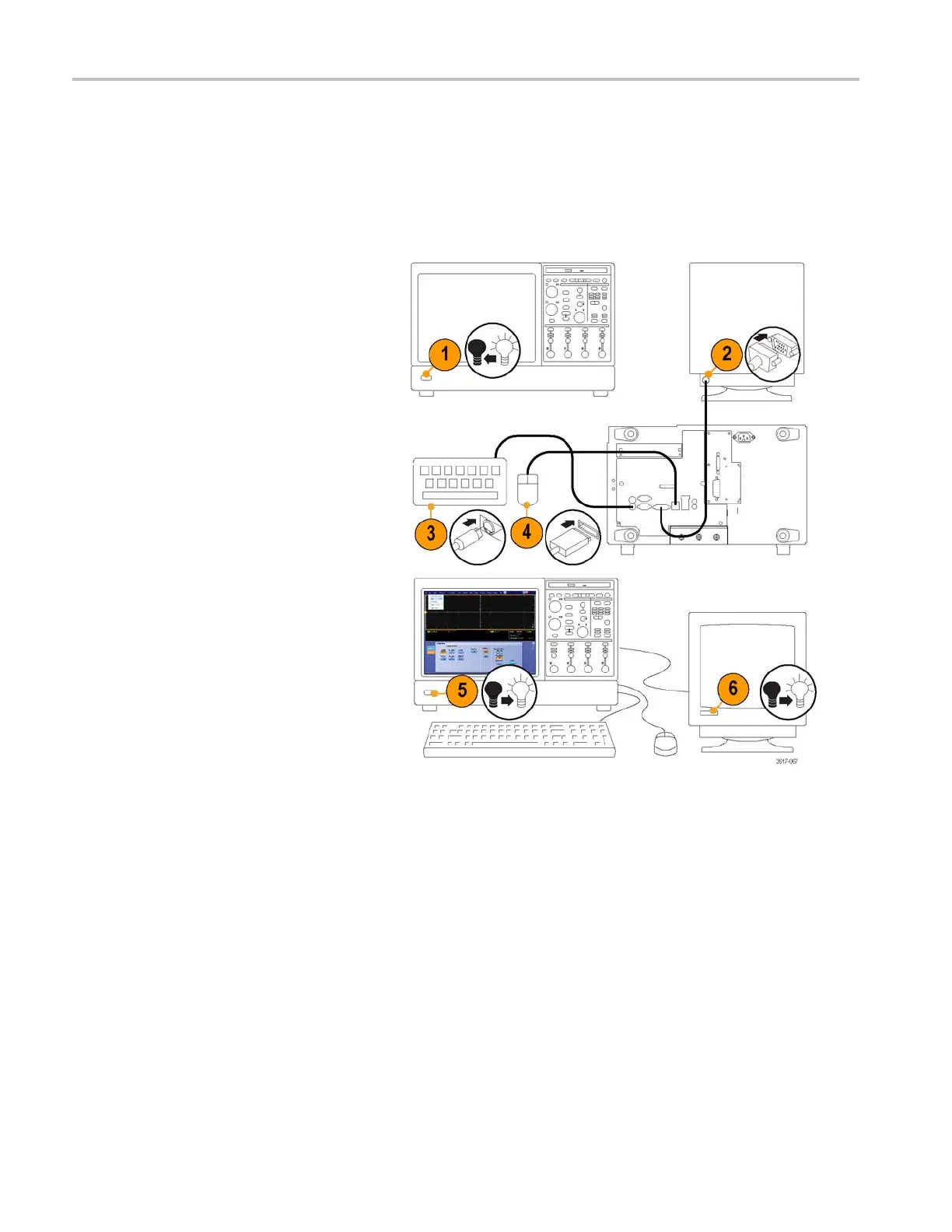

1. Turn power off.
2. Connect second monitor. If using a VGA
monitor, use a DVI to VGA adapter.
3. Connect keyboard.
4. Connect mouse.
5. Turn instrument power on.
6. Turn monitor power on.
MSO70000/C, DSA70000C, and DPO70000C S eries
10 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
